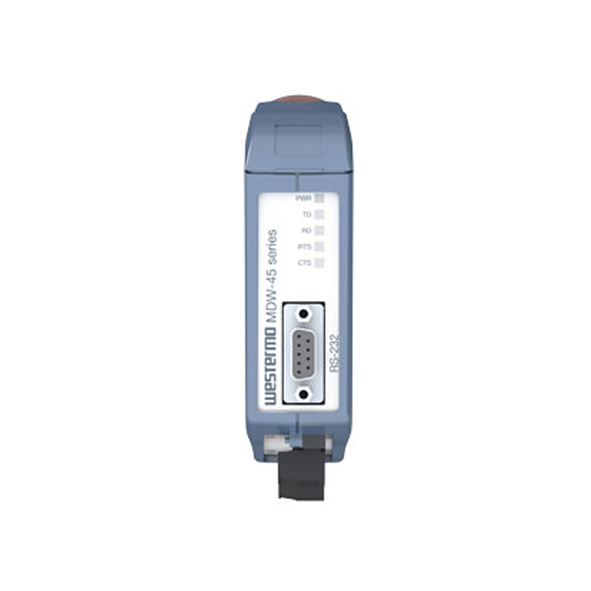

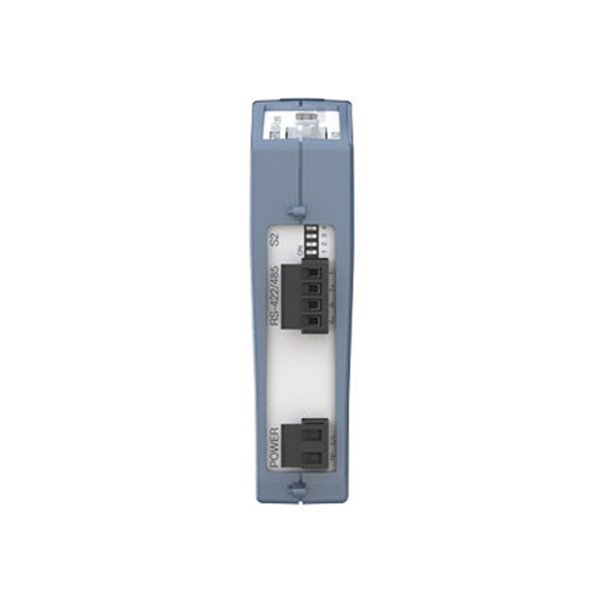

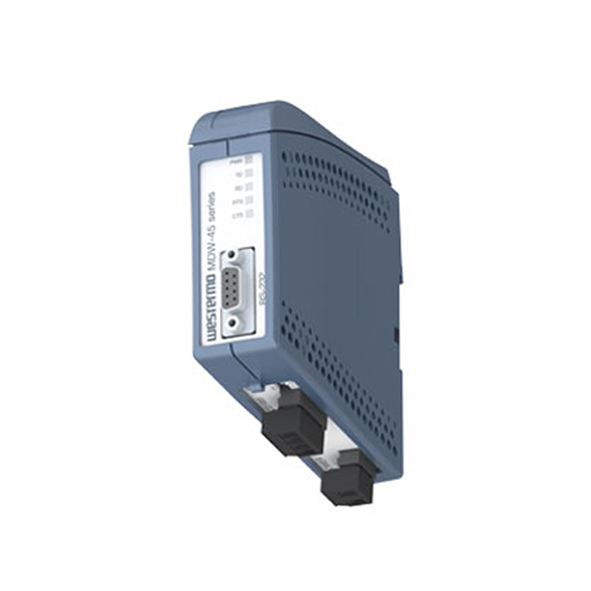

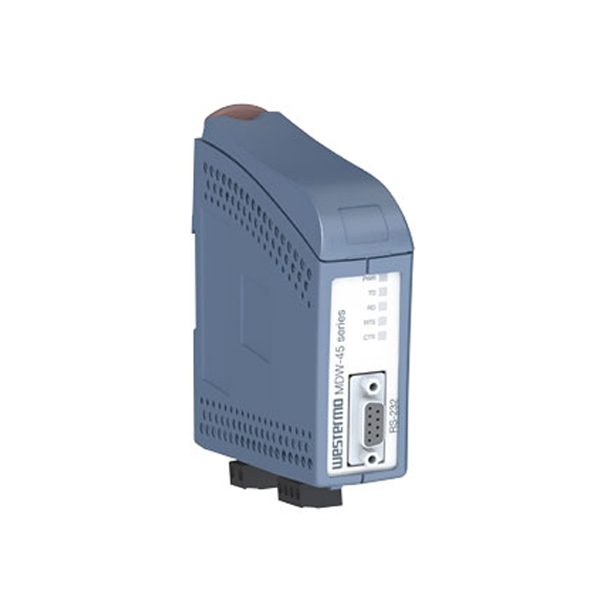

Name: Westermo MDW-45 LV Industrial RS-232 to RS-422/485 Converter
Brand: WESTERMO
Availability: OutOfStock

Westermo MDW-45 LV Industrial RS-232 to RS-422/485 Converter

1 x RS-232 Port (9-pin D-sub, 1200 bit/s to 115.2 kbit/s)
1 x RS-422/485 Port (4-position detachable screw terminal, 300 bit/s to 115.2 kbit/s)
Purpose-built DIN rail casing with integral clip
IP21-rated PC / ABS body material design
9.6 to 57.6 VDC power input with Total galvanic isolation
-40 to +70°C operating temperature range

Brand: WESTERMO
Model: 3617-0001

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 70°C)
Relative Humidity (5% to 95% RH)
IP protection (IP21)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)

Railway Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

Beijer BoX2 base protocol converter-IoT gateway-edge controller

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer BoX2 extreme protocol converter-IoT gateway-edge controller

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer BoX2 pro SC protocol converter-IoT gateway-edge controller

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer iX T7B-SM graphic touch marine HMI

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer X2 extreme 12 HP SC Rugged HMI

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer X2 extreme 15 HP Rugged HMI

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Beijer X2 extreme 7 SL HP Rugged HMI

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Media Converters , Serial Converters & Repeaters , Serial Converters , Converters , Repeaters , Industrial Data Communications , Industrial Media Converters , Railway Transportation Products , Westermo MDW-45

The MDW-45 is a simple serial converter allowing RS-232 and RS-422/RS-485 systems to be connected. DIP switches are used for all configuration options, which makes the unit simple to install. The MDW-45 is designed for use in heavy-duty industrial applications. The wide power range, galvanic isolation, transient protection, and the design of the termination and fail-safe guarantees communication in the worst environments. Only industrial-grade components are used, which gives the MDW-45 an MTBF of 1,000,000 hours and ensures a long service life. A wide operating temperature range of –40 to +70°C (–40 to +158°F) is achieved using no moving parts.

The MDW-45 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications. The configurable design of the converter makes the MDW-45 suitable for a variety of applications with various speeds and data bit options. Normally RS-485 data direction is controlled by the RS-232 handshaking lines however the MDW-45 also features an automatic turning time function allowing the unit to operate in any application.

You can also find the MDW-45 HV, EDW-100, and EDW-120 models in the Serial Converters and Repeaters.

Experience the convenient way to purchase the Westermo MDW-45 LV Industrial RS-232 to RS-422/485 Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

serial-to-ethernet : Interface
10/100Mb RJ45 (Megabit) Ports	No
100BaseFX Ports	No
Digital Input Channels	No
Alarm Contact Channels	No
Magnetic Isolation Protection	No
Protocols	No
serial-to-ethernet : Serial Interface
Number of Ports	2 Ports
Serial Standards	RS-232, RS-422/485
Connector	9-pin D-sub male (DTE), 4-position detachable screw terminal
Console Port	No
serial-to-ethernet : Serial Communication Parameters
Baudrate	1 200 bit/s – 115.2 kbit/s
Data Bits	7 or 8
Stop Bits	1 or 2
Parity	Odd, Even or None
Flow Control	-
Isolation	-
serial-to-ethernet : Serial Signals
RS-232	-
RS-422	-
RS-485-4w	-
RS-485-2w	-
serial-to-ethernet : Communication details
Wireless Standards	-
Maximum data transfer speed	-
Maximum direct range	-
serial-to-ethernet : General
Management	-
Compatible operating systems	-
Fixed TTY Drivers	-
Linux Real TTY Drivers	-
MTBF	MIL-HDBK-217K: 1,000,000 hours
Automatic Reboot Trigger	-
serial-to-ethernet : Power Requirements
Connection	Detachable screw terminal
Input Voltage	12 to 48 VDC
Input Current	95 mA @ 12 VDC, 35 mA @ 48 VDC
serial-to-ethernet : Security
Security	No
Encryption	No
Authentication	No
serial-to-ethernet : Features and capabilities
Display	No
serial-to-ethernet : Physical Characteristics
Dimensions	34 x 123 x 122 mm (1.34 x 4.84 x 4.80)
Installation	DIN-rail mounting
Standards and Certifications	EMC: EN 61000-6-2, Electromagnetic compatibility – Immunity for industrial environments, EN 61000-6-4, Electromagnetic compatibility – Emission standard for industrial environments; Shock: IEC 60068-2-27; MIL-HDBK-217K; IP21
Housing	PC / ABS
Operating Temperature	-40 to +70°C (-40 to 158°F)
Storage Temperature	-40 to +70°C (-40 to 158°F)
Operation Humidity	5 to 95% relative humidity
Weight	0.19Kg
