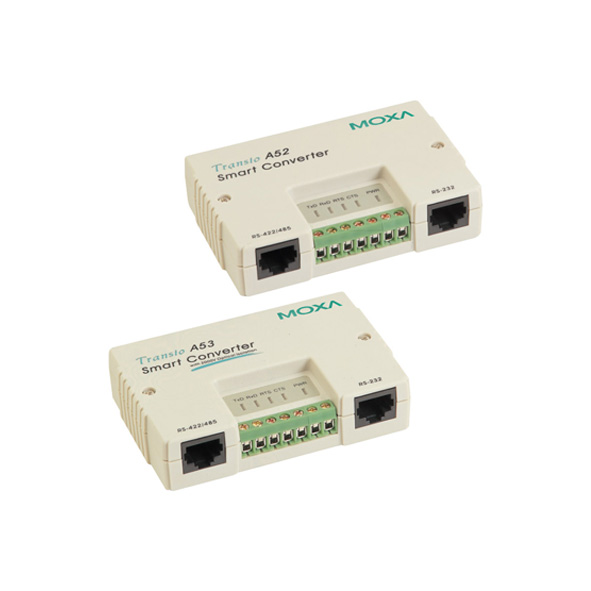

Name: MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter
Brand: MOXA
Availability: InStock

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

2 x RS-232/422/485 Serial Ports (10-pin RJ45 connector)
2 KV Isolation protection for serial ports
9 to 30 VDC input power range
IP30-rated Plastic housing
Desktop installation
0 to 55°C operating temperature
DB9F Serial cable

Brand: MOXA
Model: A53-DB9F w/o Adapter

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 55°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)
Vibration (IEC 60068-2-6)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Serial Converters , Serial-to-Serial Converters , Industrial Serial Connectivity , Industrial Converters , Industrial Media Converters , RS-232 to RS-422/485 Converters , RS-232 to RS-422 Converters , RS-232 to RS-485 Converters , Converters , MOXA Transio A52/A53 Series

The A52 and A53 are general RS-232 to RS-422/485 converters designed for users who need to extend the RS-232 transmission distance and increase networking capability.

You can also find the A53-DB9F w/ Adapter and A52-DB9F w/o Adapter models in the Industrial Media Converters.

Easy World Automation offers the easiest way to buy the MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman) at the lowest price through online inquiring. Our sales experts will get in touch with you to fulfill all your industrial automation needs.

converter : Interface
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
Serial port	Yes : 2 x RS-232/422/485 Ports (10-pin RJ45 connector)
USB	No
Other ports	No
Isolation	Yes : 2 KV
converter : Converter specifications
Data transfer speed ( Baudrate )	Automatic baudrate detection
Maximum data transmission distance	-
Minimum output power converter	-
Sensitivity to receiving information	-
Wavelength	-
Require cable diameter	-
Flow Control	RTS/CTS
Protocols	-
converter : Serial Signals
RS-232 Signals	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422 Signals	Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND
RS-485-2w Signals	Data+, Data-, GND
RS-485-4w Signals	Tx+, Tx-, Rx+, Rx-, GND
converter : Power Requirements
Power Consumption (Output Adapter)	195 mA @ 9 VDC
Power Input Plugin ( Redundant )	No
Overload Current Protection	Supported
Reverse Polarity Protection	No
Input Voltage	9 to 30 VDC
Input Current	195 mA @ 9 VDC
Connector	Power input jack
converter : General
Fan / Fanless	-
MTBF	1,870,854 hrs
converter : Physical Characteristics
Dimensions	90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in)
Housing	Plastic
Installation	Desktop
Operating Temperature	0 to 55°C (32 to 131°F)
Operation Humidity	5% to %95 RH non-condensing
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-20 to 75°C (-4 to 167°F)
Weight	85 g (0.19 lb)
converter : LED Indicators
LED Per Port	Yes
Power	Yes
