Operating Temperature (0 to 55°C)
Relative Humidity (5 to 95% non-condensing).png)
IP protection (IP30)

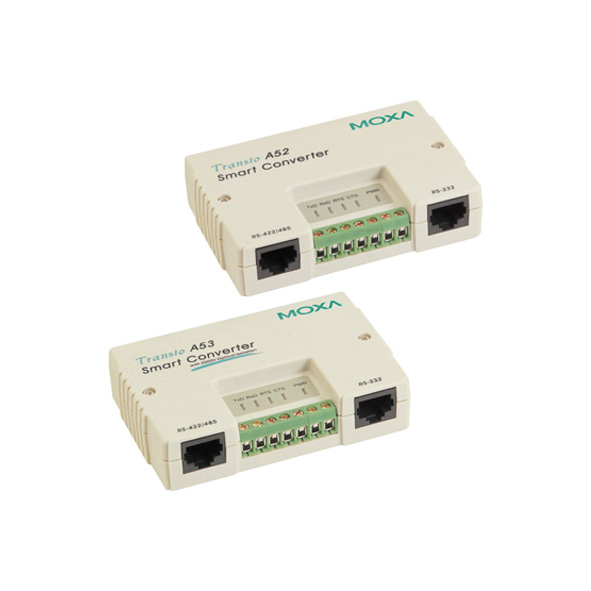

Vibration (IEC 60068-2-6)The A52 and A53 are general RS-232 to RS-422/485 converters designed for users who need to extend the RS-232 transmission distance and increase networking capability.
You can also find the A52-DB9F w/ Adapter and A53-DB9F w/ Adapter models in the Industrial Media Converters.
Inquire
about the MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter, designed for industrial automation solutions. Feel free to
get in touch with our
sales team to give you the best solutions at the best global price in the Middle
East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
| converter : Interface | |
| 100Mb Fiber optic single mode (Megabit) Ports | No |
| 100Mb Fiber optic multi mode (Megabit) Ports | No |
| Serial port | Yes : 2 x RS-232/422/485 Ports (10-pin RJ45 connector) |
| USB | No |
| Other ports | No |
| Isolation | No |
| converter : Converter specifications | |
| Data transfer speed ( Baudrate ) | Automatic baudrate detection |
| Maximum data transmission distance | - |
| Minimum output power converter | - |
| Sensitivity to receiving information | - |
| Wavelength | - |
| Require cable diameter | - |
| Flow Control | RTS/CTS |
| Protocols | - |
| converter : Serial Signals | |
| RS-232 Signals | TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND |
| RS-422 Signals | Tx+, Tx-, Rx+, Rx-, RTS+, RTS-, CTS+, CTS-, GND |
| RS-485-2w Signals | Data+, Data-, GND |
| RS-485-4w Signals | Tx+, Tx-, Rx+, Rx-, GND |
| converter : Power Requirements | |
| Power Consumption (Output Adapter) | 170 mA @ 9 VDC |
| Power Input Plugin ( Redundant ) | No |
| Overload Current Protection | Supported |
| Reverse Polarity Protection | No |
| Input Voltage | 9 to 30 VDC |
| Input Current | 170 mA @ 9 VDC |
| Connector | Power input jack |
| converter : General | |
| Fan / Fanless | - |
| MTBF | 1,870,854 hrs |
| converter : Physical Characteristics | |
| Dimensions | 90 x 60 x 21 mm (3.54 x 2.36 x 0.83 in) |
| Housing | Plastic |
| Installation | Desktop |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Operation Humidity | 5% to %95 RH non-condensing |
| Standards and Certifications | EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB |
| Storage Temperature | -20 to 75°C (-4 to 167°F) |
| Weight | 85 g (0.19 lb) |
| converter : LED Indicators | |
| LED Per Port | Yes |
| Power | Yes |
