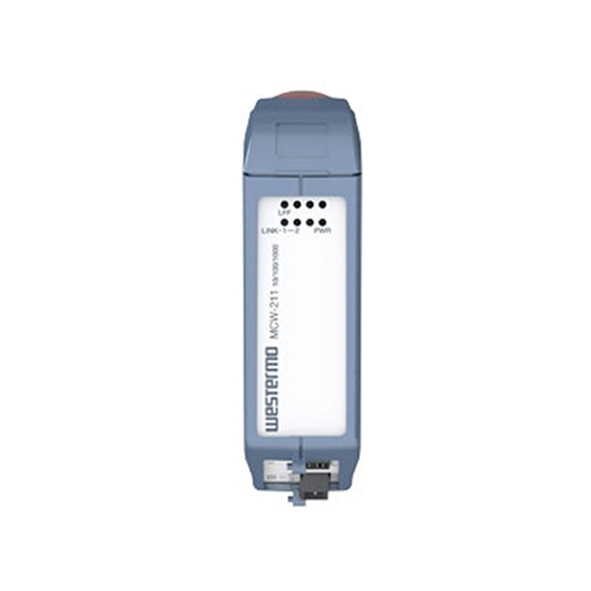

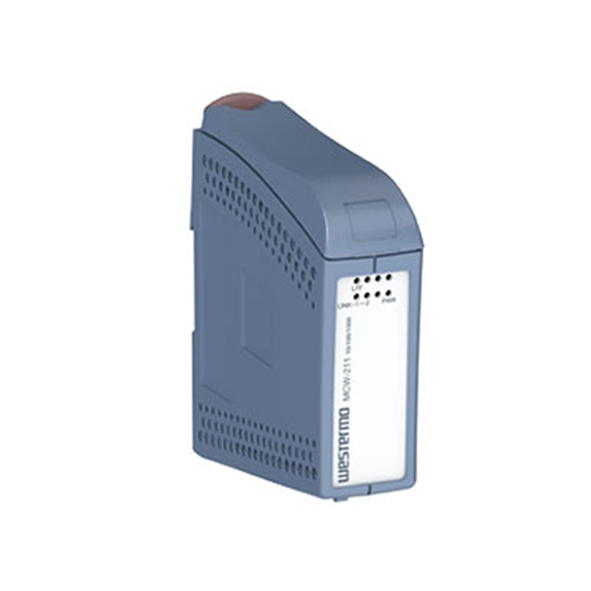

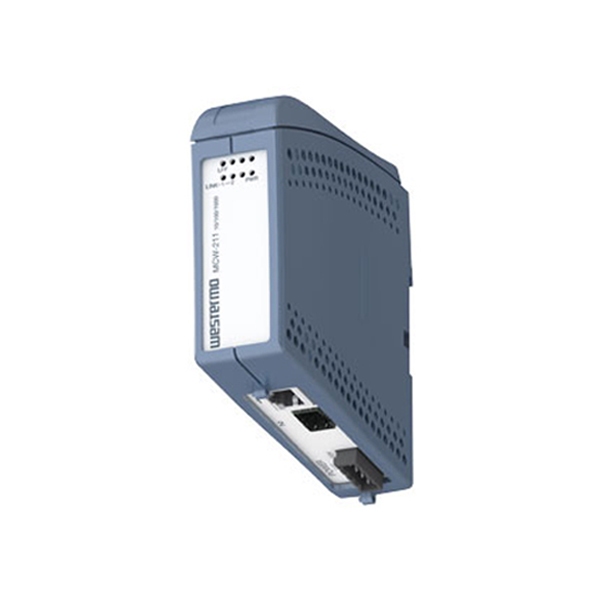

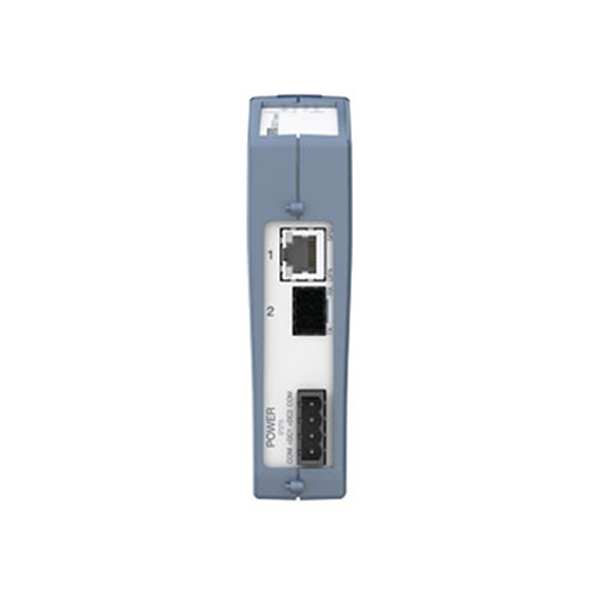

Westermo MCW-211-F1G-T1G Industrial Ethernet to Fiber Media Converter

Industrial Gigabit Ethernet Media Converter
1 x 10 Mbit/s, 100 Mbit/s or 1 Gbit/s Ethernet TX Port (RJ-45 connector)
1 x 100 Mbit/s or 1 Gbit/s SFP Port (LC connector, transceivers supported)
Up to 120 KM Typical data transmission distance on fiber
DIN-rail mount installation design
IP21-rated Plastic body material design
Dual 9.6 – 57.6 VDC power input with Total galvanic isolation
-40 to +74°C operating temperature range

Brand: WESTERMO
Model: 3645-2001

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 74°C)
Relative Humidity (5% to 95% RH)
IP protection (IP21)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)

Railway Transportation
Road Transportation
Marine

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

Tags: Media Converters , Ethernet Media Converters , Converters , Industrial Data Communications , Industrial Media Converters , Marine Products , Road Transportation Products , Railway Transportation Products , Westermo MCW-211-F1G-T1G

The MCW-211-F1G-T1G is an unmanaged media converter with one SFP fibre port supporting 100 Mbit/s or Gbit Ethernet, and one copper port supporting 10/100 Mbit/s or Gbit Ethernet. It is designed for use in heavy-duty industrial, maritime, and rail trackside applications. The unit supports 802.1Q long packets, which allow all standard industrial Ethernet protocols to be used. The Westermo range of 100 Mbit or Gbit Small Form-factor Pluggable (SFP) transceivers is available as multimode, single-mode, or Bi-Di transceivers with distances up to 120 km.

The MCW-211-F1G-T1G is designed for use in industrial applications with dual 9.6 to 57.6 VDC power input. The unique “tri-galvanic” isolation provides isolation between the ports and the power supply and avoids ground loop currents. The IP21 rating ensures that the unit can be installed in locations where condensed water may occur.

Only industrial-grade components are used, which gives the MCW-211-F1G-T1G an MTBF of 1.426.000 hours and ensures a long service life. A wide operating temperature range of –40 to +74 °C (–40 to +165 °F) can be achieved with no moving parts. The MCW-211-F1G-T1G has been tested both by Westermo and external test houses to meet EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial, trackside, and maritime environments.

The link fault forward function helps to transfer indications of media failure onto connected ports to ensure that the MCW211-F1G-T1G can be used in resilient network structures. Data rate and flow control can be locked by a DIP switch which can eliminate problems with old legacy Ethernet equipment that is unable to support auto-negotiation.

You can also find the other types of converters in the Converters.

Enjoy the ease of online inquiries for the Westermo MCW-211-F1G-T1G Industrial Ethernet to Fiber Media Converter. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

eth to fiber : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port (or 10 Mbit/s or 100/100 Mbit/s)
10/100/1000Mb RJ45 (Gigabit) Ports	Yes : 1 Port (or 10 Mbit/s or 100 Mbit/s)
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
1000Mb Fiber optic multi mode (Gigabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
1000Mb Fiber optic single mode (Gigabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	Yes : 1 LC Port (or 100 Mbit/s)
M12 port	No
Alert Output	No
Magnetic Isolation Protection	No
eth to fiber : Standards and protocols
Protocols and work standards	IEEE 802.3 ,802.1Q
eth to fiber : General
Maximum cable length for data transfer	120 Km with Bi-Di Optical Fiber Optic Module
MTBF	MIL-HDBK-217F-N2: 1.426.000 hour
eth to fiber : Power Requirements
Input Voltage	-
Input Current	12 – 48 VDC; 140 – 39 mA
Overload Current Protection	-
Type of power input	Detachable screw terminal
Power Consumption	-
eth to fiber : Physical Characteristics
Standards and Certifications	EMC: EN 50121-4, Railway applications – Electromagnetic compatibility – Emission and immunity of the signalling and telecommunications apparatus, EN 61000-6-1, Immunity residential environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments; Safety: UL 60950-1, IT-equipment; Environmental: NEMA TS 2, Traffic Controller Assemblies with NTCIP Requirements; IP21; MIL-HDBK-217F-N2; Vibration: IEC 60068-2-6 (sine); Shock: IEC 60068-2-27
Housing	Plastic
Dimensions	34 x 123 x 121 mm (1.33 x 4.84 x 4.76 in)
Weight	0.25Kg
Operating Temperature	–40 to +74 ºC (–40 to +165 ºF)
Storage Temperature	–50 to +85 ºC (–58 to +185 ºF)
Operation Humidity	5 to 95 % (non-condensing)
Installation	Din-rail mounting
