Name: MOXA TCF-90-S-ST Serial to Fiber Converter
Brand: MOXA
Availability: OutOfStock

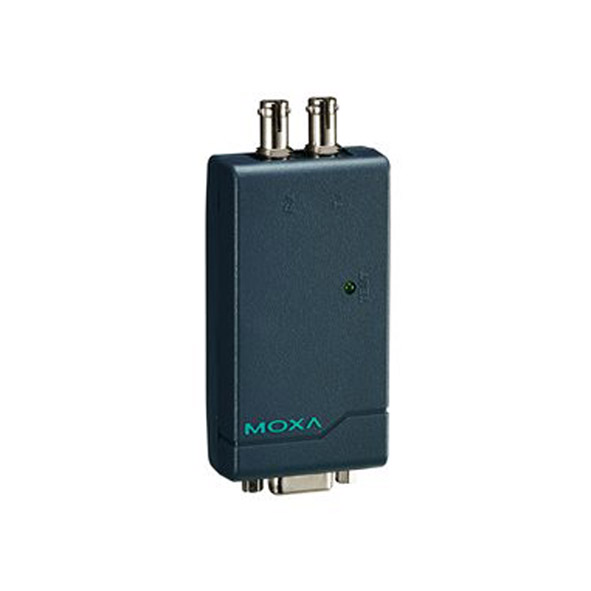

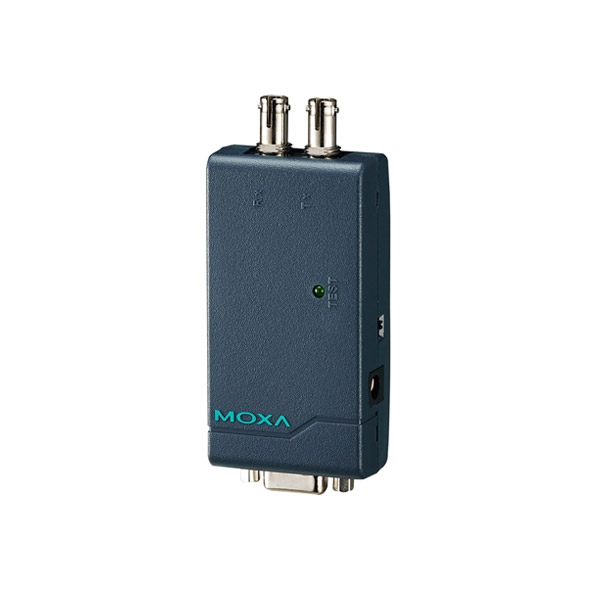

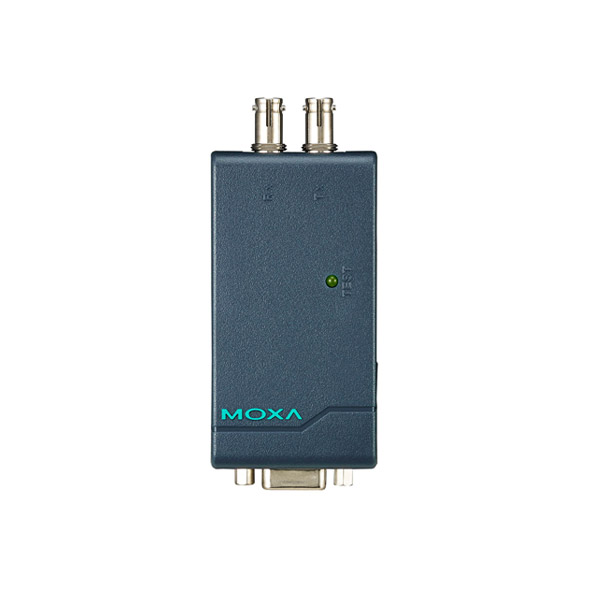

MOXA TCF-90-S-ST Serial to Fiber Converter

2 x RS-232 Serial ports (DB9 female connector)
1 x 100BaseFX single-mode (ST connector)
40 km Data transmission typical distance on fiber
IP30-rated Plastic body design
5 to 12 VDC input power range
Desktop installation design
0 to 60°C operating temperature

Brand: MOXA
Model: TCF-90-S-ST

0 reviews • Write a review

Datasheet

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
Vibration (IEC 60068-2-6)
IP protection (IP30)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Edge Connectivity , Serial Converters , Serial-to-Fiber Converters , Industrial Converters , Industrial Media Converters , Industrial Serial Connectivity , Serial Media Converters , Converters , MOXA TCF-90 Series

The TCF-90 is a compact media converter that transmits RS-232 signals over optical fiber. Power is derived from either the serial port or an external power source. The TCF-90 extends RS-232 transmission up to 5 km with multi-mode fiber or up to 40 km with single-mode fiber. A pair of TCF-90 converters can be used to connect two RS-232 devices with optical fiber in full-duplex mode. The optical fiber isolates the data signals from dangerous increases in ground potential, ground loops, and electrical EMI/RFI noise, and it enhances data security by eliminating the harmful effects of RF radiation and susceptibility to electromagnetic radiation.

You can also find the TCF-90-M-ST model in the Industrial Media Converters.

Experience the convenient way to purchase the MOXA TCF-90-S-ST Serial to Fiber Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

converter : Interface
100Mb Fiber optic single mode (Megabit) Ports	Yes : 1 ST Port
100Mb Fiber optic multi mode (Megabit) Ports	No
Serial port	Yes : 2 x RS-232 (DB9 male connector)
USB	No
Other ports	No
Isolation	No
converter : Converter specifications
Data transfer speed ( Baudrate )	300 bps to 115.2 kbps
Maximum data transmission distance	40Km on fiber
Minimum output power converter	-5dBm
Sensitivity to receiving information	-25dBm
Wavelength	1310nm
Require cable diameter	G.652
Flow Control	ADDC (automatic data direction control) for RS-485
Protocols	-
converter : Serial Signals
RS-232 Signals	TxD, RxD, GND
RS-422 Signals	-
RS-485-2w Signals	-
RS-485-4w Signals	-
converter : Power Requirements
Power Consumption (Output Adapter)	5 to 12 VDC, 20 mA (max.)
Power Input Plugin ( Redundant )	No
Overload Current Protection	Supported
Reverse Polarity Protection	No
Input Voltage	5 to 12 VDC
Input Current	5 to 12 VDC, 20 mA (max.)
Connector	Power input jack
converter : General
Fan / Fanless	-
MTBF	2,272,562 hour
converter : Physical Characteristics
Dimensions	42 x 80 x 22 mm (1.65 x 3.15 x 0.87 in)
Housing	Plastic
Installation	-
Operating Temperature	0 to 60°C (32 to 140°F)
Operation Humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Safety: UL 60950-1; Vibration: IEC 60068-2-6; IP30; Telcordia (Bellcore), GB
Storage Temperature	-20 to 75°C (-4 to 167°F)
Weight	150 g (0.33 lb)
converter : LED Indicators
LED Per Port	Yes
Power	Yes
