Name: MOXA IMC-101G Ethernet to Fiber Converter
Brand: MOXA
Availability: OutOfStock

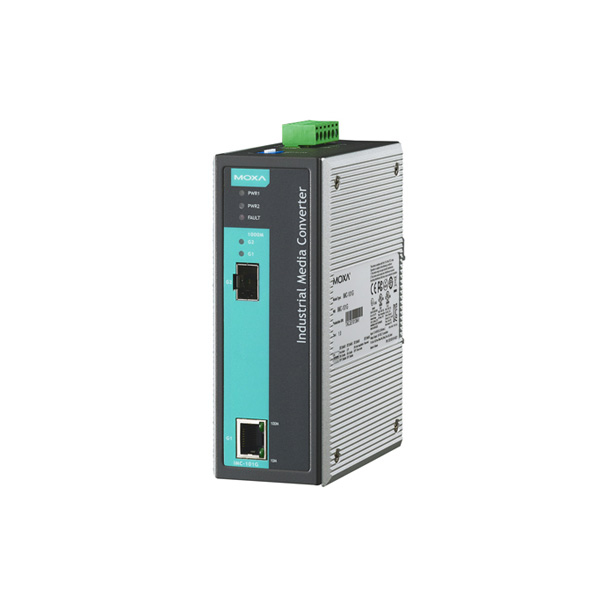

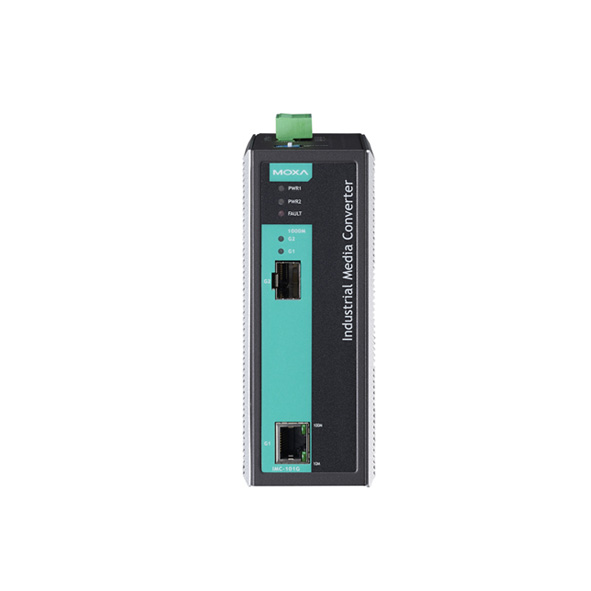

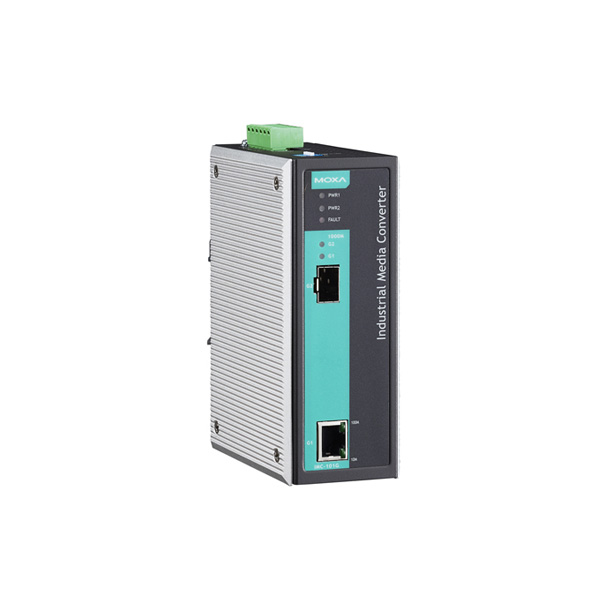

MOXA IMC-101G Ethernet to Fiber Converter

1 x 10/100/1000BaseT(X) Ports (RJ45 connector)
1 x 1000 Mbps fiber (SFP connector)
12 to 45 VDC input power range
Metal body design
DIN-rail mounting
0 to 60°C operating temperature

Brand: MOXA
Model: IMC-101G

0 reviews • Write a review

Datasheet User Guide

Operating Temperature (0 to 60°C)
Relative Humidity (5 to 95% non-condensing)
Vibration (IEC 60068-2-6)
Hazardous Location (UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2 EEx nC IIC, IECEx)

Oil & Gas
Factory Automation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA A52-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A52-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB25F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/ Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA A53-DB9F w/o Adapter RS-232 to RS-422/485 Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet to Fiber Converters , Media Converters , Industrial Data Communications , Industrial Media Converters , Industrial Converters , Factory Automation Products , Oil & Gas Products , Converters , MOXA IMC-101G Series

The IMC-101G industrial Gigabit modular media converters are designed to provide reliable and stable 10/100/1000BaseT(X)-to-1000BaseSX/LX/LHX/ZX media conversion in harsh industrial environments. The IMC-101G’s industrial design is excellent for keeping your industrial automation applications running continuously, and each IMC-101G converter comes with a relay output warning alarm to help prevent damage and loss. All IMC-101G models are subjected to a 100% burn-in test, and they support a standard operating temperature range of 0 to 60°C and an extended operating temperature range of -40 to 75°C.

You can also find the IMC-101G-T-IEX, IMC-101G-IEX, and IMC-101G-T models in the Industrial Media Converters.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA IMC-101G Ethernet to Fiber Converter through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

eth to fiber : Interface
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	Yes : 1 Port
10/100Mb (Megabit) POE Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
1000Mb Fiber optic multi mode (Gigabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
1000Mb Fiber optic single mode (Gigabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	Yes : 1 Port
M12 port	No
Alert Output	Yes
Magnetic Isolation Protection	1.5 kV (built-in)
eth to fiber : Standards and protocols
Protocols and work standards	-
eth to fiber : General
Maximum cable length for data transfer	-
MTBF	500,540 hour
eth to fiber : Power Requirements
Input Voltage	12 to 45 VDC
Input Current	200 mA @ 12 to 45 VDC
Overload Current Protection	Supported
Type of power input	Terminal block
Power Consumption	200 mA @ 12 to 45 VDC
eth to fiber : Physical Characteristics
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; Hazardous Locations: UL/cUL Class I Division 2 Groups A/B/C/D, ATEX Zone 2, IECEx; Telcordia (Bellcore), GB
Housing	Metal
Dimensions	53.6 x 135 x 105 mm (2.11 x 5.31 x 4.13 in)
Weight	630 g (1.39 lb)
Operating Temperature	0 to 60°C (32 to 140°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Operation Humidity	5 to 95% (non-condensing)
Installation	DIN-rail mounting

Datasheet User Guide

MOXA IMC-101G Ethernet to Fiber Converter
