Name: Westermo MCI-211G Industrial Ethernet to Fiber Media Converter
Brand: WESTERMO
Availability: OutOfStock

Westermo MCI-211G Industrial Ethernet to Fiber Media Converter

Industrial Gigabit Ethernet Media Converter
1 x 10/100/1000 Base-TX Ethernet port (RJ45 connector)
1 x SFP socket for Gigabit Ethernet SFP Transceiver (Terminal block connector)
IP31-rated Rugged aluminum alloy case

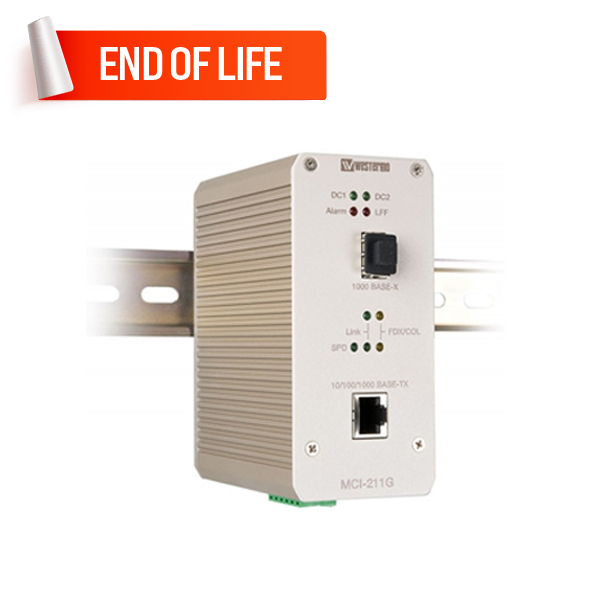

DIN-Rail mount installation design
24V DC (12~48V) input power with polarity reverse and over-current protections
–25 ~ 70ºC operating temperature range

Brand: WESTERMO
Model: 3624-0001

0 reviews • Write a review

Datasheet User Manual

Operating Temperature (-25 to 70°C)
Relative Humidity (0% ~ 95%, non-condensing)
IP protection (IP31)
Shock (IEC 60068-2-27)
Freefall (IEC 60068-2-32)
Vibration (IEC 60068-2-6)

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

Westermo MCI-422-MM-SC2 Industrial Ethernet to Fiber Media Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo MCI-422-SM-SC30 Industrial Ethernet to Fiber Media Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo MCW-211-F1G-T1G Industrial Ethernet to Fiber Media Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo MCW-211-MM-LC2 Industrial Ethernet to Fiber Media Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo MCW-211-MM-SC2 Industrial Ethernet to Fiber Media Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo MCW-211-MM-ST2 Industrial Ethernet to Fiber Media Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo MCW-211-SM-LC15 Industrial Ethernet to Fiber Media Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo MCW-211-SM-LC40 Industrial Ethernet to Fiber Media Converter

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Media Converters , Ethernet Media Converters , Converters , Industrial Data Communications , Industrial Media Converters , Westermo MCI-211G

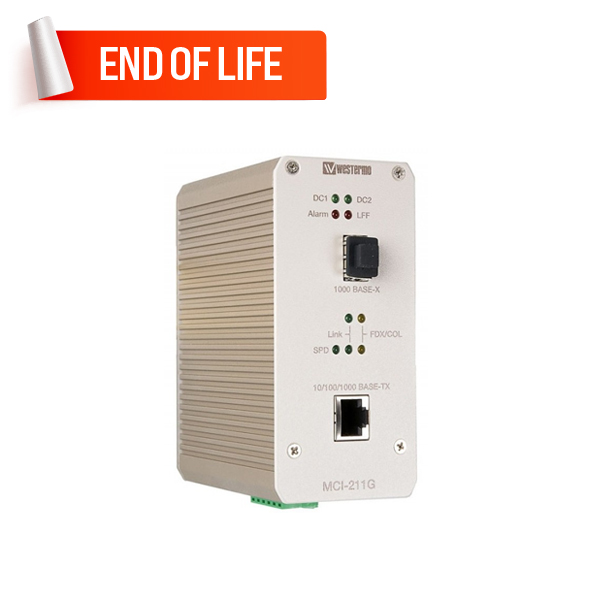

The Westermo MCI-211G is an industrial Gigabit Ethernet media converter. It has a rugged aluminum alloy case with IP-31 grade ingress protection as well as providing excellent heat dissipation characteristics.

The MCI-211G can operate over a wide voltage input range. It also has dual power inputs to ensure making the unit is ideal in applications where a secondary power source is used to maintain high system integrity. The Westermo MCI-211G uses a hot-swappable Small Form Factor Pluggable (SFP) Fibre transceiver, allowing the unit to operate over pretty much any type and distance of fibre supported by SFP technology.

The MCI-211G features Link Fault Forwarding (LFF) in order to forward link status changes to alert remote or central management systems via the connected media. In industrial systems, however, alarms can be shown on the fault contact, giving an alternative method of fault detection. This fault contact can be easily configured with a simple DIP switch.

You can also find the MCW-211-F1G-T1G model in the Ethernet Media Converters.

Experience the convenient way to purchase the Westermo MCI-211G Industrial Ethernet to Fiber Media Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

eth to fiber : Interface
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	Yes : 1 Port
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
100Mb Fiber optic multi mode (Megabit) Ports	No
1000Mb Fiber optic multi mode (Gigabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
1000Mb Fiber optic single mode (Gigabit) Ports	No
1000Mb SFP Fiber optic (Gigabit) Ports	Yes : 1 Port (Terminal block connector)
M12 port	No
Alert Output	Yes
Magnetic Isolation Protection	No
eth to fiber : Standards and protocols
Protocols and work standards	IEEE802.3 10Base-T, IEEE802.3u 100Base-TX, IEEE802.3ab 1000Base-T,, IEEE802.3z Gigabit Ethernet Fibre, IEEE802.3x flow control and back-pressure, IEEE802.1p Class of Service, IEEE802.1Q Quality of Service
eth to fiber : General
Maximum cable length for data transfer	-
MTBF	-
eth to fiber : Power Requirements
Input Voltage	DC 24V (12~48V)
Input Current	Maximum 1A current at DC 24
Overload Current Protection	Supported
Type of power input	6-pin removable terminal block
Power Consumption	8 Watts @ DC 24 V (Maximum)
eth to fiber : Physical Characteristics
Standards and Certifications	Ingress protection: IP31; ; Vibration: IEC 60068-2-6 (sine); Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Hi-Pot: AC 1.5 KV on port to port and port to power; EMI: FCC Class A, CE/EN55022; EMC: immunity interface EN61000-4-2, EN61000-4-3, EN61000-4-4, EN61000-4-5, EN61000-4-6, EN61000-4-8, EN61000-4-11; Safety: CE/EN60950
Housing	Aluminum
Dimensions	120 mm (H) x 55 mm (W) x108 mm (D) (with DIN rail clip)
Weight	0.904 kg with package, 0.655 kg without package
Operating Temperature	–25 ~ 70ºC
Storage Temperature	–40 ~ 85ºC
Operation Humidity	0% ~ 95%, (non-condensing)
Installation	Din-rail mounting
