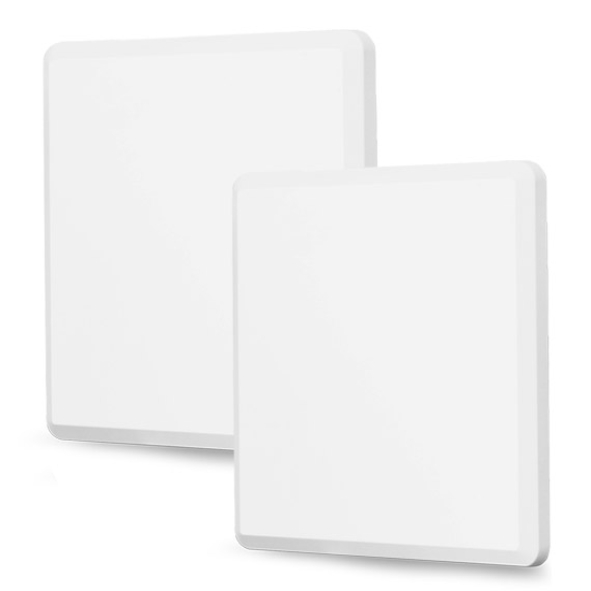

Proxim Tsunami QB-10250-LKX-WD Point-to-Point Radio

Proxim Tsunami QB-10250-LKX-WD Point-to-Point Radio
Proxim Tsunami QB-10250-LKX-WD Point-to-Point Radio
  • Point to Point link that delivers up to 866 Mbps data rate and covers distances up to 10 miles (16 km)
  • AES 128 encryption (Upgradeable to AES 256), Radius authentication, and highly-secure remote management via SSL/TLS1.2, SSH, and SNMPv3
  • Service flow-based QoS with deep packet inspection (DPI) to ensure critical data arrives with priority
  • Built-in feature-rich network protocols for IPv4 and IPv6 bridging, routing, and gateway functionality
  • 867 Mbps, MIMO 2x2, BeamX antenna, SmartScan radio
  • Brand: PROXIM
  • Model: Tsunami QB-10250-LKX-WD
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 60°C)
  • Relative Humidity (Up to 100%)
  • IP protection (IP67)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Proxim Tsunami QB-10100-LNK-100-WD Point-to-Point Radio
Quickview
Proxim Tsunami QB-10100-LNK-100-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Tsunami QB-10150L-LNK-WD Point-to-Point Radio
Quickview
Proxim Tsunami QB-10150L-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Tsunami QB-10150S-LNK-US Point-to-Point Radio
Quickview
Proxim Tsunami QB-10150S-LNK-US Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Edge Quickbridge QB-1025-LNK-WD Point-to-Point Radio
Quickview
Proxim Edge Quickbridge QB-1025-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Edge Quickbridge QB-1035-LNK-WD Point-to-Point Radio
Quickview
Proxim Edge Quickbridge QB-1035-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Edge Quickbridge QB-1066-LNK-WD Point-to-Point Radio
Quickview
Proxim Edge Quickbridge QB-1066-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Stratum SX1-1023C-WD Point-to-Point Radio
Quickview
Proxim Stratum SX1-1023C-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Stratum SX3-1020A-WD Point-to-Point Radio
Quickview
Proxim Stratum SX3-1020A-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

The Quickbridge® 10250 BeamX radios speed the deployment of point-to-point networks by eliminating the complicated and time-consuming antenna alignment process. The intelligent beam steering technology first used in our Multi-point Base station, the Multipoint 10250 BSX has been adapted to enable easy and cost-effective installation. Now a rough alignment between endpoints is enough for the unit to take control of the setup, as the Quickbridge® 10250 manages, and maintains the fine-tuning for optimum Signal Noise Ratio. In urban nLOS conditions, BeamX QB can help find the right reflection angle from a nearby wall or building to facilitate connectivity. The always-on BeamX intelligence ensures the link remains optimized to take full advantage of the system's high throughput capability. The BeamX solution combined with the secondary look-ahead scan radio improves performance even in high RF interference environments.


You can place an order for the Proxim Tsunami QB-10250-LKX-WD Point-to-Point Radio online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Point-to-point Radio : Interfaces
Wired EthernetTwo auto MDI-X RJ45 10/100/1000Mbps Ethernet (Port #1 with PoE in & Data, Port #2 with PoE out & Data) WORP® (Wireless Outdoor Router Protocol)
Wireless Protocol
Point-to-point Radio : Radio Specifications
MIMO2x2:2 and 0x2:2 (scan radio)
ModulationOFDM with BPSK, QPSK, QAM16, QAM64, QAM256
Frequency4.900 – 5.850 GHz (Subject to Country Regulations)
Channel Size80 MHz, 40 MHz and 20 MHz
Data RateMCS 0 to 9 with Dynamic Data Rate Selection
TX PowerUp to 28 dBm (dual chain)
TX Power Control0 - 27 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Point-to-point Radio : Antenna
Antenna TypeIntegrated 2x2 MIMO Beam Steering antenna: Beam Width 17° spanning over ± 30° sector Receive Gain 16 dBi (11 dBi before 5.150 GHz) Transmit Gain 20 dBi (11 dBi before 5.150 GHz )
Point-to-point Radio : Management
RemoteTelnet and SSH, Web GUI and SSL, TFTP, SNMPv3
SNMPSNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
OtherSyslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Point-to-point Radio : Standards and Protocols
SynchronizationPass-trough SyncE and Precision Time Protocol (IEEE 1588v2) Ethernet Synchronization
Point-to-point Radio : Security
EncryptionAES 128
AuthenticationInternal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
Point-to-point Radio : Network
ModesBridging (support LACP through external switches), Routing (RIP v2 and IP tunneling)
IP StackIPv4 and IPv6 simultaneously
Gateway FeaturesDHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-point Radio : Power Requirement
Power Consumption30 Watt typical, 40 Watt maximum
Point-to-point Radio : Physical Characteristics
TemperatureOPERATING -40º to 60ºC (-40º to 140º Fahrenheit) STORAGE -50º to 70ºC (-58º to 158º Fahrenheit)
Humidity100% relative humidity
IP RatingIP67
Dimensions Packaged18.46 x 7.05 x 21.57 in (469 x 179 x 548 mm)
Dimensions Unpackaged14 x 14 x 3.40 in (371 x 371 x 85 mm)
Weight (PACKAGED)13.67 lbs (6.2 kg)
Weight (UNPACKAGED)7.27 lbs (3.3 kg)
Standards and CertificationsUSA: FCC 90Y + 15E (UNII 15.247) Canada: IC RSS 102 + RSS 111 + RSS 247 Europe: RED EN 301 489-1 + EN 301-489-17 + EN 301 893 + EN 302 502 Safety: IEC 62368-1:2016 & 60950-22:2016 UL 62368-1 2nd edition & 60950-22 2nd edition CAN/CSA C22.2 No 62368-1:14 & No 60950-22:17 EN 62368-1:2014 + A11:2017 & 60950-22:2017
Wind Loading200 km/h (125 mph)
Point-to-point Radio : General
MTBFover 250 000 hours
Point-to-point Radio : Package Checklist
Package ContentsOne Tsunami® QB-10250-LKX with integrated BeamX antenna and scan radio Two power injector and country specific power cord Two Connector weatherproofing kit (Includes all recommended weatherproofing material) Two Wall / Pole mounting kit Two Antenna alignment (RJ11) dongle Two Grounding kit Two Quick Installation Guide
