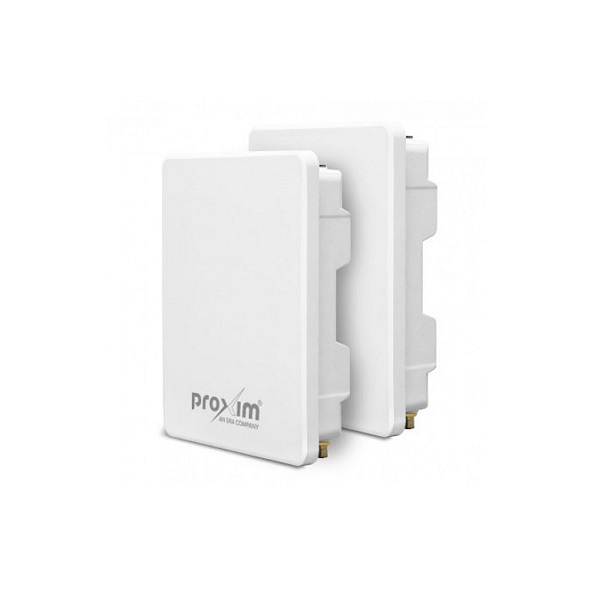

Proxim Edge Quickbridge QB-1035-LNK-WD Point-to-Point Radio

From Same Category
Same Brand

Beijer BoX2 extreme protocol converter-IoT gateway-edge controller

$0.00

Ex Tax:$0.00

Beijer BoX2 extreme SC protocol converter-IoT gateway-edge controller

$0.00

Ex Tax:$0.00

Beijer X2 extreme 12 HP SC Rugged HMI

$0.00

Ex Tax:$0.00

Beijer X2 extreme 15 HP Rugged HMI

$0.00

Ex Tax:$0.00

Beijer X2 extreme 7 SL HP Rugged HMI

$0.00

Ex Tax:$0.00

Innovaphone IP111 Desktop IP phones

$0.00

Ex Tax:$0.00

Innovaphone IP112 Desktop IP phones

$0.00

Ex Tax:$0.00

Innovaphone IP1202 IP DECT Gateway

$0.00

Ex Tax:$0.00

The Proxim Edge Quickbridge 1035 is a highly reliable outdoor, high throughput Point to-Point system designed to deliver years of reliable service and priced to fit cost-sensitive medium-range backhaul projects. The Edge Quickbridge is powered by Proxim’s advanced Wireless Outdoor Router Protocol (WORP). Among the many benefits of WORP is its effective use of bandwidth, granular service level management, and an advanced Quality of Service engine.

You can place an order for the Proxim Edge Quickbridge QB-1035-LNK-WD Point-to-Point Radio, which is applicable in the Oil & Gas industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Point-to-point Radio : Interfaces
Wired Ethernet	One auto MDI-X RJ45 10/100/1000Mbps Ethernet with PoE in
Wireless Protocol	WORP® (Wireless Outdoor Router Protocol)
Point-to-point Radio : Radio Specifications
MIMO	2x2:2
Modulation	OFDM BPSK-QAM256
Frequency	5.150 – 5.925 GHz (Subject to Country Regulations)
Channel Size	20 and 40 MHz (license upgrade to 80 MHz)
Data Rate	Up to 400 Mbps (license upgrade upto 866 Mbps)
TX Power	Up to 24 dBm (dual chain)
Throughput	License upgrade upto 866 Mbps
TX Power Control	0 - 17 dB, in 1 dB steps. Automatic TPC with configurable EIRP limit
Other	Dynamic Channel Selection (DCS) based on interference detection, Dynamic Frequency Selection (DFS) based on radar signature, Automatic Transmit Power Control (ATPC) with EIRP limit support
Point-to-point Radio : Antenna
Antenna Type	Integrated 2x2 MIMO 15 dBi Dual Polarized 30 degree Panel Antenna plus Four RP-SMA Connectors (Software switch between integrated antenna and connectors)
Point-to-point Radio : Management
Remote	Telnet and SSH, Web GUI and SSL/TLS1.2, TFTP, SNMPv3
SNMP	SNMP v1-v2c-v3, RFC-1213, RFC-1215, RFC-2790, RFC-2571, RFC-3412, RFC-3414, Private MIB
Other	Syslog, sFlow™ agent, SNTP and local time, Spectrum analyzer
Point-to-point Radio : Standards and Protocols
Synchronization	-
Point-to-point Radio : Security
Encryption	AES 128
Authentication	Internal MAC Address Control List, Radius based Authentication (with VLAN and QoS provisioning)
Point-to-point Radio : Network
Modes	Bridging, Routing (RIP v2 and IP tunneling)
IP Stack	IPv4 and IPv6 simultaneously
Gateway Features	DHCP Server & relay, NAT with Std ALGs, PPPoE end point with Proxy DNS
VLAN	802.1Q: Management VLAN. Transparent, Access, Trunk and Mixed mode. QinQ double tagging
Point-to-point Radio : Power Requirement
Power Consumption	10 W
Power Supply	802.3af/at compliant
Point-to-point Radio : Physical Characteristics
Temperature	OPERATING -30º to 55º Celsius (-22º to 131º Fahrenheit), STORAGE -50º to 70º Celsius (-58º to 158º Fahrenheit)
Humidity	100% relative humidity
IP Rating	IP67
Dimensions Packaged	310 x 226 x 98 mm (12.2 x 8.9 x 3.85 in)
Dimensions Unpackaged	170 x 217 x 56 mm (6.7 x 8.55 x 2.2 in)
Weight (PACKAGED)	-
Weight (UNPACKAGED)	1.24 kg (2.73 lbs)
Standards and Certifications	UL/IEC/EN 62386-1 and 60950-22
Safety	UL/IEC/EN 62386-1 and 60950-22
Wind Loading	180 km/h (112.5 mph)
Point-to-point Radio : General
MTBF	250 000 hours
Point-to-point Radio : Package Checklist
Package Contents	One Edge Quickbridge QB-1035-LNK with integrated antenna plus two RP-SMA connectors (Two QB 1035-EPR), Four RP-SMA weatherproofing caps, Two M25 weatherproofing cable glands, Two power injectors, and country-specific power cords, Two pair of hose clamps, Two Grounding kits, Two Quick Installation Guides

Datasheet
