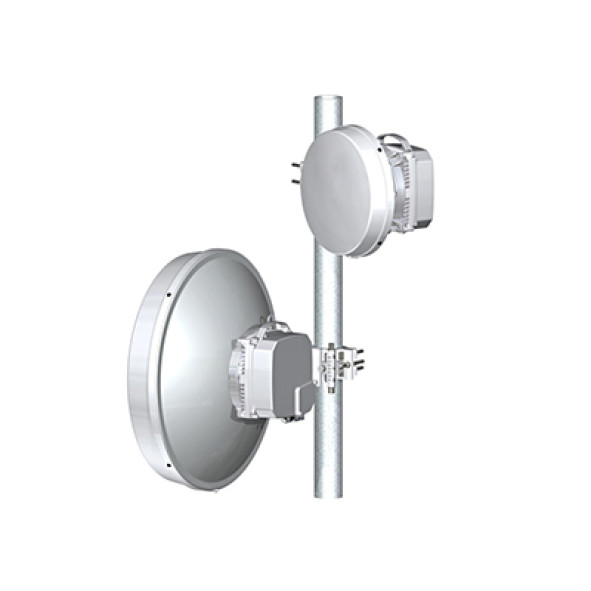

Proxim Tsunami GX-824-MM-LNK-A60 Point-to-Point Radio

Proxim Tsunami GX-824-MM-LNK-A60 Point-to-Point Radio
Proxim Tsunami GX-824-MM-LNK-A60 Point-to-Point Radio

  • Two Gigabit Ethernet 1000Base-T (RJ45) Auto MDIX ports with 10k jumbo frame support, One Optic Fiber 1000Base-SX / 1000Base-LX / 1000Base-BX port
  • 1 foot – 30 centimeters, 35.5 dBi, 2 foot – 60 centimeters, 41 dBi, 3 foot – 90 centimeters, 44 dBi , 4 foot – 120 centimeters, 46 dBi
  • 900 Mbps full duplex (1800 Mbps true aggregate) [660 Mbps full duplex (1320 Mbps true aggregate) in the USA and Canada]
  • IP65

  • Brand: PROXIM
  • Model: Tsunami GX-824-MM-LNK-A60
0 reviews • Write a review
Datasheet
  • Operating Temperature (-35 to 55°C)
  • Relative Humidity (100% relative humidity)
  • IP protection (IP65)
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Proxim Tsunami QB-10100-LNK-100-WD Point-to-Point Radio
Quickview
Proxim Tsunami QB-10100-LNK-100-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Tsunami QB-10150L-LNK-WD Point-to-Point Radio
Quickview
Proxim Tsunami QB-10150L-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Tsunami QB-10150S-LNK-US Point-to-Point Radio
Quickview
Proxim Tsunami QB-10150S-LNK-US Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Edge Quickbridge QB-1025-LNK-WD Point-to-Point Radio
Quickview
Proxim Edge Quickbridge QB-1025-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Edge Quickbridge QB-1035-LNK-WD Point-to-Point Radio
Quickview
Proxim Edge Quickbridge QB-1035-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Edge Quickbridge QB-1066-LNK-WD Point-to-Point Radio
Quickview
Proxim Edge Quickbridge QB-1066-LNK-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Stratum SX1-1023C-WD Point-to-Point Radio
Quickview
Proxim Stratum SX1-1023C-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Proxim Stratum SX3-1020A-WD Point-to-Point Radio
Quickview
Proxim Stratum SX3-1020A-WD Point-to-Point Radio
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product

Tsunami® GX-824 is a very high throughput, extremely reliable, and cost-effective, all outdoor unlicensed point-to-point (PtP) microwave solution operating in the 24 GHz band. With its capacity of up to 900 Mbps full-duplex (1.8 Gbps aggregate), hitless ACM, and modulation schemes up to 1024QAM, Tsunami® GX-824 brings a new dimension to the microwave links market and can be used as an adequate alternative to 60 and 80 GHz millimeter wave links.


You can place an order for the Proxim Tsunami GX-824-MM-LNK-A60 Point-to-Point Radio, which is applicable in the Oil & Gas industry, online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.

Point-to-point Radio : Interfaces
EthernetTwo Gigabit Ethernet 1000Base-T (RJ45) Auto MDIX ports with 10k jumbo frame support , One Optic Fiber 1000Base-SX / 1000Base-LX / 1000Base-BX port
ManagementDiagnostic channel with Ethernet / RS-232 interface, Antenna alignment voltage (BNC)
ANTENNA (ODU)Integrated with the ODU
Point-to-point Radio : Radio Specifications
ModulationQPSK, 8PSK, 16QAM, 32QAM, 64QAM, 128QAM, 256QAM, 1024QAM with Hitless adaptive coding & modulation (ACM)
FrequencyFrequency Range 24.000 to 24.250GHz [24.050 to 24.250 in the USA and Canada]
Channel SizeWideband support. Configurable from 3.5 to 112 MHz [3.5 to 80 MHz for the USA and Canada]
TX PowerFrom -27 to +5 dBm
Error CorrectionReed-Solomon FEC and Convolutional Interleaver
TX Power ControlAutomatic Transmit Power Control (ATPC)
Point-to-point Radio : Antenna
Antenna Type1 foot – 30 centimeters, 35.5 dBi, 2 foot – 60 centimeters, 41 dBi, 3 foot – 90 centimeters, 44 dBi , 4 foot – 120 centimeters, 46 dBi
Point-to-point Radio : Management
RemoteProprietary GX-824 Manager, telnet (CLI)
SNMPSNMP v1, Enterprise MIB
LocalRS-232 interface
OtherSpectrum analyzer
Point-to-point Radio : Security
EncryptionAES 256 bits
Point-to-point Radio : Network
Configuration Scheme1+0, 1+1 SD/FD (protected) or 2+0 (true aggregate)
Throughput Capacity900 Mbps full duplex (1800 Mbps true aggregate) [660 Mbps full duplex (1320 Mbps true aggregate) in the USA and Canada]
Latency< 90 μs @ 900 Mbps
VLAN802.1Q (4096 VLAN IDs) and QinQ
Point-to-point Radio : Power Requirement
Power Input48 VDC (support from 36 to 72 VDC )
Power ConsumptionUp to 27 W
Point-to-point Radio : Physical Characteristics
TemperatureOPERATING TEMPERATURE -31 to +131 ºF (-35 to +55ºC)
Humidity100%
IP RatingIP65
Dimensions5.2 x 10 x 11.8 in. (133 x 255 × 301 mm)
Wind Loading70 Mph (112 km/h) Operational, 125 Mph (200 km/h) Survival
Weight11.2 lbs (5.1 kg) without antenna
Point-to-point Radio : Package Checklist
Package ContentsTwo Tsunami® GX-824 ODU, Two antennas, Two Mounting Kits, One Quick Installation Guide
