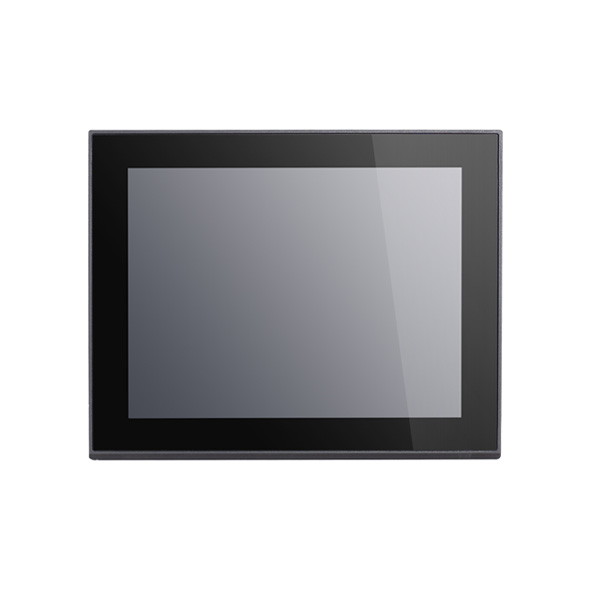

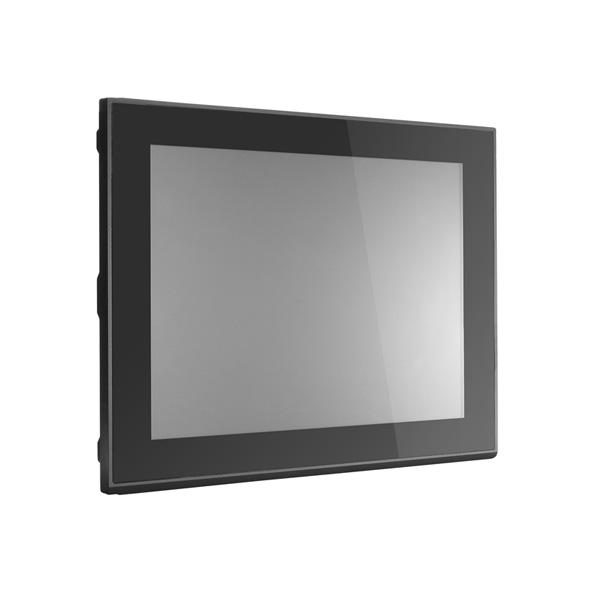

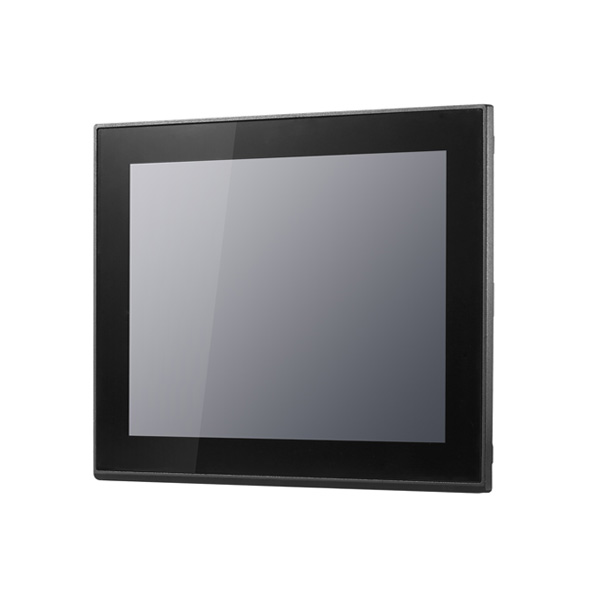

MOXA MPC-2120-E4-LB-T Panel Computer

MOXA MPC-2120-E4-LB-T Panel Computer
MOXA MPC-2120-E4-LB-T Panel Computer
MOXA MPC-2120-E4-LB-T Panel Computer
MOXA MPC-2120-E4-LB-T Panel Computer
MOXA MPC-2120-E4-LB-T Panel Computer
MOXA MPC-2120-E4-LB-T Panel Computer
MOXA MPC-2120-E4-LB-T Panel Computer

  • 12-inch Panel computer (500 nits)
  • CPU Intel Atom® Processor E3845
  • 2 x RS-232/422/485 Serial ports (DB9-M connector)
  • 2 x 10/100/1000 Mbps Ethernet ports (RJ45 connector)
  • Metal body design (IP66 for front, IP20 for rear)
  • 12/24 VDC input power (Wide-range 10 to 36 VDC)
  • -40 to 70°C operating temperature

  • Brand: MOXA
  • Model: MPC-2120-E4-LB-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP20)
  • IP protection (IP66)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNV-CG-0339)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Power Utility
  • Marine
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA BXP-A100-E2-2L3C-T Industrial Computer
Quickview
MOXA BXP-A100-E2-2L3C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-8C-T Industrial Computer
Quickview
MOXA BXP-A100-E2-8C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-8L-T Industrial Computer
Quickview
MOXA BXP-A100-E2-8L-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-T Industrial Computer
Quickview
MOXA BXP-A100-E2-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-T-Win10 Industrial Computer
Quickview
MOXA BXP-A100-E2-T-Win10 Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E4-2L3C-T Industrial Computer
Quickview
MOXA BXP-A100-E4-2L3C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E4-8C-T Industrial Computer
Quickview
MOXA BXP-A100-E4-8C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E4-8L-T Industrial Computer
Quickview
MOXA BXP-A100-E4-8L-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Computing , Displays And Panel Computers , Panel Computers , Displays , Industrial Computing Solutions , Industrial Computers , Computers , Industrial Panel Computers , Industrial Displays , Power Utility Products , Marine Products , Oil & Gas Products , MOXA MPC-2120 Series

The MPC-2120 12-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. With two software-selectable RS-232/422/485 serial ports and two Gigabit Ethernet ports, the MPC-2120 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2120 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for harsh, hot, outdoor environments like oil and gas fields and drilling platforms. The MPC-2120 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, multi-touch screen, providing an excellent user experience for outdoor applications.



You can also find the MPC-2120-E2-LB-T and MPC-2120-E4-T models in the Displays and Panel Computers.



Enjoy the ease of online inquiries for the MOXA MPC-2120-E4-LB-T Panel Computer. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Industrial Computer : Computer
CPUIntel Atom® E3845 processor (2M cache, 1.91 GHz)
Supported OSWindows 10 Pro 64-bit, Windows 10 Embedded IoT Ent 2016 LTSB Entry 64-bit, Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 (WS7P) 64-bit, Linux Debian 9
OS (pre-installed)-
System Memory4 GB DDR3L pre-installed
Graphics ControllerIntel® HD Graphics
Storage SlotCFast slot x 1, SD slots x 1, SD 3.0 (SDHC/SDXC) socket
Industrial Computer : Interface
LAN2 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Digital Input/Output Channels4 x Digital inputs, 4 x Digital outputs
Serial Ports2 x RS-232/422/485 ports, software selectable (DB9 male)
USB2 x USB 2.0 hosts, type-A connectors
Expansion Slot-
Industrial Computer : Display
Panel Size12-inch viewable image
Aspect Ratio4:3
Response Time5 ms (gray to gray)
Contrast Ratio700:1
Viewing Angles160°/140°
TouchCapacitive multi-touch with glove-friendly support
Pixels1024 x 768
Pixel Pitch (RGB)0.240 (H) x 0.240 (V) mm
Light Intensity500 cd/m2
Active Display Area245.76 (H) x 184.32 (V) mm
Max. No. of Colors16.2M (8-bit/color)
Industrial Computer : Serial Communication Parameters
Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityEven, Odd, Space, Mark, None
Flow ControlRTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Industrial Computer : Serial Signals
RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
Industrial Computer : LED Indicators
SystemPower x 1
LAN2 per port (10/100/1000 Mbps)
Serial-
Industrial Computer : Power Requirements
Input Voltage12 to 24 VDC (Wide-range 10 to 36 VDC)
Power Consumption40 W (max.)
Industrial Computer : Physical Characteristics
Dimensions306 x 245 x 64 mm (12 x 9.6 x 2.5 in)
HousingMetal
Operating temperature-40 to 70°C (-40 to 158°F)
Storage Temperature-40 to 70°C (-40 to 158°F)
Relative humidity5 to 95% (non-condensing)
Standards and CertificationsEMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, DNV-CG-0339, IEC 60068-2-2, DNV-CG-0339, IEC 60068-2-2, IEC 60945, IEC 60068-2-30, IEC 60945; Hazardous Locations: ATEX, Class I Division 2, IECEx; Maritime: DNV; Mechanical Protection Rating: IEC 60529, IP code; Safety: EN 60950-1, IEC 60950-1, UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-6, IEC 60945, IEC 60068-2-64, DNV-CG-0339; Green Product: RoHS, CRoHS, WEEE; IP66; IP20
Weight2,640 g (5.82 lb)
MountingVESA mount (50 x 75 mm), and panel mount
