Name: MOXA BXP-A100-E2-2L3C-T Industrial Computer
Brand: MOXA
Availability: OutOfStock

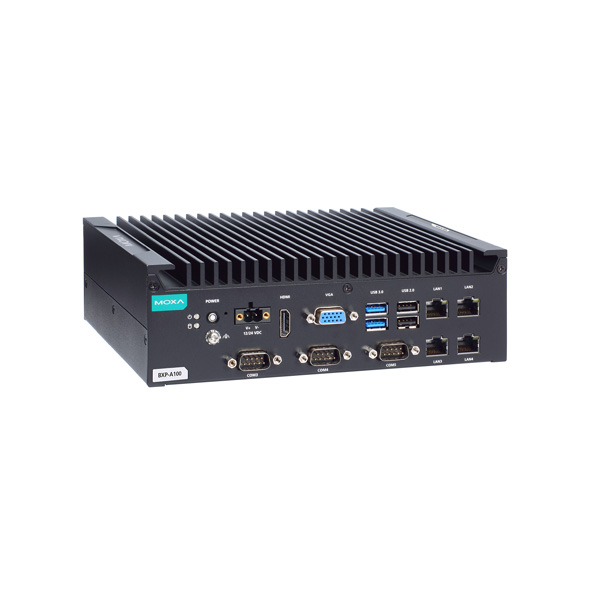

MOXA BXP-A100-E2-2L3C-T Industrial Computer

CPU: Intel Atom® x6211E processor
Box-type computer with a fanless design
4 x 10/100/1000 Mbps Ethernet ports
5 x RS-232/422/485 Serial ports
Wallmount installation design
12 to 24 VDC input power range
IP20-rated Metal body design
-30 to 60°C operating temperature range

Brand: MOXA
Model: BXP-A100-E2-2L3C-T

0 reviews • Write a review

Datasheet

IP protection (IP20)
Operating Temperature (-30 to 60°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-64)

Factory Automation
Oil & Gas

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

Tags: Industrial Computing Solutions , Industrial Computing , x86 Computers , Industrial Computers , Computers , Wide Temperature Computers , Box computers , Industrial Box Computers , Factory Automation Products , Oil & Gas Products , MOXA BXP-A100 Series

The BXP-A100 wall-mount computers are powered by an Intel Atom® X processor. The computers come with a rich set of interface options including up to 10 software-selectable RS-232/422/485 serial ports, up to 10 gigabit Ethernet ports, 4 digital inputs, and 4 digital outputs. The communication interfaces are located on the front and rear sides of the product, enabling easy access and expansion for industrial applications. A dual-storage design that includes CFast and SD slots enables easy storage expansion. The battery slot's unique battery fastener cover design secures the battery in place and ensures stability in all operating environments.

The BXP-A100 compact wall-mountable computers come fanless and can withstand a temperature range of -30 to 60°C, making them a good fit for harsh operating environments. The built-in TPM 2.0 module secures the platform from unauthorized access. The BXP-A100 Series is an intelligent computing solution that perfectly fulfills the OT and IT requirements of industrial environments.

You can also find the BXP-A100-E2-8C-T, BXP-A100-E2-8L-T, and BXP-A100-E2-T models in the Wide Temperature Computers.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the MOXA BXP-A100-E2-2L3C-T Industrial Computer through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Industrial Computer : Computer
CPU	Intel Atom® x6211E processor (Dual core, 1.5M cache, 1.30 GHz)
Supported OS	Windows Images and Drivers Supported: Windows 10 IoT Enterprise LTSC 2021 64-bit, Windows 11 Professional 64-bit; Linux Drivers Supported: Debian 11 (kernel 5.10), Ubuntu 22.04 LTS (kernel 5.15), RHEL 9 (kernel 5.14)
OS (pre-installed)	-
System Memory	8 GB DDR4
Graphics Controller	Intel® UHD Graphics
Storage Slot	CFast slot x 1 (SATAIII interface), SD slots x 1, SD 3.0 interface (SDHC/SDXC)
Industrial Computer : Interface
LAN	4 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Magnetic Isolation Protection	1.5 kV (built-in)
Digital Input/Output Channels	4 x Digital inputs, 4 x Digital outputs (Spring-type Euroblock terminal connector)
Serial Ports	5 x RS-232/422/485 ports, software selectable (DB9 male)
USB	USB 3.0 hosts x 2, type-A connectors, USB 2.0 hosts x 4, type-A connectors
Expansion Slot	-
Industrial Computer : Serial Communication Parameters
Baudrate	50 bps to 115.2 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, XON/XOFF
Industrial Computer : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Industrial Computer : LED Indicators
System	Power x 1, Storage x 1
LAN	2 per port (10/100/1000 Mbps)
Serial	-
Industrial Computer : Power Requirements
Input Voltage	12/24 VDC
Input Current	-
Power Consumption	50 W
Industrial Computer : General
Alert Tools	Built-in RTC (real-time clock) with lithium-battery backup
Automatic Reboot Trigger	Built-in WDT
MTBF	556,511 hrs
Industrial Computer : Physical Characteristics
Dimensions	210 x 166 x 65.5 mm (8.27 x 6.54 x 2.58 in)
Housing	Metal
Operating temperature	-30 to 60°C (-22 to 140°F)
Storage Temperature	-40 to 75°C (-40 to 167°F)
Relative humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A, BSMI; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF: 1 A/m at 50 to 60 Hz; Safety: UL 62368-1 (CB), BSMI; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-64; Package Drop Test: ISTA 1A; Package Vibration Test: ISTA 1A; Green Product: RoHS, CRoHS, WEEE; IP20; Telcordia (Bellcore), GB
Weight	2,208 g (4.86 Ib)
Mounting	Wall mounting (with optional kit)
