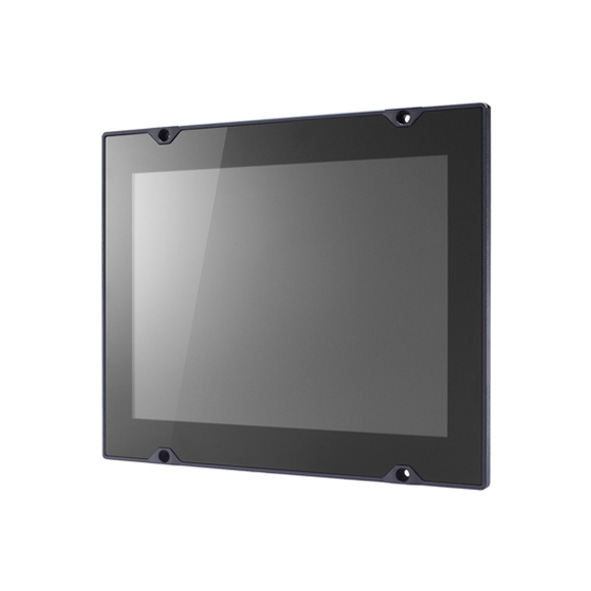

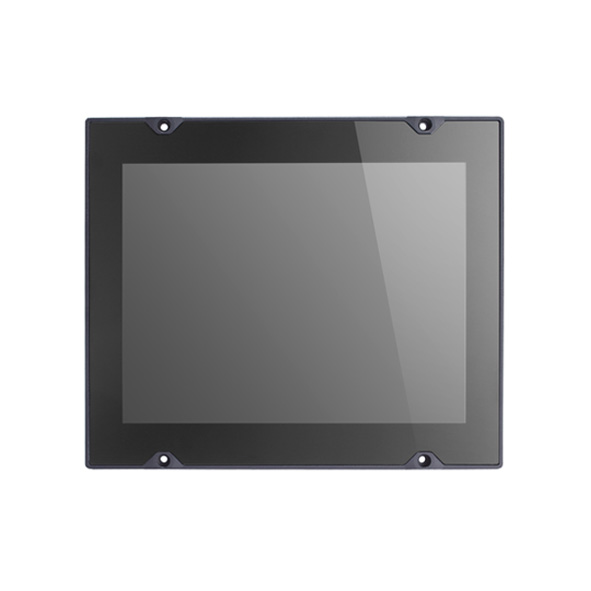

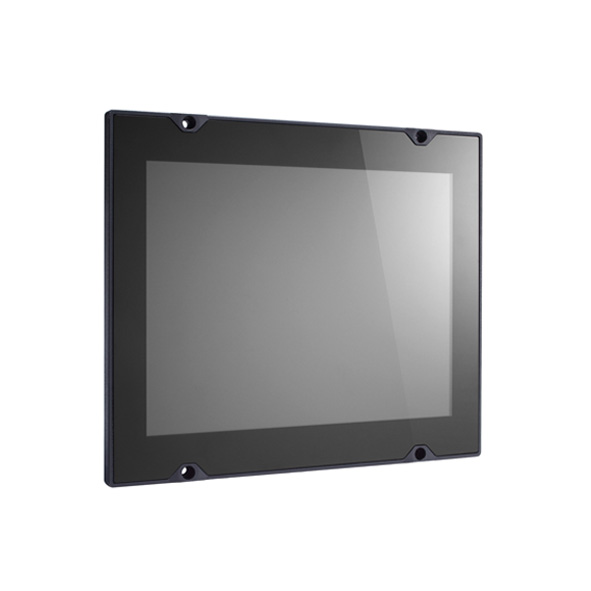

MOXA MPC-2101-E4-LB-CT-T Panel Computer

MOXA MPC-2101-E4-LB-CT-T Panel Computer
MOXA MPC-2101-E4-LB-CT-T Panel Computer
MOXA MPC-2101-E4-LB-CT-T Panel Computer
MOXA MPC-2101-E4-LB-CT-T Panel Computer
MOXA MPC-2101-E4-LB-CT-T Panel Computer
MOXA MPC-2101-E4-LB-CT-T Panel Computer
MOXA MPC-2101-E4-LB-CT-T Panel Computer

  • 10-inch Panel computer (500 nits)
  • CPU Intel Atom® Processor E3845
  • 1 x RS-232/422/485 Serial port (M12 connector)
  • 2 x 10/100 Mbps Ethernet ports (M12 connector)
  • IP66-rated metal body design
  • 24 to 110 VDC input power range
  • -40 to 70°C operating temperature

  • Brand: MOXA
  • Model: MPC-2101-E4-LB-CT-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP66)
  • Shock (EN50155 standard)
  • Vibration (EN50155 standard)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA BXP-A100-E2-2L3C-T Industrial Computer
Quickview
MOXA BXP-A100-E2-2L3C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-8C-T Industrial Computer
Quickview
MOXA BXP-A100-E2-8C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-8L-T Industrial Computer
Quickview
MOXA BXP-A100-E2-8L-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-T Industrial Computer
Quickview
MOXA BXP-A100-E2-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-T-Win10 Industrial Computer
Quickview
MOXA BXP-A100-E2-T-Win10 Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E4-2L3C-T Industrial Computer
Quickview
MOXA BXP-A100-E4-2L3C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E4-8C-T Industrial Computer
Quickview
MOXA BXP-A100-E4-8C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E4-8L-T Industrial Computer
Quickview
MOXA BXP-A100-E4-8L-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Computing , Displays And Panel Computers , Panel Computers , Displays , Industrial Computing Solutions , Industrial Computers , Computers , Industrial Panel Computers , Industrial Displays , Railway Transportation Products , MOXA MPC-2101 Series

The MPC-2101 10-inch panel computers with E3800 Series Intel Atom® processor deliver a reliable, durable, and versatile platform for use in industrial environments. All interfaces come with IP66-rated M12 connectors to provide anti-vibration and waterproof connections. With two software-selectable RS-232/422/485 serial ports and two Ethernet LAN ports, the MPC-2101 panel computers support a wide variety of serial interfaces as well as high-speed IT communications, all with native network redundancy.

The MPC-2101 Series panel computers are designed with a wide, -40 to 70°C temperature range, and come with a fanless, streamlined enclosure designed for highly efficient heat dissipation, making this one of the most reliable industrial platforms available for vibration-prone, harsh, hot, outdoor environments. The MPC-2101 also features a 1000-nit LCD panel offering a sunlight-readable, projected-capacitive, multi-touch screen, providing an excellent user experience.



You can also find the MPC-2101-E4-CT-T and MPC-2101-E4-LB-CT-T-LX models in the Displays and Panel Computers.



Inquire about the MOXA MPC-2101-E4-LB-CT-T Panel Computer, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Industrial Computer : Computer
CPUIntel Atom® Processor E3845 (2M Cache, 1.91 GHz)
Supported OSWindows 10 Pro 64-bit, Windows 10 Embedded IoT Ent 2019 LTSC 64-bit, Windows 10 Embedded IoT Ent 2016 LTSB, Windows 7 Pro for Embedded Systems, Windows Embedded Standard 7 (WS7P) 64-bit, Linux Debian 9
OS (pre-installed)-
System Memory4 (8GB Max.) GB DDR3L
Graphics ControllerIntel® HD Graphics
Storage SlotCFast slot x 1, SD slots x 1, SD 3.0 (SDHC/SDXC) socket
Industrial Computer : Interface
LAN2 x Auto-sensing 10/100 Mbps ports (M12 D-coded 4P)
Digital Input/Output Channels4 x Digital inputs, 2 x Digital outputs (M12 A-code)
Serial Ports1 x RS-232/422/485 port (M12 A-code 12P)
USB1 x USB 2.0 hosts (M12 A-code 5P)
Expansion SlotMini PCIe
Industrial Computer : Display
Panel Size10.4-inch viewable image
Aspect Ratio4:3
Response Time5 ms (gray to gray)
Contrast Ratio1000:1
Viewing Angles176°/176°
TouchCapacitive Touch (PCAP)
Pixels1024 x 768
Pixel Pitch (RGB)0.240 (H) x 0.240 (V) mm
Light Intensity500 cd/m2
Active Display Area210.4 (H) x 157.8 (V) mm
Max. No. of Colors16.2M (8-bit/color)
Industrial Computer : Serial Communication Parameters
Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityEven, Odd, Space, Mark, None
Flow ControlRTS/CTS, XON/XOFF
Industrial Computer : Serial Signals
RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wData+, Data-, GND
RS-485-2wTx+, Tx-, Rx+, Rx-, GND
Industrial Computer : LED Indicators
SystemPower x 1
LAN-
Serial-
Industrial Computer : Power Requirements
Input Voltage24 to 110 VDC
Power Consumption-
Industrial Computer : Physical Characteristics
Dimensions256.9 x 214.4 x 58.9 mm (10.11 x 8.44 x 2.32 in)
HousingMetal
Operating temperature-40 to 70°C (-40 to 158°F)
Storage Temperature-40 to 70°C (-40 to 158°F)
Relative humidity5 to 95% (non-condensing)
Standards and CertificationsEMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Mechanical Protection Rating: IEC 60529, IP code; Safety: IEC 62368-1, IEC 60950-1, UL 62368-1; Shock: EN 50155 standard; EMC: EN55032/35; Vibration: EN 50155 standard; Green Product: RoHS, CRoHS, WEEE; IP66
Weight2,080 g (4.59 lb)
Mounting-
