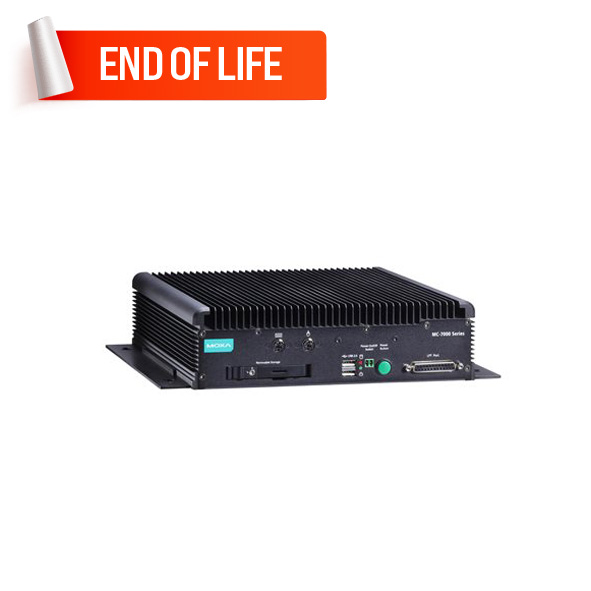

MOXA MC-7230-DC-CP-T Wide Temperature Computer

MOXA MC-7230-DC-CP-T Wide Temperature Computer
MOXA MC-7230-DC-CP-T Wide Temperature Computer
MOXA MC-7230-DC-CP-T Wide Temperature Computer
MOXA MC-7230-DC-CP-T Wide Temperature Computer
MOXA MC-7230-DC-CP-T Wide Temperature Computer
  • CPU Intel® Core™ i3-3210
  • 4 x 10/100/1000 Mbps Ethernet ports
  • 2 x RS-232 and 2 x RS-232/422/485 Serial ports
  • Metal body design
  • 24 VDC input power (with tolerance from 18 to 30 VDC)
  • Wallmount installation design
  • -40 to 70°C operating temperature
  • Brand: MOXA
  • Model: MC-7230-DC-CP-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Vibration (IEC 60068-2-64, DNVGL-CG-0339)
  • Marine
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA BXP-A100-E2-2L3C-T Industrial Computer
Quickview
MOXA BXP-A100-E2-2L3C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-8C-T Industrial Computer
Quickview
MOXA BXP-A100-E2-8C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-8L-T Industrial Computer
Quickview
MOXA BXP-A100-E2-8L-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-T Industrial Computer
Quickview
MOXA BXP-A100-E2-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E2-T-Win10 Industrial Computer
Quickview
MOXA BXP-A100-E2-T-Win10 Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E4-2L3C-T Industrial Computer
Quickview
MOXA BXP-A100-E4-2L3C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E4-8C-T Industrial Computer
Quickview
MOXA BXP-A100-E4-8C-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA BXP-A100-E4-8L-T Industrial Computer
Quickview
MOXA BXP-A100-E4-8L-T Industrial Computer
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Computing , x86 Computers , Industrial Computing Solutions , Industrial Computers , Compact/Fanless Computers , Wide Temperature Computers , Computers , Marine Products , MOXA MC-7200-DC-CP-T Series

The MC-7200-DC-CP-T computer features the Intel® Core™ i7 3555LE processor and comes with 4 serial ports, 4 Gigabit Ethernet ports, and 6 USB hosts. The computer offers high-performance and versatile peripherals for marine applications. Designed with high quality and durability in mind, the marine-grade MC-7200-DC-CP-T computer features a rugged chassis proven against 1G vibrations, providing a reliable platform even in harsh environments. In addition, the compact size, fanless design, and low power consumption deliver an optimal thermal solution and make installation easy for bridge systems in marine applications. Users can easily install Windows XP Embedded, Windows XP Professional, or Windows 7 to provide a flexible and friendly environment for system development and application implementation.

The MC-7200-DC-CP-T supports the Moxa Proactive Monitoring software, which is a small-footprint, resource-friendly, easy-to-use utility that allows users to track the number of system parameters. Users can view the current parameter values for these key parts by simply clicking on the icons corresponding to the parameters in the user interface. User-defined key part indicators (KPIs) are used to monitor the computer’s key parts. Visible and/or audio alerts are triggered automatically via relay and SNMP traps when these KPIs exceed their preset threshold values, making it extremely convenient for operators to avoid system downtime by setting up predictive maintenance tasks well in advance.


End of Life Product - Replacement Available

Please note that the MC-7200-DC-CP-T Series has been phased out and replaced by the MC-7400 Series.


Easy World Automation offers the easiest way to buy the MOXA MC-7230-DC-CP-T Wide Temperature Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Industrial Computer : Computer
CPUIntel® Core™ i3-3210 Processor (3M Cache, 3.20 GHz)
Supported OSWindows Embedded Standard 7 (WS7E) 32-bit, Windows Embedded Standard 7 (WS7E) 64-bit, Windows 10 Embedded IOT Ent 2016 LTSB High-End EPKEA, Windows 10 Embedded IOT Ent 2016 LTSB Value EPKEA
OS (pre-installed)-
System Memory4 GB DDR3/DDR3L
Graphics ControllerIntel® HD Graphics 4000 (integrated)
Storage Slot2 x SSD tray
Industrial Computer : Interface
LAN4 x Auto-sensing 10/100/1000 Mbps ports (RJ45 connector)
Magnetic Isolation ProtectionNo
Digital Input/Output ChannelsNo
Serial Ports2 x RS-232 and 2 x RS-232/422/485 software selectable ports (DB9 male connector)
USB6 x USB 2.0 hosts, type-A connectors
Expansion Slot-
Industrial Computer : Serial Communication Parameters
Baudrate50 bps to 115.2 kbps
Data Bits5, 6, 7, 8
Stop Bits-
Parity None, Even, Odd, Space, Mark
Flow ControlADDC® (automatic data direction control) for RS-485, RTS/CTS, XON/XOFF
Industrial Computer : Serial Signals
RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
Industrial Computer : LED Indicators
SystemPower x 1, Storage x 1
LAN2 per port (10/100/1000 Mbps)
Serial-
Industrial Computer : Power Requirements
Input Voltage24 VDC (with tolerance from 18 to 30 VDC)
Input Current-
Power Consumption100 W
Industrial Computer : General
Alert Tools-
Automatic Reboot TriggerBuilt-in WDT
MTBF-
Industrial Computer : Physical Characteristics
Dimensions287 x 250 x 70 mm (11.3 x 9.84 x 2.76 in)
HousingMetal
Operating temperature-40 to 70°C (-40 to 158°F)
Storage Temperature-50 to 80°C (-58 to 176°F)
Relative humidity5 to 95% (non-condensing)
Standards and CertificationsSafety: CE, FCC, UL 60950-1; EMC: EN 55022 Class B, ENV 50204; EMI: CISPR 22, FCC Part 15B Class A; Vibration: IEC 60068-2-64, DNVGL-CG-0339; Maritime: DNV, IEC 60945, CCS
Weight4,497 g (9.91 lb)
MountingWall mounting
