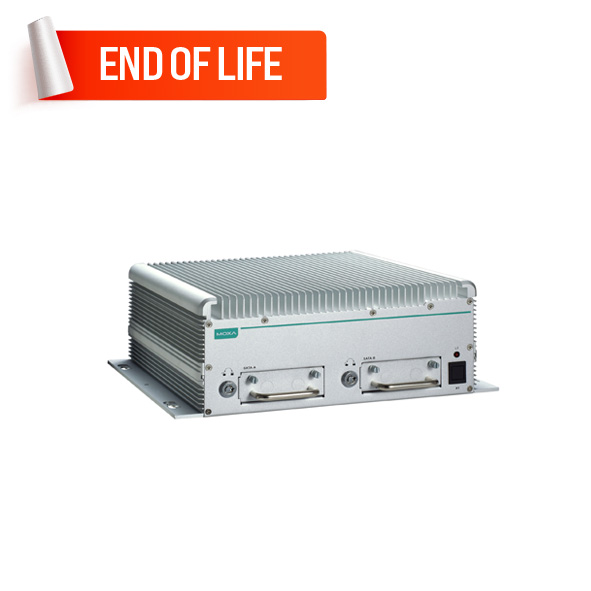

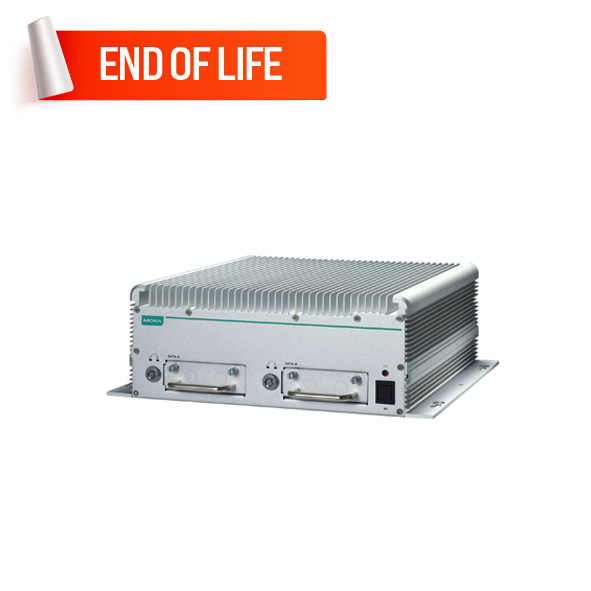

Name: MOXA V2616A-C5 Wide Temperature Computer
Brand: MOXA
Availability: InStock

MOXA V2616A-C5 Wide Temperature Computer

CPU Intel® Core™ i5-3610ME
2 x 10/100/1000 Mbps Ethernet ports
2 x RS-232/422/485 Serial ports
IP40-rated Aluminum body design
24 to 110 VDC isolated power input
Wallmount installation design
-25 to 55°C operating temperature

Brand: MOXA
Model: V2616A-C5

0 reviews • Write a review

Datasheet

Operating Temperature (-25 to 55°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP40)
Shock (IEC 60068-2-27, IEC 61373, EN 50155)
Vibration (IEC 60068-2-64, IEC 61373, EN 50155)

Railway Transportation
Factory Automation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

Tags: Industrial Computing , x86 Computers , Industrial Computers , Wide Temperature Computers , Specialized by Market , Rail Computers , Factory Automation Products , Railway Transportation Products , Computers , MOXA V2616A Series

The V2616A Series of embedded computers are based on the Intel Core i5/i7 processor, and feature 2 RS-232/422/485 serial ports, dual Gigabit LAN ports, 3 USB 2.0 ports, and dual VGA/DVI-D video outputs. The V2616A computers are compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making them suitable for a variety of industrial applications.

The V2616A computers come with a CFast socket that provides ample and secure data buffering or additional storage expansion, as well as 2 hot-swappable storage trays that accept 2.5-inch solid state or hard disk storage drives and may be arranged in RAID 1 arrays to give full data redundancy.

The V2616A Series comes with preinstalled Windows Embedded Standard 7 or Debian 7 environments, allowing programmers and system integrators to choose their preferred computing and development platform.

End of Life Product - No Replacement

Please note that the V2616A Series has been phased out. You can explore the V2406C Series, V2201 Series, V3200 Series, and V2403C Series in the x86 Computers.

Easy World Automation offers the easiest way to buy the MOXA V2616A-C5 Wide Temperature Computer in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Industrial Computer : Computer
CPU	Intel® Core™ i5-3610ME Processor (3 M cache, up to 3.30 GHz)
Supported OS	Linux Debian 7, Windows Embedded Standard 7 (WS7E) 32-bit
OS (pre-installed)	-
System Memory	4 GB DDR3 (Pre-installed)
Graphics Controller	Intel® HD Graphics 4000 (integrated)
Storage Slot	2.5-inch HDD/SSD slots x 2, CFast slot x 1
Industrial Computer : Interface
LAN	2 x Auto-sensing 10/100/1000 Mbps ports (M12 X-coded connector)
Magnetic Isolation Protection	-
Digital Input/Output Channels	6 x Digital Input Channels, 2 x Digital Output Channels
Serial Ports	2 x RS-232/422/485 ports (DB9 male connector)
USB	1 x USB 2.0 host, M12 D-coded connector, 2 x USB 2.0 hosts, type-A connectors
Expansion Slot	1 x mPCIe slot
Industrial Computer : Serial Communication Parameters
Baudrate	50 bps to 921.6 kbps
Data Bits	5, 6, 7, 8
Stop Bits	1, 1.5, 2
Parity	Even, Odd, Space, Mark, None
Flow Control	RTS/CTS, XON/XOFF, ADDC® (automatic data direction control) for RS-485, RTS Toggle (RS-232 only)
Industrial Computer : Serial Signals
RS-232	TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422	Tx+, Tx-, Rx+, Rx-, GND
RS-485-4w	Tx+, Tx-, Rx+, Rx-, GND
RS-485-2w	Data+, Data-, GND
Industrial Computer : LED Indicators
System	Power x 1, Storage x 1
LAN	2 per port (10/100/1000 Mbps)
Serial	2 per port (Tx, Rx)
Industrial Computer : Power Requirements
Input Voltage	24 to 110 VDC
Input Current	2.5 A @ 24 VDC, 0.55 A @ 110 VDC
Power Consumption	60 W (max.)
Industrial Computer : General
Alert Tools	-
Automatic Reboot Trigger	-
MTBF	280,726 hrs
Industrial Computer : Physical Characteristics
Dimensions	287 x 290 x 101 mm (11.29 x 11.41 x 3.97 in)
Housing	Aluminum
Operating temperature	-25 to 55°C (-13 to 131°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Relative humidity	5 to 95% (non-condensing)
Standards and Certifications	EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 60950-1, UL 60950-1; Shock: IEC 60068-2-27, IEC 61373, EN 50155; Vibration: IEC 60068-2-64, IEC 61373, EN 50155; Green Product: RoHS, CRoHS, WEEE; IP40; Telcordia (Bellcore), GB
Weight	5 kg (11.11 lb)
Mounting	Wall mounting (with optional kit)
