Operating Temperature (0 to 55°C)
Relative Humidity (5 to 95% non-condensing)

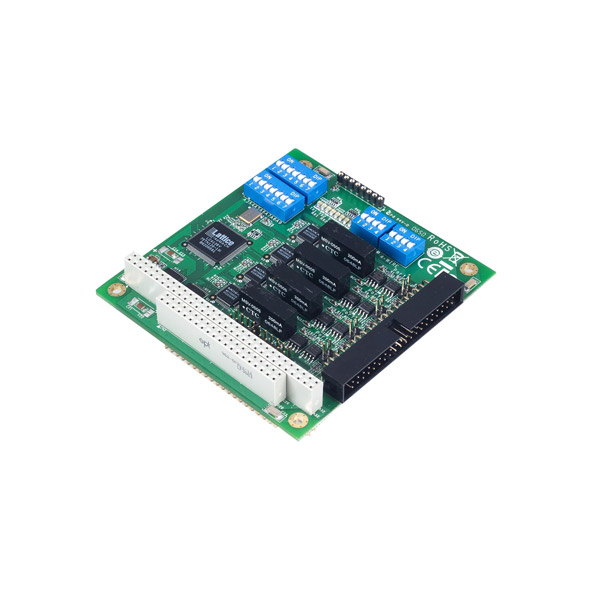

Vibration (IEC 60068-2-6)The CA-134I PC/104 modules are reliable, high-performance, multiport serial communication solutions that have 4 RS-422/485 ports and can be used with PC/104 CPU boards that accept the PC/104 expansion interface. Optional DB9 and DB25 connection cables are available for connecting to serial devices and versatile driver support makes the modules suitable for a wide range of applications.
You can also find the CA-134I-T model in the Multiport Serial Cards.
You
can explore our wide range of products and enquire about the MOXA CA-134I Serial Module Board for your
industrial automation needs. Our sales experts will pave the way to buy at the
lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.
| MULTIPORT SERIAL BOARDS : SERIAL INTERFACE | |
| Comm. Controller | 16C550C or compatible x 4 |
| Number of Ports | 4 Ports |
| Bus interface | PC/104 bus |
| Serial Standards | RS-422, RS-485 |
| Connector | 40-pin box header |
| Baudrate | 50 bps to 921.6 kbps (supports non-standard baudrates) |
| Max. No. of Boards per PC | 8 |
| Stop Bits | 1, 1.5, 2 |
| Parity | Even, Odd, Space, Mark, None |
| Flow Control | XON/XOFF, None |
| Data Bits | 5, 6, 7, 8 |
| FIFO | 64 bytes |
| Isolation | Yes : 2 KV |
| MULTIPORT SERIAL BOARDS : SERIAL SIGNALS | |
| RS-232 | - |
| RS-422 | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-4w | Tx+, Tx-, Rx+, Rx-, GND |
| RS-485-2w | Data+, Data-, GND |
| MULTIPORT SERIAL BOARDS : SERIAL SOFTWARE FEATURES | |
| Windows Drivers | DOS, Windows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded |
| Linux Drivers | Linux kernel 2.4.x, Linux kernel 2.6.x |
| UNIX Drivers | - |
| MULTIPORT SERIAL BOARDS : POWER REQUIREMENTS | |
| Input Current | 220 mA @ 5 VDC |
| Input Voltage | 5 VDC |
| MULTIPORT SERIAL BOARDS : GENERAL | |
| MTBF | 339,822 hrs |
| LED Indicators | Built-in Tx, Rx LEDs for each port |
| MULTIPORT SERIAL BOARDS : PHYSICAL CHARACTERISTICS | |
| Dimensions | 90 x 96 mm (3.54 x 3.78 in) |
| Operating Temperature | 0 to 55°C (32 to 131°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 0.5 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 3 V/m; Signal: 3 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-2, IEC 60068-2-3, IEC 60068-2-14; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB |
