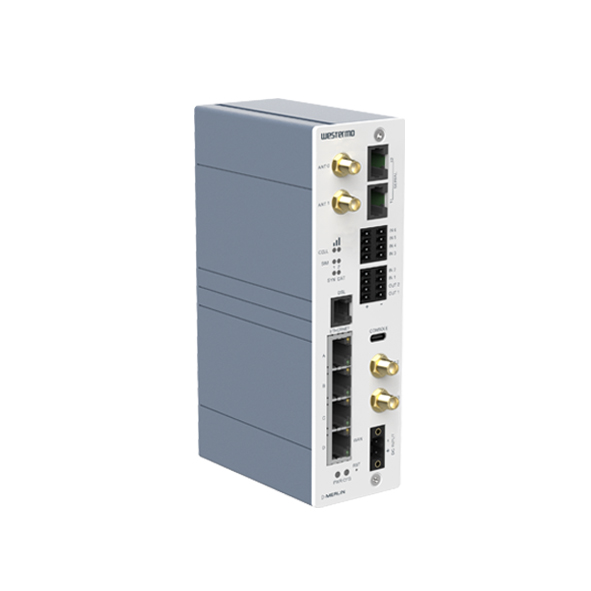

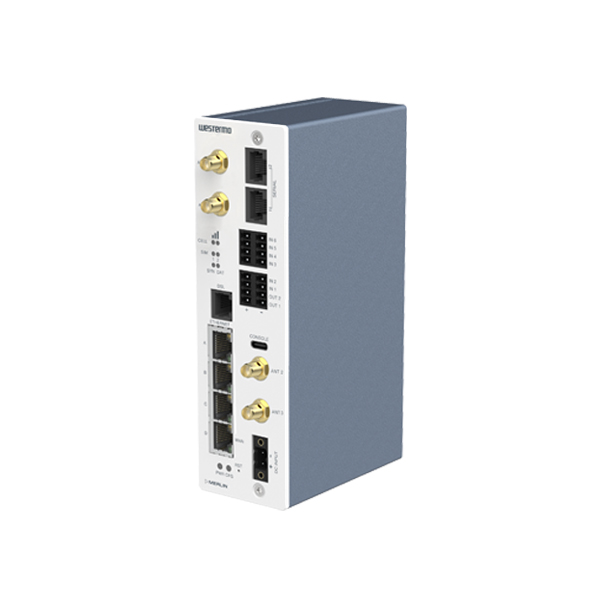

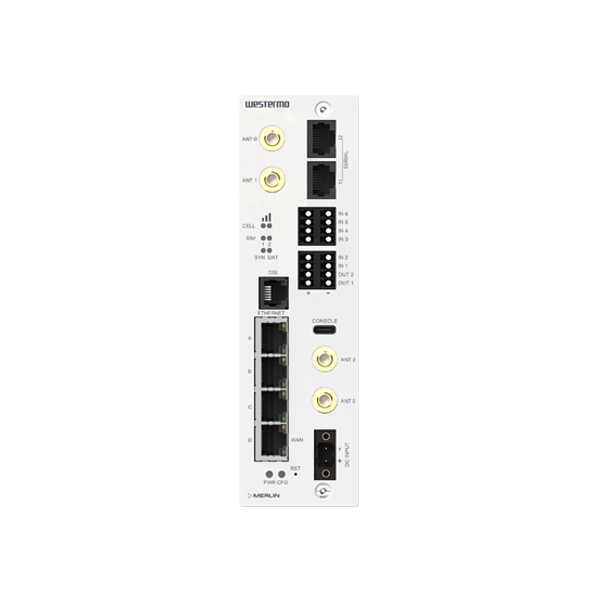

Westermo Merlin-4757-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router

Westermo Merlin-4757-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router
Westermo Merlin-4757-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router
Westermo Merlin-4757-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router
Westermo Merlin-4757-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router
Westermo Merlin-4757-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router
Westermo Merlin-4757-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router
Westermo Merlin-4757-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router
  • Supports Global Frequency Bands
  • 4 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ45)
  • 2 x Serial ports configurable as RS232 or RS485 (RJ-45)
  • 2 x Mini-SIM (2FF) card slots to rear, covered by metal plate
  • IP30/IP31-rated Full metal material design
  • 9.6 to 60 VDC operating voltage range
  • -20 to +65°C operating temperature range
0 reviews • Write a review
Datasheet
  • Operating Temperature (-20 to 65°C)
  • IP protection (IP30)
  • IP protection (IP31)
  • Relative Humidity (5% to 95% RH)
  • Power Utility
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL GW120 Cellular Router
Quickview
SATEL GW120 Cellular Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL GW600 Cellular Router
Quickview
SATEL GW600 Cellular Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SATEL SATELLAR XT 5RC IP Radio Router
Quickview
SATEL SATELLAR XT 5RC IP Radio Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Cellular LTE Routers , Broadband DSL Routers , Industrial Data Communications , Industrial Cellular Solutions , Power Utility Products , DSL Routers , Routers , Westermo Merlin 4750 Series

The Merlin series of versatile cellular routers provides high-speed data network connectivity for demanding industrial and smart grid applications. Coupled with the Zero Touch deployment software Activator, it provides cost-effective, reliable, and consistent onboarding of routers in large-scale projects. This compact, rugged unit is suited to tight spaces. Its high MTBF and wide temperature range support maximum service life.

To achieve best-in-class cybersecurity, the Merlin series has a TPM (Trusted Platform Module) chip that keeps cryptographic keys secure. Secure Boot ensures that the unit boots using only software that is signed and trusted by the manufacturer. A set of cybersecurity tools is available as standard, including VPN and stateful Firewall support for data security and user authentication.

The built-in industrial protocol gateway enables several devices using different protocols to be accessed via a common protocol interface. The unit supports up to 6 digital inputs and 2 outputs for local control or monitoring. Support for more digital inputs and outputs is possible using external modules.



You can also find the Merlin-4758-V-T4G-S2-DI6-DO2-LV-PFO model in the Broadband DSL Routers.



Enjoy the ease of online inquiries for the Westermo Merlin-4757-T4G-S2-DI6-DO2-LV-PFO Industrial VDSL 5G Cellular Router. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

3g modem : Interface
SIM card slotYes : 2 x Mini-SIM (2FF) card slots to rear, covered by metal plate
Ethernet PortsYes : 4 x 10/100/1000 Mbit/s Ethernet TX Ports (RJ45 connector)
USBYes : 1 x Console Port (USB type-C. Router acts as device)
Digital Input and OutputYes : Up to 6 x Digital inputs for detecting remote contact open/close, Up to 2 x Digital outputs (relay contact outputs)
Serial portYes : 2 x Port configurable as RS232 or RS485 (RJ-45)
Alert OutputYes : 2 x Outputs
Band Options3G Bands: B1, B2, B4, B5, B8, B19; LTE Bands: B1, B2, B3, B4, B5, B7, B8, B12, B13, B14, B17, B18, B19, B20, B25, B26, B28, B29, B30, B32, B34, B38, B39, B40, B41, B42, B43, B48, B66, B71; 5G NR: n1/ 2/ 3/ 5/ 7/ 8/ 12/ 13/ 14/ 18/ 20/ 25/ 26/28/ 29/ 30/ 38/ 40/ 41/ 48/ 66/ 70/ 71/ 75/76/ 77/ 78
Cellular Standards5G NR, LTE, 3G
Cellular Antenna Connectors4 x SMA compatible connectors
WLAN StandardsNo
WLAN Antenna ConnectorNo
GPS Antenna ConnectorNo
3g modem : Radio specifications
Radio Connection type-
Maximum data transfer speed of 2G-
Maximum data transfer speed of 3G-
Maximum data transfer speed of 4G-
WiFi Radio Frequency-
3g modem : Software Specifications
Routing RedundancyVRRP
VPNIPsec, L2TP, GRE, DMVPN
FirewallStateful inspection, NAT, Packet Filtering, Port Forwarding
Time ManagementNo
ManagementWeb interface (HTTPS), SMS management support, CLI via console, SSHv2, TFTP, SNMPv1/v2c/3, Secure Copy (SCP), Flexible alarm and event system, Port monitoring
3g modem : General
LED IndicatorsBooting up, Power, CFG, SIM, DSL, Cellular signal strength LED, LINK LED, SPEED LED
MTBFTelcordia: 815.000 hours
Operating mode5G Router, Serial-to-Ethernet Converter
3g modem : Standards and protocols
ProtocolsModbus TCP, Modbus RTU, DNP3, MQTT
3g modem : Features and capabilities
Send and receive SMSYes
3g modem : Security
Security and EncryptionNo
Authentication802.1x authentication, TLS
3g modem : Power Requirements
Power ConnectorPush-in spring connectors
Power Consumption (Output Adapter)12 W
Input Voltage-
POE SupportNo
Input Current890 mA at 12 VDC, 230 mA at 48 VDC
Reverse Polarity ProtectionSupported
3g modem : Buttons
Power buttonNo
ResetYes
3g modem : Physical Characteristics
InstallationDIN-rail mounting
Dimensions50 x 170 x 101 mm
HousingFull metal
Weight760 g
Operating Temperature-20 to +65°C
Storage Humidity5-95% relative humidity
Storage Temperature-30 to +70°C
Type of UseIndustrial environment
Standards and CertificationsIngress protection: IP30 as standard, IP31 when fitted with accessory part 432-00078; EMC: EN/IEC 61000-6-2, Immunity industrial environments, EN/IEC 61000-6-4, Emission industrial environments; Safety: EN 62368-1, Safety Communication Technology; VDSL: BT Openreach MCT; Telcordia
