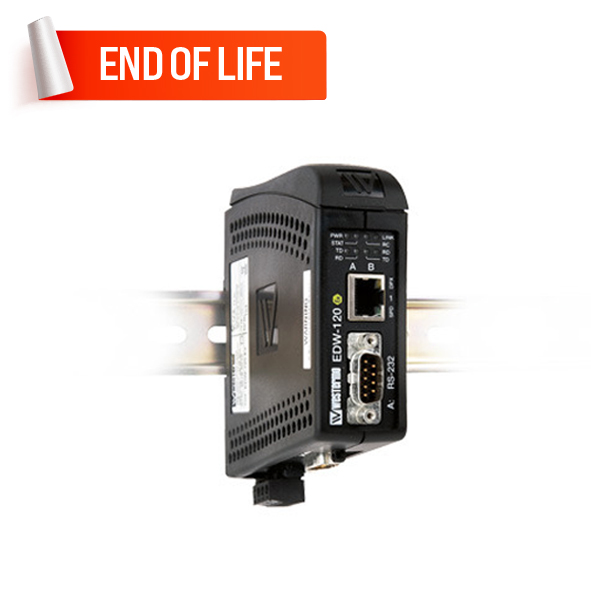

Westermo EDW-120 EX Serial to Ethernet Converter

Tags: Media Converters , Serial Converters & Repeaters , Serial Converters , Converters , Repeaters , Industrial Data Communications , Industrial Media Converters , Railway Transportation Products , Oil & Gas Products , Westermo EDW-120 EX

The EDW-120 EX is an ATEX-certified dual Ethernet converter designed to allow RS-232 serial devices to communicate via TCP/IP Ethernet networks. DIP switches can be used for the configuration of Ethernet port settings if required, and the password-protected web interface is used for all other settings. Diagnostic information can be accessed via a Telnet session with more basic information offered on LEDs.

The EDW-120 EX is designed for use in heavy-duty industrial applications. The wide power range, complete galvanic isolation, and transient protection allow the EDW-120 EX to operate without the fear of failure caused by ground loops or noise spikes typical in the worst environments.

Only industrial-grade components are used, which gives the EDW-120 EX an MTBF of 1,000,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts. The EDW-120 EX has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

The EDW-120 EX supports UDP, TCP client, and TCP server connections between units or to a PC virtual COM port. It also has an array of special modes, including Single Client Mode, Dual TCP Connection, DSR Connection, RST on TCP Closure, RTS Control, Break Signalling, and Last Calling, allowing the unit to be used in a wide range of complex applications.

End of Life Product - No Replacement

Please note that the EDW-120 EX has been phased out. You can explore the EDW-100, EDW-120, MDW-45 HV, and MDW-45 LV in the Serial Converters and Repeaters.

You can explore our wide range of products and enquire about the Westermo EDW-120 EX Serial to Ethernet Converter for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

serial-to-ethernet : Interface
10/100Mb RJ45 (Megabit) Ports	Yes : 1 Port (or 10 Mbit/s)
100BaseFX Ports	No
Digital Input Channels	No
Digital Output Channels	No
Alarm Contact Channels	No
Magnetic Isolation Protection	No
Protocols	TCP client and TCP server, UDP, ICMP, IGMP, HTTP, ARP, Transparent
serial-to-ethernet : Serial Interface
Number of Ports	2 Ports
Serial Standards	RS-232
Connector	9-pin D-sub male (DTE)
Console Port	No
serial-to-ethernet : Serial Communication Parameters
Baudrate	300 bit/s – 115.2 kbit/s
Data Bits	7 or 8
Stop Bits	1 or 2
Parity	Odd, even or none
Flow Control	None
Isolation	Yes : Power 2 kVrms Ethernet 1; 1.5 kVrms
serial-to-ethernet : Serial Signals
RS-232	-
RS-422	-
RS-485-4w	-
RS-485-2w	-
serial-to-ethernet : Communication details
Wireless Standards	-
Maximum data transfer speed	-
Maximum direct range	-
serial-to-ethernet : General
Management	-
Compatible operating systems	-
Fixed TTY Drivers	-
Linux Real TTY Drivers	-
MTBF	MIL-HDBK-217K: 1,000,000 hours
Automatic Reboot Trigger	-
serial-to-ethernet : Power Requirements
Connection	Detachable screw terminal
Input Voltage	12 to 48 VDC
Input Current	200 mA @ 12 VDC, 100 mA @ 24 VDC, 50 mA @ 48 VDC
serial-to-ethernet : Security
Security	No
Encryption	No
Authentication	No
serial-to-ethernet : Features and capabilities
Display	No
serial-to-ethernet : Physical Characteristics
Dimensions	34 x 123 x 121 mm (1.33 x 4.84 x 4.76 in)
Installation	DIN-rail mounting
Standards and Certifications	MIL-HDBK-217K; IP21; EMC: EN 61000-6-1, Immunity for residential, commercial and light-industrial environments, EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission industrial environments, EN 50121-4, Railway signalling and telecommunications apparatus, IEC 62236-4, Railway signalling and telecommunications apparatus; Safety: UL/CSA/IEC/EN 60950, IT equipment; IECEx: Explosive atmosphere, IEC 60079-0, General requirements, IEC 60079-15, Equipment protected by type of protection “n”; ATEX: Explosive atmosphere, IEC 60079-0, General requirements, IEC 60079-15, Equipment protected by type of protection “n”
Housing	PC / ABS
Operating Temperature	–25 to +70ºC (–13 to +158ºF)
Storage Temperature	–40 to +70ºC (–40 to +158ºF)
Operation Humidity	5 to 95% relative humidity
Weight	0.2Kg

Datasheet
