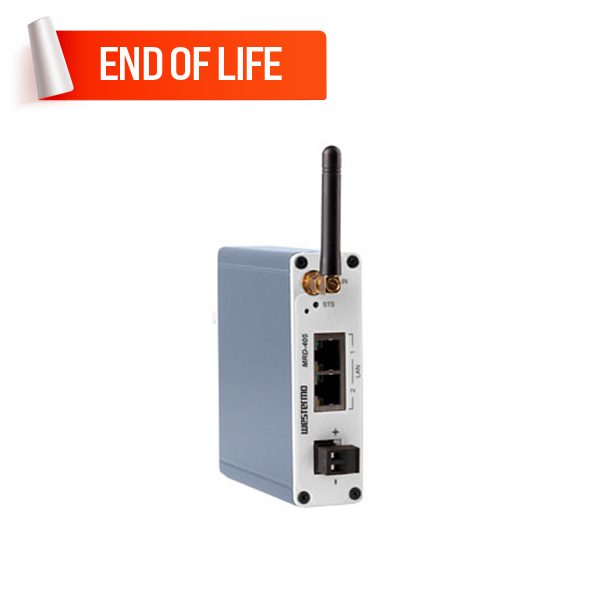

Westermo MRD-405 Dual SIM Industrial 4G Router

Westermo MRD-405 Dual SIM Industrial 4G Router
Westermo MRD-405 Dual SIM Industrial 4G Router
Westermo MRD-405 Dual SIM Industrial 4G Router
Westermo MRD-405 Dual SIM Industrial 4G Router
Westermo MRD-405 Dual SIM Industrial 4G Router

  • Access SCADA systems, HMI, and PLCs remotely
  • Cellular 2G / 3G / 4G connection
  • 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector)
  • 1 x Mini SIM slot (3 volts SIM supported)
  • 12 to 24 VDC input power range (Wide Range 10 to 36 VDC)
  • Compact casing with DIN-rail mounting
  • -40 to +70 °C operating temperature range

0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-40 to 70°C)
  • Relative Humidity (0 to 90% relative humidity non-condensing)
  • IP protection (IP40)
  • Shock (EN 61373)
  • Vibration (EN 61373)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 2-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
Quickview
Westermo Cybox AP 3-W WLAN Dual Radio Railway Access Point
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo Cybox GW 2-P Mobile Wireless Gateway
Quickview
Westermo Cybox GW 2-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox GW-P Mobile Wireless Gateway
Quickview
Westermo CyBox GW-P Mobile Wireless Gateway
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox LTE 2-W LTE and WLAN Router
Quickview
Westermo CyBox LTE 2-W LTE and WLAN Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 2-A Automotive Wireless Router
Quickview
Westermo CyBox RT 2-A Automotive Wireless Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
Quickview
Westermo CyBox RT 3-W Wi-Fi 5 Wave 2 Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
Quickview
Westermo GW1042M-QFR-DCn0936 Dual SIM Industrial 4G LTE Router
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Routers , Cellular LTE Routers , Wireless & Cellular Routers , Cellular Gateways & Routers , Industrial Data Communications , Industrial Cellular Solutions , Wireless Routers , Routers , Westermo MRD-405

Remote access removes boundaries, eliminates the need for time-consuming site visits, and provides a network infrastructure suitable for today’s “always-on” society. A compact design bundled with all interfaces and LEDs in the front makes the unit extremely well suited for industrial applications. Easy integration with other devices is achieved using the built-in two-port Ethernet switch.

The stability of mobile connections can be affected by a variety of parameters, and in order to ensure constant connectivity, the MRD-series features the customer-praised connection manager. The unit will monitor the cellular connection and, without human interaction, solve most network-related issues, preventing unnecessary power cycle site visits!

Devices connected to the Internet require countermeasures against cyber threats. The MRD-405 offers protection of transmissions from malicious eavesdroppers via encrypted communication tunnels (VPN), and features a simple, yet powerful, packet inspection firewall.

Configuring the unit is very easy with the built-in web interface; no need for special AT-commands or similar. The device can also provide both management and monitoring via SMS, for example, an SMS could be sent to start a VPN.


You can also find the Merlin-3103-T2G-QFR-G-DCi0936 and Merlin-3103-T2G-PFO-DCi0936 models in the Wireless Routers.


Explore our extensive range of industrial automation products, such as the Westermo MRD-405 Dual SIM Industrial 4G Router in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

3g modem : Interface
SIM card slotYes : 1 x Mini SIM slot (3 volts SIM supported)
Ethernet PortsYes : 2 x 10 Mbit/s or 100 Mbit/s Ethernet ports (RJ-45 connector)
USBNo
Digital Input and OutputNo
Serial portNo
Alert OutputNo
Band Options2G Frequency (MHz): 900/1800; 3G Frequency (MHz): B1 (2100), B5 (850), B8 (900); 4G Frequency (MHz): B1 (2100), B3 (1800), B5 (850), B7 (2600), B8 (900), B20 (800)
Cellular StandardsGSM, 3G, UMTS, LTE
Cellular Antenna Connectors1 x SMA female (Main)
WLAN StandardsNo
WLAN Antenna ConnectorNo
GPS Antenna ConnectorYes
3g modem : Radio specifications
Radio Connection type-
Maximum data transfer speed of 2G-
Maximum data transfer speed of 3G-
Maximum data transfer speed of 4G-
WiFi Radio Frequency-
3g modem : Software Specifications
Routing RedundancyNo
VPNIPsec VPN, OpenVPN, PSK, X.509, SSL VPN client
FirewallACL, NAT, Port Forwarding
Time ManagementNo
ManagementWeb interface (HTTP and HTTPS), Command Line Interface (CLI) via SSHv2 and TELNET, SNMPv1/v2c/v3, SMS Control, Flexible alarm/event handling system, Syslog (log files and remote syslog server), SNTP (NTP client), DHCP server, DDNS (Dynamic DNS update client)
3g modem : General
LED IndicatorsSTS
MTBF1.978.000 hours
Operating modeRouter, LTE Modem
3g modem : Standards and protocols
ProtocolsSCEP, TCP/IPv4, RADIUS, PPP Dial in/Dial out
3g modem : Features and capabilities
Send and receive SMSYes
3g modem : Security
Security and EncryptionNo
AuthenticationNo
3g modem : Power Requirements
Power Connector-
Power Consumption (Output Adapter)Not registered: 44 mA, 1.056 W; GSM and UMTS registered: 50 mA, 1.2 W; GSM XMIT average: 69 mA, 1.656 W; GSM XMIT peak: 110 mA, 2.64 W; UMTS XMIT average: 68 mA, 1.632 W; UMTS XMIT peak: 68 mA, 1.635 W; UMTS/LTE Idle: 86 mA, 2.064 W; UMTS/LTE Avarage send/receive: 98 mA, 2.352 W; UMTS/LTE Max send/receive: 110 mA, 2.64 W
Input Voltage12 to 24 VDC (Wide Range 10 to 36 VDC)
POE SupportNo
Input Current60 mA at 24 VDC
Reverse Polarity ProtectionSupported
3g modem : Buttons
Power buttonNo
ResetYes
3g modem : Physical Characteristics
InstallationDIN-rail mounting
Dimensions30.5 x 103 x 103 mm (1.20 x 4.06 x 4.06 inches)
Housing-
Weight0.25Kg
Operating Temperature-40 to +70°C (-40 to +158°F)
Storage Humidity0 to 95% relative humidity non condensing
Storage Temperature-40 to +85°C (-40 to +185°F)
Type of UseIndustrial environment
Standards and CertificationsIngress protection: IP40; MIL-217-F; Certifications: CE according to RED 2014/53/EU, RoHS, ACMA/RCM; EMC: EN 301489-1, EN 301489-19, EN 301489-52; Safety: EN/IEC 62368-1, Safety Requirements for audio/video, information and communication technology equipment; Radio spectrum usage: EN 301908-1, EN 301908-2, EN 301908-13; Shock and vibration: EN 61373 Rail Class A - Bodymounted
