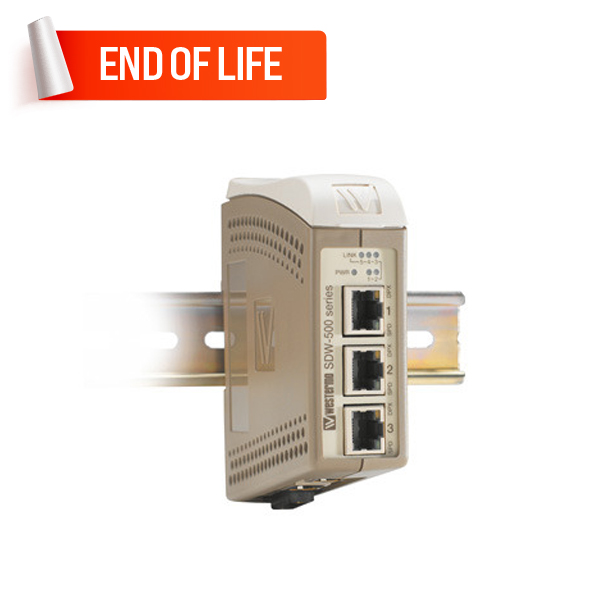

Westermo SDW-550 E-mark Unmanaged Ethernet Switch

Westermo SDW-550 E-mark Unmanaged Ethernet Switch
Westermo SDW-550 E-mark Unmanaged Ethernet Switch
Westermo SDW-550 E-mark Unmanaged Ethernet Switch
Westermo SDW-550 E-mark Unmanaged Ethernet Switch
Westermo SDW-550 E-mark Unmanaged Ethernet Switch
  • Industrial Ethernet 5-Port Switch
  • Supports E-Mark,  Road Vehicles, 10R-04 7216 standard
  • 5 x 10/100 Mbit/s Base T Ethernet Ports (RJ-45)
  • Dual Redundant 10 - 57 VDC power inputs
  • Purpose-built DIN rail casing with integral clip
  • -25 to +70°C operating temperature range
0 reviews • Write a review
Datasheet
  • Operating Temperature (-25 to 70°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP21)
  • Marine
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Westermo PII-2G PoE Injector
Quickview
Westermo PII-2G PoE Injector
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo PSI-010-FT2G-P8G PoE Switch
Quickview
Westermo PSI-010-FT2G-P8G PoE Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo PSI-1010G-24V Unmanaged Ethernet Switch
Quickview
Westermo PSI-1010G-24V Unmanaged Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo PSI-1010G-48V Unmanaged Ethernet Switch
Quickview
Westermo PSI-1010G-48V Unmanaged Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo PSI-660G-24V Unmanaged Ethernet Switch
Quickview
Westermo PSI-660G-24V Unmanaged Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo SandCat-2305-F1-MM-T4-LV Unmanaged Ethernet Switch
Quickview
Westermo SandCat-2305-F1-MM-T4-LV Unmanaged Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo SandCat-2305-F1-SM-T4-LV Unmanaged Ethernet Switch
Quickview
Westermo SandCat-2305-F1-SM-T4-LV Unmanaged Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Westermo SandCat-2305-T5-LV Unmanaged Ethernet Switch
Quickview
Westermo SandCat-2305-T5-LV Unmanaged Ethernet Switch
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Data Communications , Road Transportation Products , Marine Products , Ethernet Switches , Switches , Westermo SDW-550

The SDW-550 E-mark is an unmanaged 5-port industrial Ethernet switch designed for easy use in road vehicles. The unit supports 802.1Q long packets which allows all standard industrial Ethernet protocols to be used.

The SDW-550 E-mark is designed for use in industrial applications and so has dual power inputs for 10 to 57 VDC operation. Total galvanic isolation between each port is reinforced by the unique isolation provided between each chassis screen helping to avoid ground loop currents. The IP 21 rating ensures that the unit can be installed in locations where condensed water may occur.

Only industrial-grade components are used which gives the SDW-550 an MTBF of 675,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts. Both Westermo and external test houses have tested the SDW-550 to meet numerous EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments.

Network diagnostics are simplified with the inclusion of port mirroring on one port allowing data flow through the switch to be monitored using a network analyzer. All five ports can have data rate and flow control locked by the DIP switch which can eliminate problems with old legacy Ethernet equipment that is unable to support auto negotiation.


End of Life Product - No Replacement

Please note that the SDW-550 has been phased out. You can explore the SDI-862-MM-SC2, SDW-550-T5G, and SDW-541-F1G-T4G in the Unmanaged Ethernet Switches.


Inquire about the Westermo SDW-550 E-mark Unmanaged Ethernet Switch, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports5 Ports
10/100Mb RJ45 (Megabit) PortsYes : 5 Ports
10/100/1000Mb RJ45 (Gigabit) PortsNo
100Mb Fiber optic multi mode (Megabit) PortsNo
100Mb Fiber optic single mode (Megabit) PortsNo
100Mb SFP Fiber optic (Megabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsNo
10/100Mb (Megabit) POE PortsNo
10/100/1000Mb (Gigabit) POE PortsNo
Other portsNo
switch and hub : Features and capabilities
BackupNo
switch and hub : LED Indicators
LED Per PortYes
switch and hub : Power Requirements
Input Current320 mA @ 12VDC
Power Input Plugin ( Redundant )Yes
Input Voltage12 –48 VDC, polarity protected
Operating Voltage9.6 – 57.6 VDC
Power Consumption-
switch and hub : General
Fan / FanlessFanless
MTBFMIL-HDBK-217F-N2: 1,347,000 hours
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 1
Switch typeUnManaged
Port AggregationNo
switch and hub : Physical Characteristics
Dimensions34 x 123 x 121 mm (1.33 x 4.84 x 4.76 in)
HousingPlastic
InstallationDIN-rail mounting
Operating Temperature-25 to +70ºC (-13 to +158ºF)
Operation Humidity5 to 95% (non-condensing)
Standards and CertificationsIngress protection: IP21; MIL-HDBK-217F-N2; EMC: EN 61000-6-2, Immunity industrial environments, EN 61000-6-4, Emission residential environments, E-Mark, Road Vehicles, 10R-04 7216 (applicable only for 3644-6001); Safety: UL 60950-1, IT equipment; Marine: DNV rules for classification - Ships and offshore units
Storage Temperature-25 to +70ºC (-13 to +158ºF)
Weight0.2Kg
switch and hub : Standards and protocols
Protocols and work standards802.1Q
Protocols and management standards-
switch and hub : Package Checklist
Hardware installation guideYes
Power adapterNo
Power cableNo
