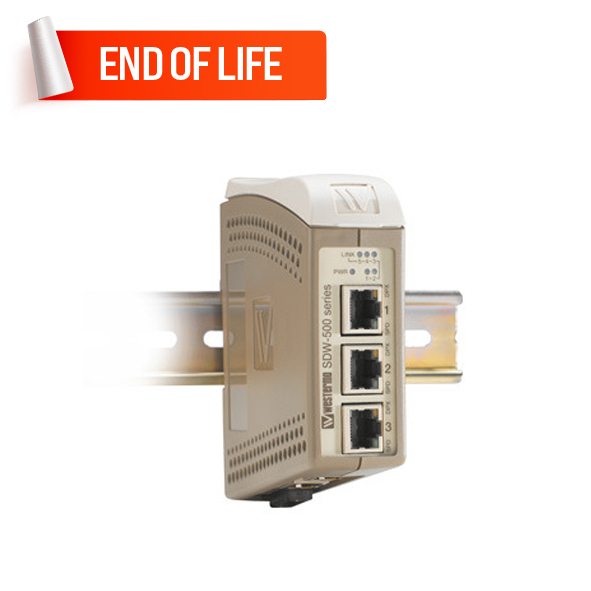

Westermo SDW-541-MM-ST2 Unmanaged Ethernet Switch

Westermo SDW-541-MM-ST2 Unmanaged Ethernet Switch
Westermo SDW-541-MM-ST2 Unmanaged Ethernet Switch
Westermo SDW-541-MM-ST2 Unmanaged Ethernet Switch
Westermo SDW-541-MM-ST2 Unmanaged Ethernet Switch
Westermo SDW-541-MM-ST2 Unmanaged Ethernet Switch

  • Industrial Ethernet 5-Port Switch
  • 4 x 10/100 Mbit/s Base T Ethernet ports (RJ-45)
  • 1 x 100Base-FX Port (Multi-mode ST connector)
  • 2 KM Typical data transmission distance on fiber
  • Dual Redundant 10 - 57 VDC power inputs
    • Purpose-built DIN rail casing with integral clip
    • -25 to +70°C operating temperature range

    0 reviews • Write a review
    Datasheet User Manual
    • Operating Temperature (-25 to 70°C)
    • Relative Humidity (5% to 95% RH)
    • IP protection (IP21)
    • Marine
    $0.00
    Ex Tax: $0.00
    Buy Now ENQUIRE NOW
    Add to Wish List Compare this Product
    Westermo PII-2G PoE Injector
    Quickview
    Westermo PII-2G PoE Injector
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo PSI-010-FT2G-P8G PoE Switch
    Quickview
    Westermo PSI-010-FT2G-P8G PoE Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo PSI-1010G-24V Unmanaged Ethernet Switch
    Quickview
    Westermo PSI-1010G-24V Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo PSI-1010G-48V Unmanaged Ethernet Switch
    Quickview
    Westermo PSI-1010G-48V Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo PSI-660G-24V Unmanaged Ethernet Switch
    Quickview
    Westermo PSI-660G-24V Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo SandCat-2305-F1-MM-T4-LV Unmanaged Ethernet Switch
    Quickview
    Westermo SandCat-2305-F1-MM-T4-LV Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo SandCat-2305-F1-SM-T4-LV Unmanaged Ethernet Switch
    Quickview
    Westermo SandCat-2305-F1-SM-T4-LV Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Westermo SandCat-2305-T5-LV Unmanaged Ethernet Switch
    Quickview
    Westermo SandCat-2305-T5-LV Unmanaged Ethernet Switch
    $0.00
    Ex Tax:$0.00
    Add to Wish List Compare this Product
    Tags: Industrial Ethernet Switches , Unmanaged Switches , Unmanaged Ethernet Switches , Industrial Data Communications , Marine Products , Ethernet Switches , Switches , Westermo SDW-541

    The SDW-541 is an unmanaged 5-port (4TX and 1FX) industrial Ethernet switch designed for easy use in heavy-duty industrial applications. The unit supports 802.1Q long packets, which allows all standard industrial Ethernet protocols to be used. Some standard fibre optic connection types are supported, including LC, SC, and ST.

    The SDW-541 is designed for use in industrial applications and so has dual power inputs for 10 to 57 VDC operation. Total galvanic isolation between each port is reinforced by the unique isolation provided between each chassis screen, helping to avoid ground loop currents. The IP21 rating ensures that the unit can be installed in locations where condensed water may occur.

    Only industrial-grade components are used, which gives the SDW-541 an MTBF of 500,000 hours and ensures a long service life. A wide operating temperature range of –25 to +70°C (–13 to +158°F) can be achieved with no moving parts.

    The SDW-541 has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock standards, all to the highest levels suitable for heavy industrial environments. Network diagnostics are simplified with the inclusion of port mirroring on one port allowing data flow through the switch to be monitored using a network analyzer. All five ports can have data rate and flow control locked by DIP switches, which can eliminate problems with old legacy Ethernet equipment that is unable to support auto negotiation.


    End of Life Product - Replacement Available

    Please note that the SDW-541 has been phased out and replaced by the SDW-541-F1G-T4G.


    You can Buy the Westermo SDW-541-MM-ST2 Unmanaged Ethernet Switch via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

    switch and hub : Interface
    Number of ports5 Ports
    10/100Mb RJ45 (Megabit) PortsYes : 4 Ports
    10/100/1000Mb RJ45 (Gigabit) PortsNo
    100Mb Fiber optic multi mode (Megabit) PortsYes : 1 ST Port
    100Mb Fiber optic single mode (Megabit) PortsNo
    100Mb SFP Fiber optic (Megabit) PortsNo
    1000Mb SFP Fiber optic (Gigabit) PortsNo
    10/100Mb (Megabit) POE PortsNo
    10/100/1000Mb (Gigabit) POE PortsNo
    Other portsNo
    switch and hub : Features and capabilities
    BackupNo
    switch and hub : LED Indicators
    LED Per PortYes
    switch and hub : Power Requirements
    Input Current450 mA @12VDC
    Power Input Plugin ( Redundant )Yes
    Input Voltage12 –48 VDC, polarity protected
    Operating Voltage9.6 – 57.6 VDC
    Power Consumption-
    switch and hub : General
    Fan / FanlessFanless
    MTBFMIL-HDBK-217K: 500,000 hours
    switch and hub : Switch specifications
    Most forwarding speed-
    Network working layersLayer 1
    Switch typeUnManaged
    Port AggregationNo
    switch and hub : Physical Characteristics
    Dimensions34 x 123 x 121 mm (1.33 x 4.84 x 4.76 in)
    HousingMetal
    InstallationDIN-rail mounting
    Operating Temperature-25 to +70ºC (-13 to +158ºF)
    Operation Humidity5 to 95% (non-condensing)
    Standards and CertificationsIngress protection: IP21; MIL-HDBK-217K; EMC: EN 61000-6-2, Immunity industrial environments, EN 61000-6-3, Emission residential environments, EN 61000-6-4, Emission industrial environments; Safety: EN 60950-1, IT equipment; Marine: DNV Standard for Certification no. 2.4
    Storage Temperature-25 to +70ºC (-13 to +158ºF)
    Weight0.2Kg
    switch and hub : Standards and protocols
    Protocols and work standards802.1Q
    Protocols and management standards-
    switch and hub : Package Checklist
    Hardware installation guideYes
    Power adapterNo
    Power cableNo
