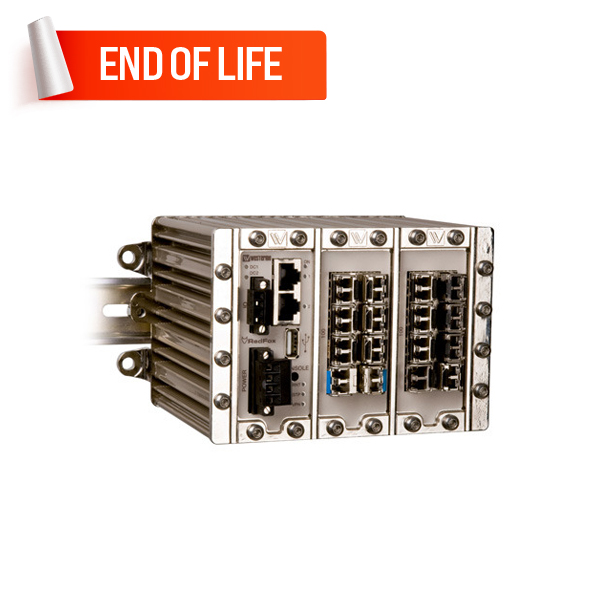

Name: Westermo RFI-18-F16 Industrial Routing Switch
Brand: WESTERMO
Availability: OutOfStock

Westermo RFI-18-F16 Industrial Routing Switch

Layer 3 functionality switching and routing
2 x 10 Mbit/s or 100 Mbit/s Ethernet TX Ports (RJ-45)
16 x 100 Mbit Ethernet SFP Ports
Dual Redundant 16 – 60 VDC Power input range
IP40-rated Robust aluminum housing
DIN-rail mount installation design
–40 to +70°C operating temperature range

Brand: WESTERMO
Model: 3641-3420

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 70°C)
Relative Humidity (5% to 95% RH)
IP protection (IP40)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)
Hazardous Location (ATEX Zone 2 Ex nA nC IIC T4 Gc)

Marine
Oil & Gas
Railway Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

Westermo L205-S1 Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo L205-S1-EX Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo L206-F2G Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo L206-F2G-EX Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo L206-S2 Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo L206-S2-EX Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo L208-F2G-S2 Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

Westermo L208-F2G-S2-12VDC Managed Ethernet Switch

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Ethernet Switches , Industrial Data Communications , Managed Layer 3 Switches , Layer 3 Switches , Managed Layer 2 Switches , Layer 2 Switches , Marine Products , Railway Transportation Products , Managed Ethernet Switches , Ethernet Switches , Managed Switches , Switches , Routers , Westermo RFI-18-F16

RedFox is designed for industrial applications with many functions designed for easy use. The high bandwidth design allows for up to 8 Gbit ports, as well as having other ports that can deliver 10/100 Mbit. The RedFox is powered by WeOS (Westermo Operating System), which is our cross-platform solution providing strong future proofing and ease of use.

In RedFox, the design of the electronics is critical to ensure long service life in extreme operating environments. Only industrial-grade components are used, which gives the RedFox an MTBF of 520,000 hours. The ultra robust RedFox has a heavy-duty aluminium enclosure for maximum strength and heat dissipation, ensuring that the wide temperature range –40 to +70°C (–40 to +158°F) can be achieved with no moving parts or cooling holes in the case.

RedFox has been tested both by Westermo and external test houses to meet many EMC, isolation, vibration, and shock tests, all to the highest levels suitable for heavy industrial environments and rail trackside applications.

You can also find the Lynx 3000 Series, Redfox-5528 Series, Viper-3512 Series, and Viper-3520 Series in the Managed Ethernet Switches.

Discover industrial automation solutions appropriate to your needs, and easily inquire about the Westermo RFI-18-F16 Industrial Routing Switch through our user-friendly website via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports	18 Ports
10/100Mb RJ45 (Megabit) Ports	No
10/100/1000Mb RJ45 (Gigabit) Ports	Yes : 2 Ports (or 10 Mbit/s)
100Mb Fiber optic multi mode (Megabit) Ports	No
100Mb Fiber optic single mode (Megabit) Ports	No
100Mb SFP Fiber optic (Megabit) Ports	Yes : 16 Ports
1000Mb SFP Fiber optic (Gigabit) Ports	No
10/100Mb (Megabit) POE Ports	No
10/100/1000Mb (Gigabit) POE Ports	No
Other ports	Yes : 1 x Console Port (2.5 mm jack), 1 x USB 2.0 host interface, 1 x Digital I/O (4-position detachable screw terminal)
switch and hub : Features and capabilities
Backup	No
switch and hub : LED Indicators
LED Per Port	Yes
switch and hub : Power Requirements
Input Current	1110 mA @ 20VDC
Power Input Plugin ( Redundant )	Yes
Input Voltage	20 to 48 VDC
Operating Voltage	16 to 60 VDC
Power Consumption	-
switch and hub : General
Fan / Fanless	Fanless
MTBF	MIL-HDBK-217K: 520,000 hours
switch and hub : Switch specifications
Most forwarding speed	-
Network working layers	Layer 3
Switch type	Managed
Port Aggregation	No
switch and hub : Physical Characteristics
Dimensions	175 x 100 x 122 mm (6.88 x 3.93 x 4.80 in)
Housing	Aluminium
Installation	DIN-rail mounting
Operating Temperature	–40 to +70ºC (–40 to +158ºF)
Operation Humidity	5-95% relative humidity
Standards and Certifications	Ingress protection: IP40; MIL-HDBK-217K; EMC: EN 55024, EN 55024 A1, EN 55024 A2, Electromagnetic compatibility – Immunity IT equipment, EN 55022, EN 55022 A1, Information technology equipment. Radio disturbance characteristics. Limits and methods of measurement, EN 61000-6-2, Electromagnetic compatibility – Immunity for industrial environments, EN 61000-6-4, Electromagnetic compatibility – Emission for industrial environments, EN 50121-4, Railway applications – Electromagnetic compatibility – Emission and immunity of the signalling and telecommunications apparatus, FCC part 15 Class A; Safety: EN 60950-1, IT equipment; Marine: DNV Standard for Certification no. 2.4
Storage Temperature	–40 to +85ºC (–40 to +185ºF)
Weight	1.5kg
switch and hub : Standards and protocols
Protocols and work standards	-
Protocols and management standards	-
switch and hub : Package Checklist
Hardware installation guide	Yes
Power adapter	No
Power cable	No
