Operating Temperature (-60 to 85°C)You can also find the 3623-0810, 3623-0811, 3623-0813, 3623-0814, 3623-0815, and 3623-0816 models in the Cables and Antennas.
Discover industrial automation solutions appropriate to

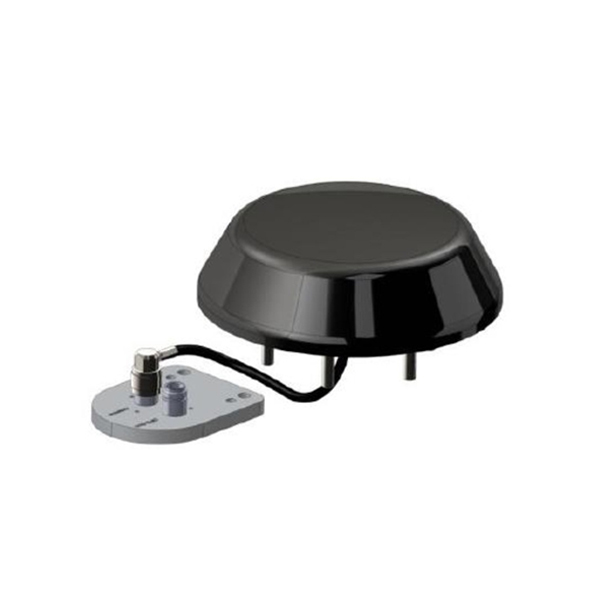

your needs, and easily inquire about the Westermo 3623-0812 WLAN Antenna through our user-friendly website
via one of our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and
Oman).
| Antenna : Antenna Characteristics | |
| Frequency | WLAN 2.4 -2.5 GHz, 5.18 – 5.835 GHz |
| Antenna Type | Multiband-Train Antenna - WLAN 2.4/5.8 (MIMO) - LTE 700 (MIMO) - GSM-R - GSM 1800 - UMTS - LTE 2600 (MIMO) - GPS - GLONASS - Galileo - BeiDou |
| Antenna Gain | WLAN 2.4 GHz 9.1 dBi, WLAN 5.8 GHz 10.1 dBi |
| Connector | 5 x N-type female |
| Impedance | 50 Ω |
| HPBW/Horizontal | - |
| HPBW/Vertical | - |
| Polarization | WLAN Crosspolar, Vertical |
| Power Handling | 50 W |
| V.S.W.R. | - |
| Antenna : Physical Characteristics | |
| Dimensions | D, H: 200mm, 60mm |
| Operating Temperature | -60°C … +85°C |
| Storage Temperature | -60°C … +85°C |
| Length | - |
| Cable Length | - |
| Weight | 1500g |
| Ambient Relative Humidity | - |
| Housing | Plastic case UV-resistance |
| Installation | - |
| IP Rating | IP6x |
