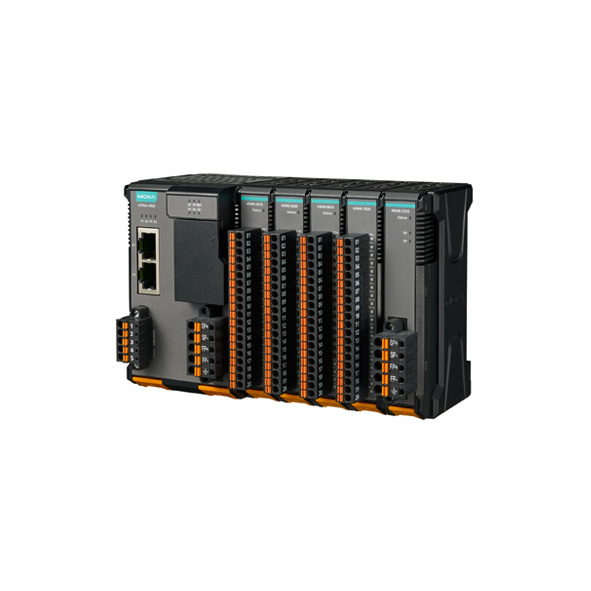

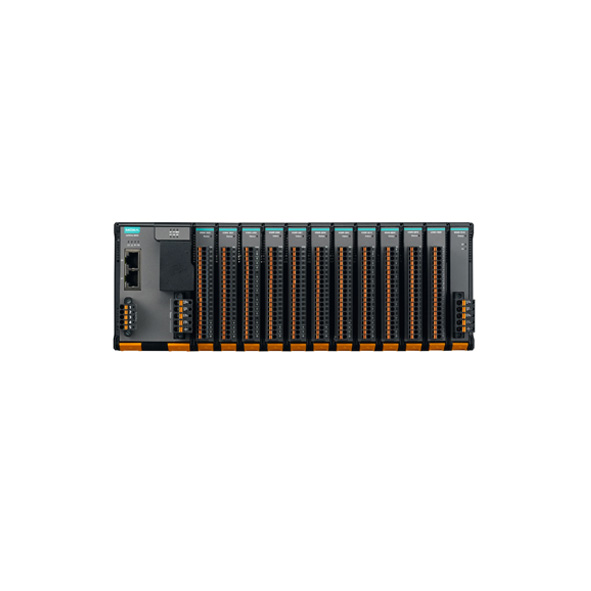

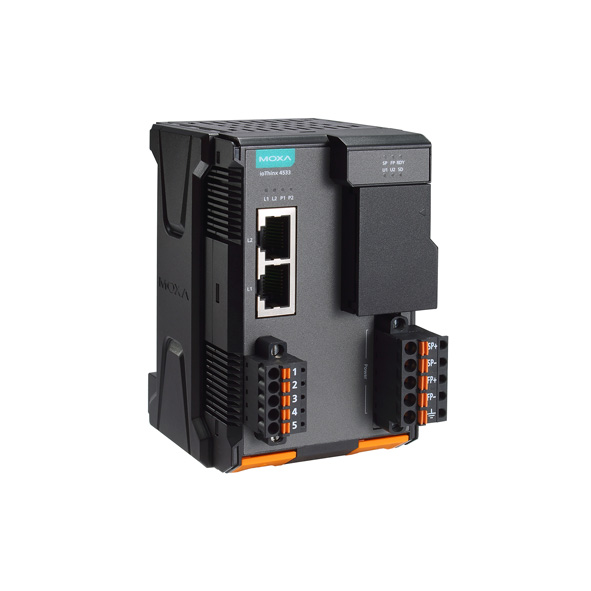

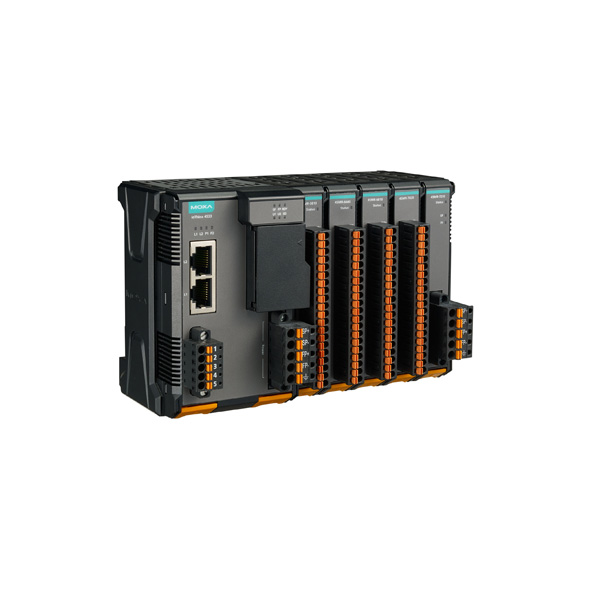

MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter

MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter
MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter
MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter
MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter
MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter
MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter
MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter
MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter
MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter

  • 2 x 10/100Mbps T(x) Ethernet ports
  • 1 x RS-232/422 or 2 x RS-485-2w Serial ports
  • Supports TPM v2.0 (optional)
  • Supports C/C++, Python Languages
  • Easy tool-free installation and removal
  • Supports up to 64 I/O modules
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: ioThinx 4533-LX-T
0 reviews • Write a review
Datasheet
  • Hazardous Location (Class 1 Division 2, ATEX Zone 2, IECEx)
  • Operating Temperature (-40 to 75°C)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Relative Humidity (5 to 95% non-condensing)
  • Oil & Gas
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA 45ML-5401 Remote I/O Module
Quickview
MOXA 45ML-5401 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45ML-5401-T Remote I/O Module
Quickview
MOXA 45ML-5401-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600 Remote I/O Module
Quickview
MOXA 45MR-1600 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600-T Remote I/O Module
Quickview
MOXA 45MR-1600-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601 Remote I/O Module
Quickview
MOXA 45MR-1601 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601-T Remote I/O Module
Quickview
MOXA 45MR-1601-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404 Remote I/O Module
Quickview
MOXA 45MR-2404 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404-T Remote I/O Module
Quickview
MOXA 45MR-2404-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Controllers & I/Os , Advanced Controllers & I/Os , Advanced Controllers , Advanced I/Os , Remote I/O Adapters , Adapters , Remote Automation , Industrial Automation Solutions , Factory Automation Products , Oil & Gas Products , Controllers , I/Os , MOXA ioThinx 4530 Series

The ioThinx 4530 Series is a versatile Linux-based controller with support for I/O and serial expansion modules. Equipped with a Cortex-A7 dual-core CPU, 2 GB of memory, and 3-in-1 serial interfaces, the ioThinx 4530 Series offers robust performance. These controllers can support up to 64 units with the dedicated 45MR Series modules, including digital and analog I/O, relay, and temperature modules. In addition, the ioThinx 4530 Series supports up to five 45ML Series serial modules.

Easy Tool-free Installation and Removal

The ioThinx 4500 Series has a unique mechanical design that reduces the time required for installation and removal. In fact, screwdrivers and other tools are not required for any part of the hardware installation, including mounting the device on a DIN rail, as well as connecting the wiring for both communication and I/O signal acquisition. Furthermore, no tools are required to remove the ioThinx from a DIN rail. Removing all of the modules from a DIN rail is also easy using the latch and release tab.


You can also find the ioThinx 4533-LX model in the Smart Remote I/O.


Easy World Automation offers the easiest way to buy the MOXA ioThinx 4533-LX-T Modular Remote I/O Adapter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

MODULAR CONTROLLER : COMPUTER
CPUArmv7 Cortex-A7 dual-core 1 GHz
OSMoxa Industrial Linux 3 (Debian 11, kernel 5.10) (See www.moxa.com/MIL)
ClockReal-time clock with capacitor backup
RAMDRAM: 2 GB DDR3L, MRAM: 128 kB
MicroSD Slot1 x Slot (up to 32 GB)
MODULAR CONTROLLER : CONTROL LOGIC
LanguageC/C++, Python
MODULAR CONTROLLER : ETHERNET INTERFACE
LAN Ports2 x 10/100BaseT(X) Ports (RJ45 connector), Auto negotiation speed
Magnetic Isolation Protection1.5 kV (built-in)
MODULAR CONTROLLER : SERIAL INTERFACE
No. of Ports1 x RS-232/422 or 2 x RS-485-2w
Serial StandardsRS-232/422/485 (software selectable)
ConnectorSpring-type Euroblock terminal
Serial Communication ParametersBaudrate: 300, 600, 1200, 1800, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps; Flow Control: RTS/CTS; Parity: None, Even, Odd; Stop Bits: 1, 2; Data Bits: 7, 8
Serial SignalsRS-232: TxD, RxD, RTS, CTS, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND
MODULAR CONTROLLER : POWER REQUIREMENTS
Power Consumption1940 mA @ 12 VDC
Input VoltageSystem: 12 to 48 VDC, Field: 12/24 VDC
Power ConnectorSpring-type Euroblock terminal
MODULAR CONTROLLER : SECURITY
AuthenticationLocal database
EncryptionAES-256, SHA-256
SecuritySSHv2
MODULAR CONTROLLER : GENERAL
MTBF954,606 hrs
Management-
Supported Protocols-
MODULAR CONTROLLER : PHYSICAL CHARACTERISTICS
Slots-
HousingPlastic
Dimensions60.3 x 99 x 75 mm (2.37 x 3.9 x 2.96 in)
Weight207.7 g (0.457 lb)
InstallationDIN-rail mounting
Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
Standards and CertificationsEMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1000 MHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 61010-2-201; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Hazardous Locations: Class I, Division 2, ATEX; Telcordia SR332
AltitudeUp to 4000 m
