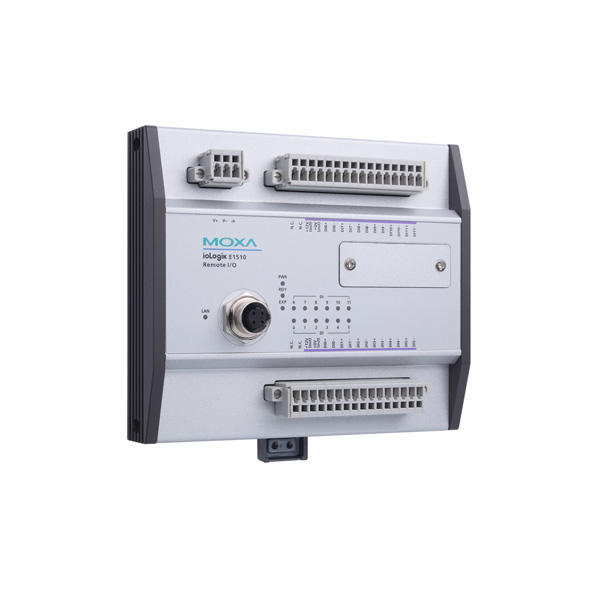

MOXA ioLogik E1510-M12-CT-T Ethernet Remote I/O

MOXA ioLogik E1510-M12-CT-T Ethernet Remote I/O
MOXA ioLogik E1510-M12-CT-T Ethernet Remote I/O
MOXA ioLogik E1510-M12-CT-T Ethernet Remote I/O
MOXA ioLogik E1510-M12-CT-T Ethernet Remote I/O
MOXA ioLogik E1510-M12-CT-T Ethernet Remote I/O

  • 12 x Digital Input Channels
  • 1 x 10/100BaseT(X) Port (M12 connector)
  • Supports Modbus TCP and MX-AOPC UA Server
  • 12 to 48 VDC input power range
  • Aluminum body design
  • DIN-rail and Wall mounting
  • -40 to 85°C operating temperature

  • Brand: MOXA
  • Model: ioLogik E1510-M12-CT-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA 45ML-5401 Remote I/O Module
Quickview
MOXA 45ML-5401 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45ML-5401-T Remote I/O Module
Quickview
MOXA 45ML-5401-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600 Remote I/O Module
Quickview
MOXA 45MR-1600 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600-T Remote I/O Module
Quickview
MOXA 45MR-1600-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601 Remote I/O Module
Quickview
MOXA 45MR-1601 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601-T Remote I/O Module
Quickview
MOXA 45MR-1601-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404 Remote I/O Module
Quickview
MOXA 45MR-2404 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404-T Remote I/O Module
Quickview
MOXA 45MR-2404-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Controllers & I/Os , Rugged Controllers & I/Os , Rugged Controllers , Rugged I/Os , Controllers , Ethernet Remote I/O , Remote I/O , Industrial Automation Solutions , Remote Automation , Smart Remote I/O , I/Os , MOXA ioLogik E1500 Series

The ioLogik E1500 Series Ethernet Remote I/O devices have a ruggedized aluminum housing. They are compliant with EN 50121-3-2, EN 50121-4, and essential sections of EN 50155 standard, which are necessary for electronic equipment used in rolling stock applications. This rugged platform also features a wide operating temperature range of -40 to 85°C to deliver consistent performance even in harsh environments.

Ruggedly Designed for Monitoring Rolling Stock

The ioLogik E1500 Series Ethernet remote I/O devices have durable aluminum housing and are compliant with EN 50121-4 and a portion of EN 50155 specifications required for electronic equipment used in railway applications. The ioLogik E1500 design strictly conforms to EN standards, including not only EMC requirements but also with regard to shock, vibration, extended temperature range, humidity, and power supply variations.

Channel-to-Channel Isolation

With this topology, I/O channels on the ioLogik E1500 are individually isolated from one another to ensure that data communication is highly stable. For example, a lightning strike that affects one channel will not affect devices connected to other channels on the same ioLogik E1500.


You can also find the ioLogik E1510-M12-T, ioLogik E1512-M12-CT-T, and ioLogik E1512-M12-T models in the Smart Remote I/O.


Easy World Automation offers the easiest way to buy the MOXA ioLogik E1510-M12-CT-T Ethernet Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Remote I/O : Interface
Digital Input and OutputYes : 12 x Digital Input Channels
Adjustable digital input and outputNo
Analog Input and OutputNo
RelaysNo
Thermal sensor input (RTD)No
Thermocouple inputNo
LANYes : 1 x 10/100BaseT(X) Port (M12 D-coded 4-pin female connector)
Magnetic Isolation Protection1.5 kV (built-in)
Serial portNo
IsolationYes : 3k VDC or 2k Vrms
ButtonsReset button
Remote I/O : Serial Interface
Connector-
Serial Standards-
Serial Communication Parameters-
Serial Signals-
Remote I/O : Security
Security Functions-
Remote I/O : Standards and protocols
ProtocolsEthernet: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library
Remote I/O : General
Compatible SoftwaresMX-AOPC UA Server, ioSearch utility, MXIO
ManagementBOOTP, DHCP Client, HTTP, IPv4, TCP/IP, UDP
MTBF507,064 hrs
Remote I/O : Power Requirements
Power ConnectorSpring-type Euroblock terminal
Input Voltage12 to 48 VDC
Power Consumption150 mA @ 24 VDC
Remote I/O : LED Indicators
LED IndicatorsPWR, RDY, EXP, LAN, DI Channels
Remote I/O : Physical Characteristics
HousingAluminum
Dimensions144 x 124 x 30 mm (5.67 x 4.88 x 1.18 in)
Standards and CertificationsEMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Railway: EN 50121-4, EN 50155; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature-40 to 85°C (-40 to 185°F)
Operation Humidity5% to %95 Non-condensing
Weight825 g (1.82 lb)
Altitude2000 m
