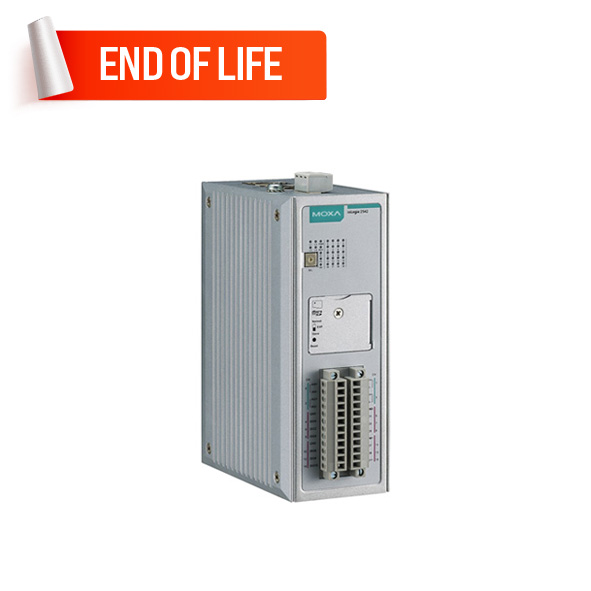

MOXA ioLogik 2542-WL1-JP-T Smart Ethernet Remote I/O

MOXA ioLogik 2542-WL1-JP-T Smart Ethernet Remote I/O
MOXA ioLogik 2542-WL1-JP-T Smart Ethernet Remote I/O
MOXA ioLogik 2542-WL1-JP-T Smart Ethernet Remote I/O
MOXA ioLogik 2542-WL1-JP-T Smart Ethernet Remote I/O
MOXA ioLogik 2542-WL1-JP-T Smart Ethernet Remote I/O
  • Supports JP Frequency Bands
  • 4 x Analog Input Channels and 12 x Configurable DIO Channels
  • 4 x 10/100BaseT(X) Switch Ports (RJ45 connector)
  • 2 x RS 232/422/485 Serial ports (8-pin RJ45 connector)
  • 12 to 48 VDC input power range
  • Supports Modbus TCP, MX-AOPC, SNMP v1/v2c, and IPsec VPN
  • IP30-rated Metal body design
  • DIN-rail and Wall mounting
  • -30 to 70° C operating temperature
  • Brand: MOXA
  • Model: ioLogik 2542-WL1-JP-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-30 to 70°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Freefall (IEC 60068-2-32)
  • IP protection (IP30)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA 45ML-5401 Remote I/O Module
Quickview
MOXA 45ML-5401 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45ML-5401-T Remote I/O Module
Quickview
MOXA 45ML-5401-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600 Remote I/O Module
Quickview
MOXA 45MR-1600 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1600-T Remote I/O Module
Quickview
MOXA 45MR-1600-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601 Remote I/O Module
Quickview
MOXA 45MR-1601 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-1601-T Remote I/O Module
Quickview
MOXA 45MR-1601-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404 Remote I/O Module
Quickview
MOXA 45MR-2404 Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA 45MR-2404-T Remote I/O Module
Quickview
MOXA 45MR-2404-T Remote I/O Module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Controllers & I/Os , Universal Controllers & I/Os , Universal Controllers , Universal I/Os , Controllers , Ethernet Remote I/O , Remote I/O , Industrial Automation Solutions , Remote Automation , Smart Remote I/O , Oil & Gas Products , Factory Automation Products , I/Os , MOXA ioLogik 2500 Series

ioLogik 2500 smart Ethernet remote I/O devices feature unique hardware and software designs, making them ideal solutions for a variety of industrial data acquisition applications. The ioLogik 2500’s hardware design includes a 4-port unmanaged Ethernet switch and 2 serial ports, enabling it to seamlessly connect to a variety of field devices.

One of the Ethernet ports can be used to link to 8 daisy-chained ioLogik E1200 expansion modules to provide more than 100 channels. The ioLogik 2500 acts as the “head” unit, with Click&Go Plus logic used to control the entire I/O array. Most importantly, a single IP is all that is required to connect the entire I/O array to your network, providing the perfect solution for industrial field sites that have an insufficient number of IP addresses.


You can also find the ioLogik 2512, ioLogik 2512-T, ioLogik 2542, and ioLogik 2542-T models in the Smart Remote I/O.


Easy World Automation offers the easiest way to buy the MOXA ioLogik 2542-WL1-JP-T Smart Ethernet Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

Remote I/O : Interface
Digital Input and OutputNo
Adjustable digital input and outputYes : 12 x Channels
Analog Input and OutputYes : 4 x Analog Input Channels
RelaysNo
Thermal sensor input (RTD)No
Thermocouple inputNo
LANYes : 4 x 10/100BaseT(X) Ports (RJ45 connector)
Magnetic Isolation Protection1.5 kV (built-in)
Serial portYes : 2 Ports
IsolationYes : 3k VDC or 2k Vrms
ButtonsReset button
Remote I/O : Serial Interface
Connector8-pin RJ45
Serial StandardsRS-232, RS-422, RS-485
Serial Communication ParametersBaudrate: 300, 1200, 1800, 2400, 4800, 7200, 9600, 19200, 38400, 57600, 115200 bps; Data Bits: 5, 6, 7, 8; Flow Control: None, RTS/CTS, XON/XOFF; Parity: None, Even, Odd; Stop Bits: 1, 2
Serial SignalsRS-232: TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND; RS-422: Tx+, Tx-, Rx+, Rx-, GND; RS-485-2w: Data+, Data-, GND; RS-485-4w: Tx+, Tx-, Rx+, Rx-, GND
Remote I/O : Security
Security FunctionsIPsec VPN: DES, 3DES, AES-128, AES-192, AES-256
Remote I/O : Standards and protocols
ProtocolsEthernet: CGI commands, Modbus TCP Client (Master), Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library, RESTful API, SNMPv1/v2c/v3, SNMPv1/v2c Trap; Serial: Modbus RTU Master
Remote I/O : General
Compatible SoftwaresMX-AOPC UA Server, MXIO library, Click&Go Plus
ManagementBOOTP, IPv4, SMTP, TCP/IP, DHCP Client
MTBF331,222 hrs
Remote I/O : Power Requirements
Power ConnectorScrew-fastened Euroblock terminal
Input Voltage12 to 48 VDC
Power Consumption406 mA @ 24 VDC
Remote I/O : LED Indicators
LED IndicatorsPWR, RDY, Serial port (P1, P2), Ethernet port (L1 to L4), I/O Channel Status (0 to 15)
Remote I/O : Physical Characteristics
HousingMetal
Dimensions61 x 157 x 115 mm (2.4 x 6.18 x 4.53 in)
Standards and CertificationsEMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Hazardous Locations: ATEX, Class I, Division 2; Safety: UL 508; Radio: EN 301 489-1/17; Radio Frequency: EN 301 908, EN 301 489-24, EN 301 511
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature-30 to 70°C (-22 to 158°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Operation Humidity5% to %95 Non-condensing
Weight1,265 g (2.79 lb)
Altitude2000 m
