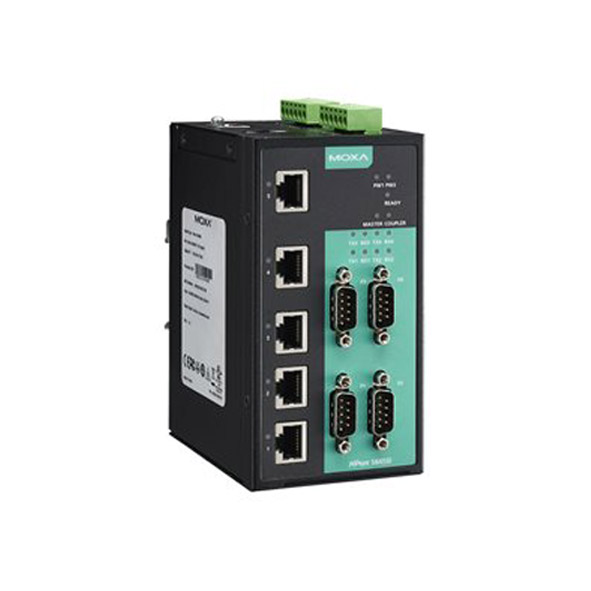

MOXA NPort S8455I-T Serial To Ethernet Device Server

MOXA NPort S8455I-T Serial To Ethernet Device Server
MOXA NPort S8455I-T Serial To Ethernet Device Server
MOXA NPort S8455I-T Serial To Ethernet Device Server
MOXA NPort S8455I-T Serial To Ethernet Device Server
MOXA NPort S8455I-T Serial To Ethernet Device Server

  • 5 x 10/100BaseT(X) Ports (RJ45 connector)
  • 4 x RS-232/422/485 Serial Ports (DB9 male connector)
  • 2 kV Isolation protection for serial ports
  • 12 to 48 VDC dual power inputs
  • DIN-rail and Wall mounting
  • Metal body design
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: NPort S8455I-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Hazardous Location (UL/cUL Class 1 Division 2)
  • Factory Automation
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA CN2510-16 Terminal Server
Quickview
MOXA CN2510-16 Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2510-16-48V Terminal Server
Quickview
MOXA CN2510-16-48V Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2510-8 Terminal Server
Quickview
MOXA CN2510-8 Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2510-8-48V Terminal Server
Quickview
MOXA CN2510-8-48V Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2610-16 Terminal Server
Quickview
MOXA CN2610-16 Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2610-16-2AC Terminal Server
Quickview
MOXA CN2610-16-2AC Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2610-8 Terminal Server
Quickview
MOXA CN2610-8 Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA CN2610-8-2AC Terminal Server
Quickview
MOXA CN2610-8-2AC Terminal Server
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Serial Device Servers , Combo Device Servers , Industrial Converters , Serial to Ethernet Device Servers , Serial to Ethernet Converters , Industrial Serial Connectivity , Factory Automation Products , Oil & Gas Products , Converters , MOXA NPort S8000 Series

The NPort S8000 Series combines an industrial device server with a full-function managed Ethernet switch with 4 RS-232/422/485 serial ports, allowing you to easily install, manage, and maintain the product. Combining a device server and switch in one product allows you to save space in your cabinet, reduce overall power consumption, and reduce costs since you will not need to purchase a switch and serial device server separately.

The NPort S8000 Series supports the complete array of NPort 5000 device server functions. You can network your existing serial devices by connecting up to 4 serial devices through Ethernet ports, with only basic configuration required. In addition, data transmission between the serial and Ethernet interfaces is bidirectional.

The NPort S8000 Series has a built-in full-function managed Ethernet switch that supports QoS, IGMP-snooping/GMRP, VLAN, Port Trunking, SNMPv1/v2c/v3, and IEEE 802.1X, allowing you to handle virtually any kind of application. Ethernet redundancy, which is used to increase the reliability and availability of your industrial Ethernet network, is provided by Moxa’s Turbo Ring and Turbo Chain technology (recovery time < 20 ms) or RSTP/STP (IEEE 802.1w/D).


You can also find the NPort S8455I, NPort S8455I-MM-SC, and NPort S8455I-MM-SC-T models in the Serial-to-Ethernet Converters.


Easy World Automation offers the easiest way to buy the MOXA NPort S8455I-T Serial To Ethernet Device Server in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

serial-to-ethernet : Interface
10/100Mb RJ45 (Megabit) PortsYes : 5 Ports
100BaseFX PortsNo
Digital Input ChannelsYes : 2 x Channels (+13 to +30 V for state 1, -30 to +1 V for state 0, Max. input current: 8 mA)
Digital Output ChannelsNo
Alarm Contact ChannelsYes : 2 x Channels (Resistive load: 1 A @ 24 VDC)
Magnetic Isolation Protection1.5 kV (built-in)
ProtocolsRSTP, Turbo Chain, Turbo Ring v1, Turbo Ring v2
serial-to-ethernet : Serial Interface
Number of Ports4 Ports
Serial StandardsRS-232/422/485
ConnectorDB9 male
Console PortYes : RS-232 (TxD, RxD, GND), 8-pin RJ45 (19200, n, 8, 1)
serial-to-ethernet : Serial Communication Parameters
Baudrate50 bps to 921.6 Kbps
Data Bits5, 6, 7, 8
Stop Bits1, 1.5, 2
ParityEven, Odd, Space, Mark, None
Flow ControlEven, Odd, Space, Mark, None
IsolationYes : 2 KV
serial-to-ethernet : Serial Signals
RS-232TxD, RxD, RTS, CTS, DTR, DSR, DCD, GND
RS-422Tx+, Tx-, Rx+, Rx-, GND
RS-485-4wTx+, Tx-, Rx+, Rx-, GND
RS-485-2wData+, Data-, GND
serial-to-ethernet : Communication details
Wireless StandardsNo
Maximum data transfer speedNo
Maximum direct rangeNo
serial-to-ethernet : General
Compatible operating systemsWindows 95/98/ME/NT/2000, Windows XP/2003/Vista/2008/7/8/8.1/10 (x86/x64), Windows 2008 R2/2012/2012 R2/2016/2019 (x64), Windows Embedded CE 5.0/6.0, Windows XP Embedded
Fixed TTY DriversSCO UNIX, SCO OpenServer, UnixWare 7, QNX 4.25, QNX 6, Solaris 10, FreeBSD, AIX 5.x, HP-UX 11i, Mac OS X, macOS 10.12, macOS 10.13, macOS 10.14, macOS 10.15
Linux Real TTY DriversKernel versions: 2.4.x, 2.6.x, 3.x, 4.x, and 5.x
MTBF287,354 hrs
Automatic Reboot TriggerBuilt-in WDT (watchdog timer)
serial-to-ethernet : Power Requirements
Connection2 removable 6-contact terminal block(s)
Input Voltage12 to 48 VDC
Input Current935 mA @ 12 VDC
serial-to-ethernet : Security
SecurityHTTPS, SSL, SSH
Encryption-
AuthenticationLocal Account Accessibility, RADIUS
serial-to-ethernet : Features and capabilities
DisplayNo
serial-to-ethernet : Physical Characteristics
Dimensions73.1 x 134 x 125 mm (2.88 x 5.27 x 4.92 in)
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Standards and CertificationsEMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Signal: 1 kV, IEC 61000-4-5 Surge: Power: 1 kV; Signal: 0.25 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Environmental Testing: IEC 60068-2-1, IEC 60068-2-3; Hazardous Locations: Class I Division 2; Safety: EN 60950-1, IEC 60950-1, UL 508, UL 60950-1; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Telcordia (Bellcore) Standard TR/SR
HousingMetal
Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature-40 to 75°C (-40 to 167°F)
Operation Humidity5 to 95% (non-condensing)
Weight578 g (1.27 lb)
