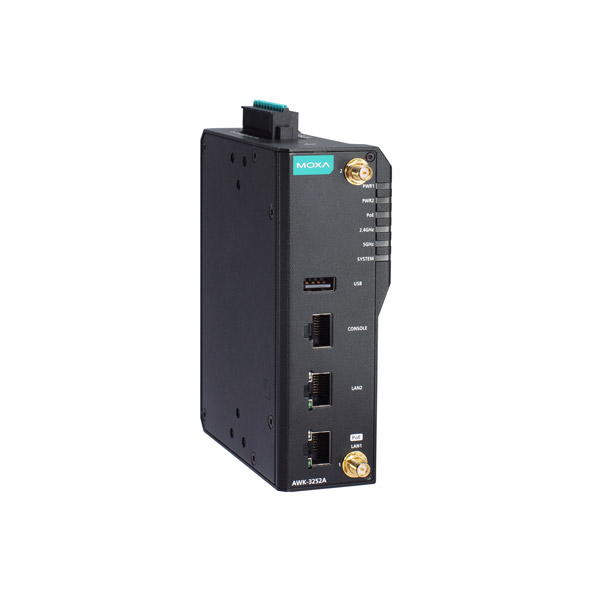

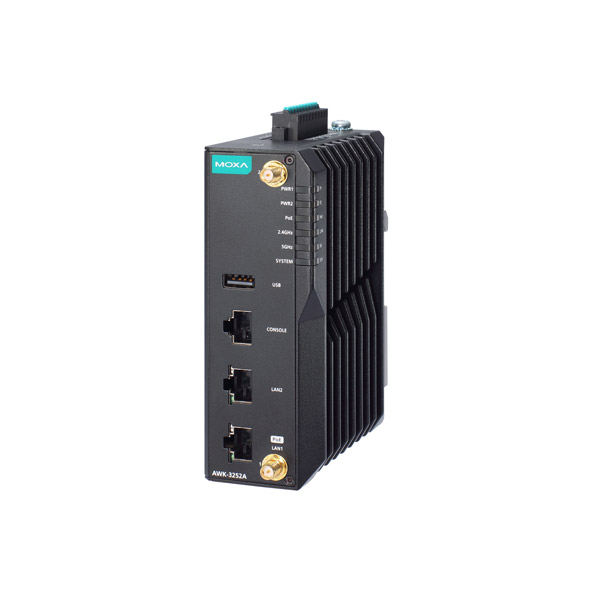

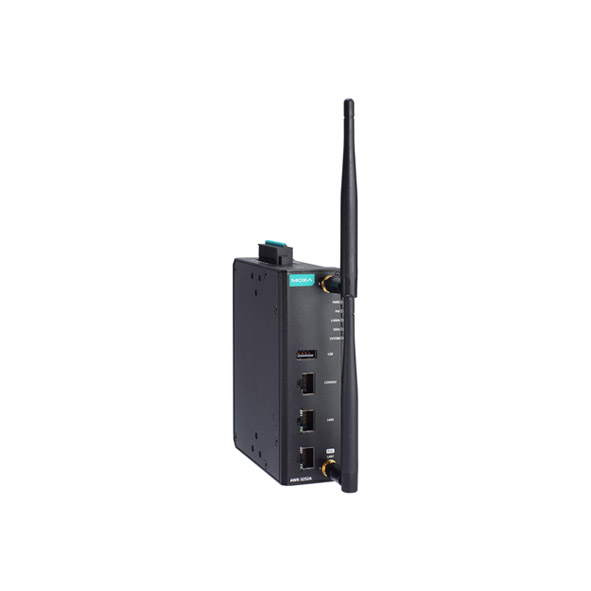

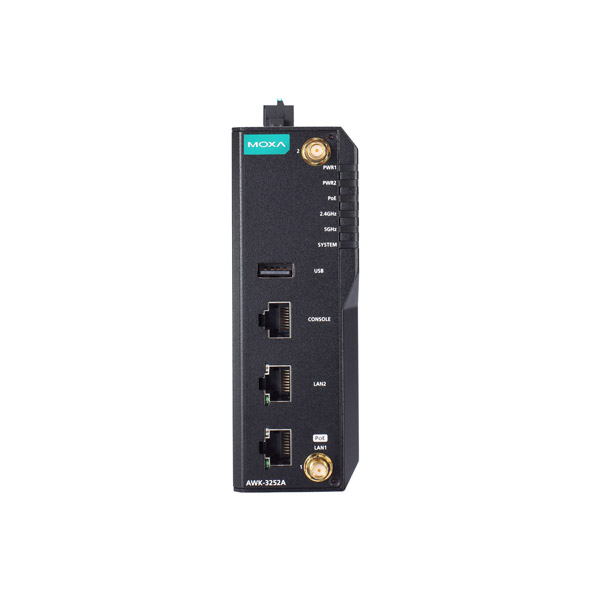

MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client

MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client
MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client
MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client
MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client
MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client
MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client
MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client
MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client
MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client

  • Supports UN Frequency Bands
  • 1 x 10/100/1000BaseT(X) Port (RJ45 connector)
  • 1 x PoE Port (10/100/1000BaseT(X), RJ45 connector)
  • IEEE 802.11a/b/g/n/ac Wave 2 AP/bridge/client
  • DIN-rail and Wall mounting
  • 12 to 48 VDC Redundant dual inputs (48 VDC for PoE)
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: AWK-3252A-UN-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
  • Vibration (IEC 60068-2-6)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Road Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
Quickview
SIEMENS RUGGEDCOM RSG920P Ethernet Switches
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BCS-NJ1001 Digital input module
Quickview
Beijer BCS-NJ1001 Digital input module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer BCS-NX1001 Digital input module
Quickview
Beijer BCS-NX1001 Digital input module
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Wireless AP/Bridge/Client , WLAN AP/Bridge/Client , Industrial Wireless AP/Bridge/Client , Wireless Access Points , Access Points , Wireless Communications , Oil & Gas Products , Road Transportation Products , MOXA AWK-3252A Series

The AWK-3252A Series 3-in-1 industrial wireless AP/bridge/client is designed to meet the growing need for faster data transmission speeds through IEEE 802.11ac technology for aggregated data rates of up to 1.267 Gbps. The AWK-3252A complies with industrial standards and approvals covering operating temperature, power input voltage, surge, ESD, and vibration. The two redundant DC power inputs increase the reliability of the power supply, and the AWK-3252A can be powered via PoE to facilitate flexible deployment. The AWK-3252A can operate concurrently on both the 2.4 and 5 GHz bands and is backward-compatible with existing 802.11a/b/g/n deployments to future-proof your wireless investments.


You can also find the AWK-3252A-UN and AWK-3252A-US-T models in the WLAN AP/Bridge/Client.


You can explore our wide range of products and enquire about the MOXA AWK-3252A-UN-T Wireless AP/Bridge/Client for your industrial automation needs. Our sales experts will pave the way to buy at the lowest price in Dubai, UAE, Saudi Arabia, Oman, and the Middle East.

Access Point : Interfaces
10/100/1000BaseT(X) PortsYes : 1 x RJ45 Port
Modulation Type-
Frequency Band2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels), 5.745 to 5.825 GHz (5 channels)
PoE PortsYes : 1 x Port (10/100/1000BaseT(X), RJ45 connector)
100BaseFX PortsNo
Wireless SecurityWPA/WPA2/WPA3-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2/WPA3-Personal
WLAN Antenna Connector2 x RP-SMA female
SecurityHTTPS/SSL, RADIUS, SSH
WLAN Operation ModeAccess point, Client, Client-Router, Master, Slave, Sniffer
WLAN Standards2.4 GHz: 802.11b/g/n with 256 QAM support, 5 GHz: 802.11a/n/ac Wave 2 with 256 QAM support
1000BaseSFP SlotsNo
Transmission Rates2.4 GHz: 802.11b: 1 to 11 Mbps; 802.11g: 6 to 54 Mbps; 802.11n: 6.5 to 400 Mbps, 5 GHz: 802.11a: 6 to 54 Mbps; 802.11n: 6.5 to 300 Mbps; 802.11ac: 6.5 to 867 Mbps
10/100BaseT(X) PortsNo
Digital InputsYes : 2, Max. input current: 8 mA, +13 to +30 V for state 1, +3 to -30 V for state 0
Console PortYes : 1 x RS-232 (8-pin RJ45 connector)
Serial PortsNo
M12 ConnectorNo
Access Point : Power Requirement
Input Current12-48 VDC, 2.2-0.5 A
Connector1 removable 10-contact terminal block(s)
Input Voltage12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption28.4 W (max.)
Reverse Polarity ProtectionNo
Access Point : Physical Characteristics
Humidity5 to 95% (non-condensing)
Dimensions Packaged45 x 130 x 100 mm (1.77 x 5.12 x 3.94 in)
Weight (PACKAGED)700 g (1.5 lb)
HousingMetal
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Standards and CertificationsEMC: EN 61000-6-2/-6-4, EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V/m, IEC 61000-4-8 PFMF: 30 A/m; Safety: IEC 60950-1, IEC 62368-1, UL 62368-1; Hazardous Locations: ATEX, Class I Division 2, IECEx; Road Vehicles: E mark E1; Vibration: IEC 60068-2-6; Radio: EN 300 328, EN 301 489-1/17, EN 301 893, ANATEL, FCC, MIC, NCC, RCM, SRRC, WPC, KC, NBTC, IC; Industrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; IP30; Telcordia SR332
Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Access Point : General
ManagementDHCP Server, DHCP Client, DNS, HTTP, IPv4, LLDP, SMTP, SNMPv1/v2c/v3, Syslog,TCP/IP, Telnet, UDP, VLAN, MXconfig
LED IndicatorsPWR1, PWR2, PoE, SYS, 2.4G, 5G, LAN1, LAN2
MTBF653,801 hrs
Time ManagementSNTP Client
