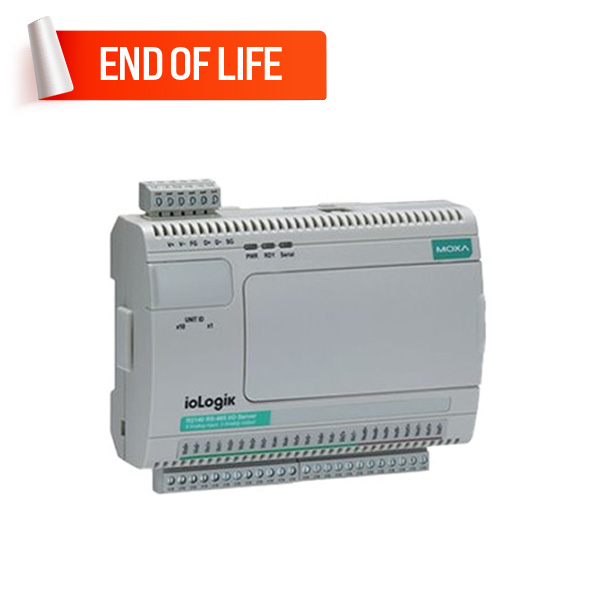

MOXA ioLogik R2140 Serial Remote I/O

MOXA ioLogik R2140 Serial Remote I/O
MOXA ioLogik R2140 Serial Remote I/O
MOXA ioLogik R2140 Serial Remote I/O
MOXA ioLogik R2140 Serial Remote I/O
MOXA ioLogik R2140 Serial Remote I/O

  • 8 x Analog Input Channels, 2 x Analog Output Channels
  • 1 x RS-485 Serial port (Terminal block connector)
  • DIN-rail and Wall mounting
  • Supports Modbus/RTU protocol
  • 12 to 48 VDC input power range
  • -10 to 60°C  operating temperature

  • Brand: MOXA
  • Model: ioLogik R2140
0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-10 to 60°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6)
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA ioLogik E1210 Ethernet Remote I/O
Quickview
MOXA ioLogik E1210 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1211 Ethernet Remote I/O
Quickview
MOXA ioLogik E1211 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1211-T Ethernet Remote I/O
Quickview
MOXA ioLogik E1211-T Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1212 Ethernet Remote I/O
Quickview
MOXA ioLogik E1212 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1212-T Ethernet Remote I/O
Quickview
MOXA ioLogik E1212-T Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1213 Ethernet Remote I/O
Quickview
MOXA ioLogik E1213 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1213-T Ethernet Remote I/O
Quickview
MOXA ioLogik E1213-T Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1214 Ethernet Remote I/O
Quickview
MOXA ioLogik E1214 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Controllers & I/Os , Universal Controllers & I/Os , Universal Controllers , Universal I/Os , Serial Remote I/Os , Remote I/Os , Remote Automation , Industrial Automation Solutions , Remote , Controllers , I/Os , MOXA ioLogik R2100 Series

The ioLogik R2100 Series was designed for system integrators to acquire and control remote analog devices over RS-485 connections. Different types of analog devices can be controlled, including sensors that read pH, conductivity, temperature, humidity, pressure, and flow, as well as actuators and valves. The ioLogik R2100 Series can be used with the standard Modbus protocol, and SCADA software or the MXIO DLL library can access the server.

Easy Remote Management

Traditionally, updating firmware over RS-485 was difficult for users. Moxa now provides an easy method for updating firmware over an RS-485 network, allowing users to perform remote firmware updates, reducing maintenance time and cost.



End of Life Product - Replacement Available

Please note that the ioLogik R2100 Series has been phased out and replaced by the ioLogik R1200 Series.



Explore our extensive range of industrial automation products such as MOXA ioLogik R2140 Serial Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).  Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.

Remote I/O : Interface
Digital Input and OutputNo
Adjustable digital input and outputNo
Analog Input and OutputYes : 8 x Analog Input Channels and 2 x Analog Output Channels
RelaysNo
Thermal sensor input (RTD)No
Thermocouple inputNo
LANNo
Magnetic Isolation ProtectionNo
Serial portYes : 1 RS-485 Port (Terminal connection)
IsolationYes : 3k VDC or 2k Vrms
ButtonsReset button
Remote I/O : Serial Interface
ConnectorTerminal block
Serial StandardsRS-485
Serial Communication ParametersBaudrate: 9600 bps to 115.2 kbps; Flow Control: None; Parity: None; ESD: 15 kV; Data Bits: 8
Serial SignalsRS-485-2w: Data+, Data-, GND
Remote I/O : Security
Security Functions-
Remote I/O : Standards and protocols
ProtocolsModbus RTU (slave)
Remote I/O : General
Compatible SoftwaresSCADA, MX-OPC UA Server
Management-
MTBF280,923 hrs
Remote I/O : Power Requirements
Power ConnectorScrew-fastened Euroblock terminal
Input Voltage12 to 48 VDC
Power Consumption170 mA @ 24 VDC
Remote I/O : LED Indicators
LED IndicatorsPWR, RDY, Serial
Remote I/O : Physical Characteristics
HousingPlastic top cover, metal bottom plate
Dimensions115 x 79 x 45.6 mm (45.3 x 3.11 x 1.80 in)
Standards and CertificationsFreefall: IEC 60068-2-32; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 1 kV; Signal: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Green Product: RoHS, CRoHS, WEEE; Telcordia (Bellcore), GB
InstallationDIN-rail mounting, Wall mounting
Operating Temperature-10 to 60°C (14 to 140°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Operation Humidity5% to %95 Non-condensing
Weight200 g (0.44 lb)
Altitude2000 m
