2 x RS-485 Serial ports (Terminal block connector)
Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing)
Shock (IEC 60068-2-27)
Vibration (IEC 60068-2-6)The ioLogik R1200 Series RS-485 serial remote I/O devices
are perfect for establishing a cost-effective, dependable, and easy-to-maintain
remote process control I/O system. Remote serial I/O products offer process
engineers the benefit of simple wiring, as they only require two wires to
communicate with the controller and other RS-485 devices while adopting the
EIA/TIA RS-485 communication protocol to transmit and receive data at high
speed over long distances. In addition to communication configuration by software
or USB and dual RS-485 port design, Moxa’s remote I/O devices eliminate the
nightmare of extensive labor associated with the setup and maintenance of data
acquisition and automation systems. Moxa also offers different I/O
combinations, which provide greater flexibility and are compatible with many
other applications.
You can also find the ioLogik R1212-T, ioLogik R1240, and
ioLogik R1214-T models in the
Easy World Automation offers the

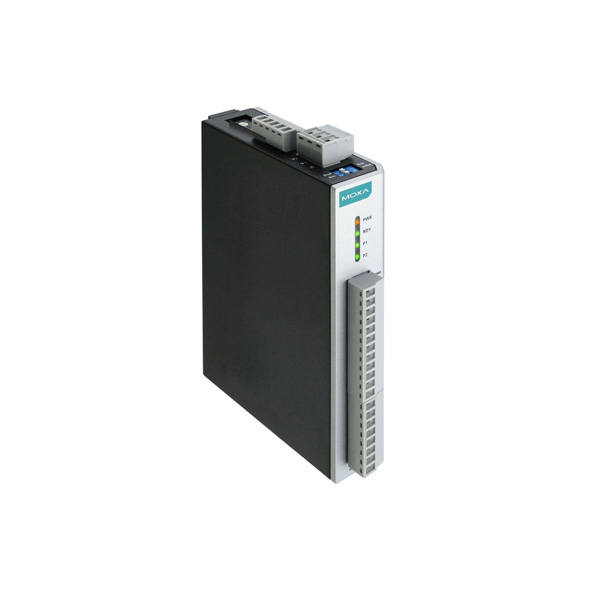

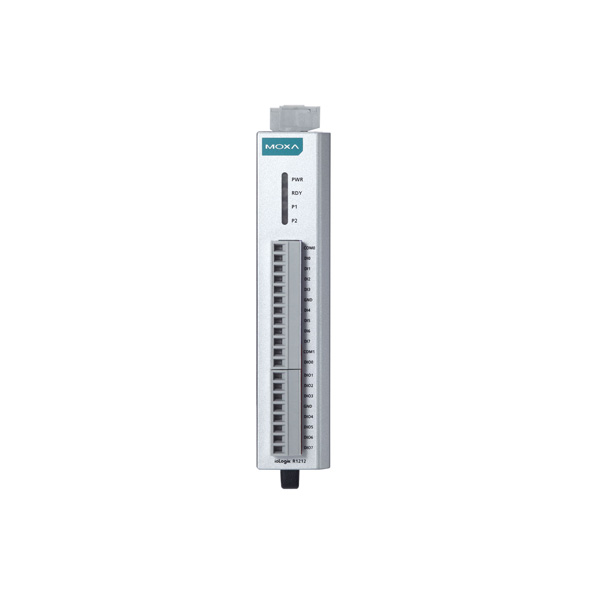

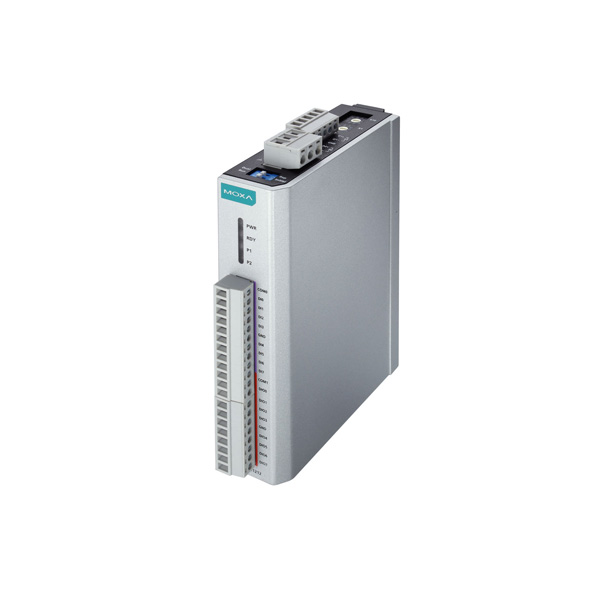

easiest way to buy the MOXA ioLogik R1241-T Serial Remote I/O in the Middle East (UAE (Dubai), KSA (Al Khobar,
Riyadh), and Oman) at the lowest price through online inquiring. Our sales
experts will contact you to fulfill all your industrial
automation needs.
| Remote I/O : Interface | |
| Digital Input and Output | No |
| Adjustable digital input and output | No |
| Analog Input and Output | Yes : 8 x Analog Output Channels |
| Relays | No |
| Thermal sensor input (RTD) | No |
| Thermocouple input | No |
| LAN | No |
| Magnetic Isolation Protection | No |
| Serial port | Yes: 2 Port |
| Isolation | Yes : 3k VDC or 2k Vrms |
| Buttons | Reset button |
| Remote I/O : Serial Interface | |
| Connector | Terminal block |
| Serial Standards | RS-485 |
| Serial Communication Parameters | Baudrate: 1200 bps to 921.6 kbps; Parity: None, Even, Odd; Pull High/Low Resistor for RS-485: 1 kilo-ohm, 150 kilo-ohms; Stop Bits: 1, 2; Surge: 1 kV; ESD: 15 kV; Data Bits: 8 |
| Remote I/O : Security | |
| Security Functions | - |
| Remote I/O : Standards and protocols | |
| Protocols | Serial: Modbus RTU Server (slave) |
| Remote I/O : General | |
| Compatible Softwares | ioSearch, MX-AOPC UA Server |
| Management | - |
| MTBF | 1,239,293 hrs |
| Remote I/O : Power Requirements | |
| Power Connector | Screw-fastened Euroblock terminal |
| Input Voltage | 12 to 48 VDC |
| Power Consumption | 343 mA @ 24 VDC |
| Remote I/O : LED Indicators | |
| LED Indicators | PWR, RDY, P1, P2 |
| Remote I/O : Physical Characteristics | |
| Housing | Plastic |
| Dimensions | 27.8 x 124 x 84 mm (1.09 x 4.88 x 3.31 in) |
| Standards and Certifications | EMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 0.5 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 3 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332 |
| Installation | DIN-rail mounting, Wall mounting |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5% to %95 Non-condensing |
| Weight | 200 g (0.44 lb) |
| Altitude | 2000 m |
