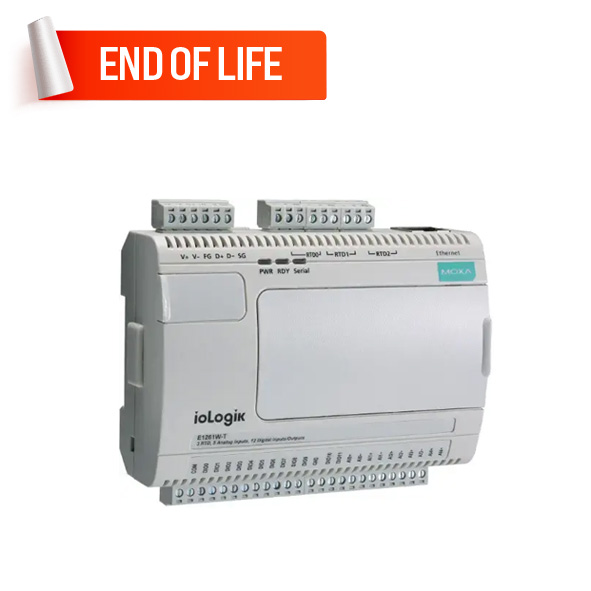

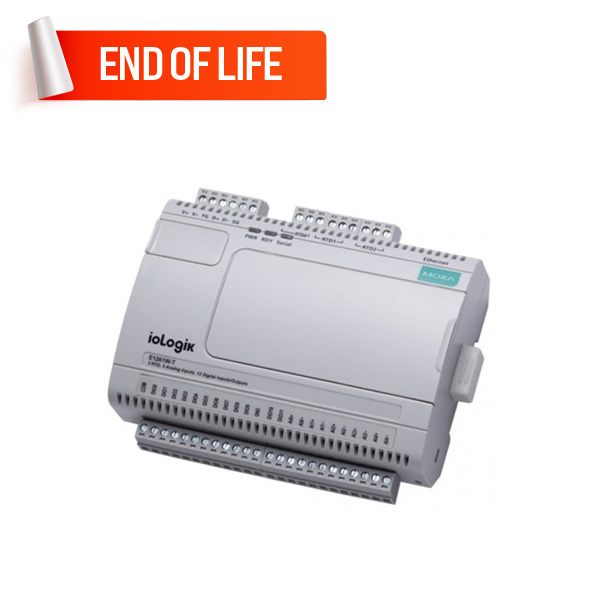

MOXA ioLogik E1261W-T Ethernet Remote I/O

MOXA ioLogik E1261W-T Ethernet Remote I/O
MOXA ioLogik E1261W-T Ethernet Remote I/O
MOXA ioLogik E1261W-T Ethernet Remote I/O
MOXA ioLogik E1261W-T Ethernet Remote I/O
MOXA ioLogik E1261W-T Ethernet Remote I/O
  • 5 x Analog Input Channels, 12 x Configurable DIO Channels
  • 3 x RTD Channels (Spring-type Euroblock terminal connector)
  • 1 x 10/100BaseT(X) Port (RJ45 connector)
  • 1 x RS-485 Serial port (Terminal block connector)
  • Plastic body design
  • 12 to 36 VDC input power range
  • DIN-rail and Wall mounting
  • -40 to 75°C operating temperature range
  • Brand: MOXA
  • Model: ioLogik E1261W-T
0 reviews • Write a review
Datasheet User Manual
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
MOXA ioLogik E1210 Ethernet Remote I/O
Quickview
MOXA ioLogik E1210 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1211 Ethernet Remote I/O
Quickview
MOXA ioLogik E1211 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1211-T Ethernet Remote I/O
Quickview
MOXA ioLogik E1211-T Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1212 Ethernet Remote I/O
Quickview
MOXA ioLogik E1212 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1212-T Ethernet Remote I/O
Quickview
MOXA ioLogik E1212-T Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1213 Ethernet Remote I/O
Quickview
MOXA ioLogik E1213 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1213-T Ethernet Remote I/O
Quickview
MOXA ioLogik E1213-T Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
MOXA ioLogik E1214 Ethernet Remote I/O
Quickview
MOXA ioLogik E1214 Ethernet Remote I/O
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Controllers & I/Os , Rugged Controllers & I/Os , Rugged Controllers , Rugged I/Os , Controllers , Ethernet Remote I/O , Industrial Automation Solutions , Factory Automation Products , Remote Automation , Remote I/O , I/Os , MOXA ioLogik E1200W Series

Moxa’s ioLogik E1200W Series is designed for Ethernet-based remote condition monitoring systems. With 3 RTD, 5 AI, and 12 DIO channels, it features an I/O combination that is ideal for monitoring wind turbines and environmental conditions. Unlike other remote I/O products, which are passive and must poll for data, the ioLogik E1200W Series supports active communication with Moxa’s patented Active OPC Server to seamlessly connect with SCADA systems in real-time. This report-by-exception approach, which is new to PC-based monitoring requires far less bandwidth than traditional polling methods.

Push Technology for Events

When used with MX-AOPC UA Server, devices can use active push communications when communicating changes in state and/or events to a SCADA system. Unlike a polling system, when using a push architecture for communications with a SCADA system, messages will only be delivered when changes in state or configured events occur, resulting in higher accuracy and lower amounts of data that need to be transferred.


End of Life Product - Replacement Available

Please note that the ioLogik E1200W Series has been phased out and replaced by the ioThinx 4510 Series.


You can Buy the MOXA ioLogik E1261W-T Ethernet Remote I/O via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

Remote I/O : Interface
Digital Input and OutputNo
Adjustable digital input and outputYes : 12 x Channels
Analog Input and OutputYes : 5 x Analog Input Channels
RelaysNo
Thermal sensor input (RTD)Yes : 3 x Channels
Thermocouple inputNo
LANYes : 1 x 10/100BaseT(X) Port (RJ45 connector)
Magnetic Isolation Protection1.5 kV (built-in)
Serial portYes : 1 Port
IsolationYes : 3k VDC or 2k Vrms
ButtonsReset button
Remote I/O : Serial Interface
ConnectorTerminal block
Serial StandardsRS-485
Serial Communication ParametersBaudrate: 1200 bps to 115.2 kbps; Data Bits: 8; Flow Control: None; Stop Bits: 1
Serial SignalsRS-485-2w: Data+, Data-, GND
Remote I/O : Security
Security Functions-
Remote I/O : Standards and protocols
ProtocolsEthernet: Modbus TCP Server (Slave), Moxa AOPC (Active Tag), MXIO Library; Serial: Modbus RTU Server (slave)
Remote I/O : General
Compatible SoftwaresioSearch utility, MXIO library, MX-AOPC UA Suite
ManagementBOOTP, DHCP Client, HTTP, IPv4, TCP/IP, UDP
MTBF367,508 hrs
Remote I/O : Power Requirements
Power ConnectorScrew-fastened Euroblock terminal
Input Voltage12 to 36 VDC
Power Consumption143 mA @ 24 VDC
Remote I/O : LED Indicators
LED IndicatorsPWR, RDY, Serial
Remote I/O : Physical Characteristics
HousingPlastic
Dimensions115 x 79 x 40.4 mm (4.53 x 3.11 x 1.59 in)
Standards and CertificationsEMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 4 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 1 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 1 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Safety: UL 508; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6; Green Product: RoHS, CRoHS, WEEE; Telcordia SR332
InstallationDIN-rail mounting, Wall mounting
Operating Temperature-40 to 75°C (-40 to 167°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Operation Humidity5 to 95% (non-condensing)
Weight250 g (0.55 lb)
Altitude2000 m
