Supports JP Frequency Bands
2 x 1000BaseSFP Slots
4 x 10/100BaseT(X) Ports (M12 connector)
Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing).png)
IP protection (IP68)

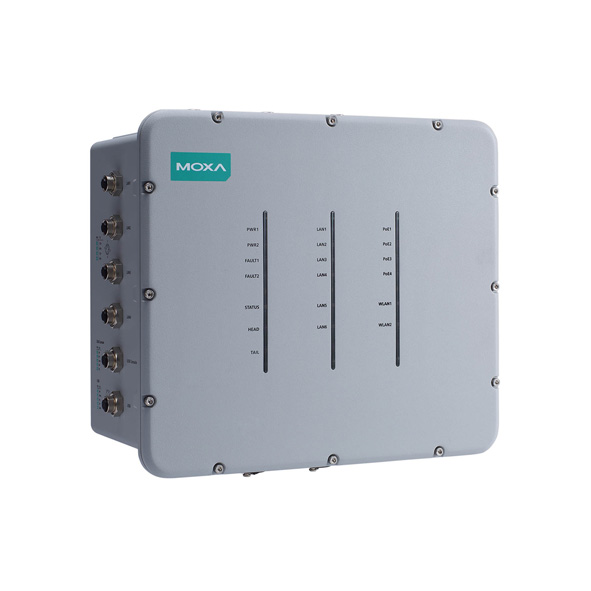

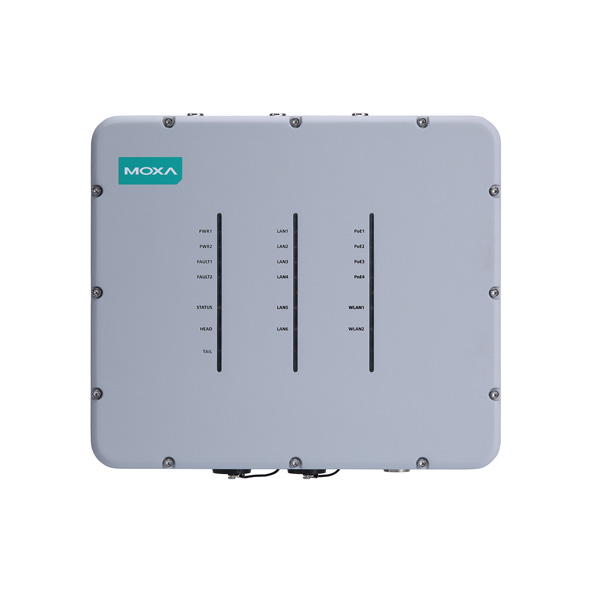

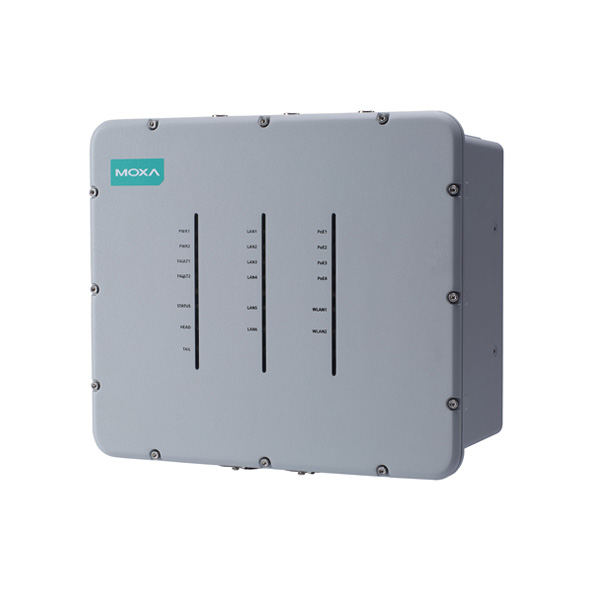

Railway TransportationThe TAP-323 trackside wireless unit is designed for
train-to-ground wireless communication. The TAP-323 is a highly compact and
rugged wireless unit that integrates two access points, a managed fiber switch,
and a wide-range AC/DC power supply into one box. The IP68 housing allows the
unit to withstand harsh weather conditions, and the M12 connectors make the
unit shock and vibration-resistant. The TAP-323 supports advanced
controller-based Turbo Roaming technology for train-to-ground wireless
applications such as communication-based train control (CBTC) and CCTV. The
unit can supply power to up to 4 PoE devices while providing reliable LAN
communication with Moxa’s Turbo Chain technology.
You can also find the TAP-323-US-CT-T and TAP-323-EU-CT-T models in the Rail Wireless LAN.
Inquire about the MOXA TAP-323-JP-CT-T Wireless Access Point, designed for industrial automation
solutions. Feel free to get in touch with our sales team to give you the best
solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al
Khobar, Riyadh), and Oman).
| Access Point : Interfaces | |
| 10/100/1000BaseT(X) Ports | No |
| Modulation Type | DSSS, OFDM |
| Frequency Band | 2.412 to 2.484 GHz (14 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels) |
| PoE Ports | No |
| 100BaseFX Ports | No |
| Wireless Security | WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal |
| WLAN Antenna Connector | 5 x N-type female |
| Security | HTTPS/SSL, RADIUS, SSH |
| WLAN Operation Mode | Access point |
| WLAN Standards | 802.11a/b/g/n, 802.11i Wireless Security |
| 1000BaseSFP Slots | Yes : 2 Ports |
| Transmission Rates | 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15) |
| 10/100BaseT(X) Ports | Yes : 4 Ports (M12 D-coded 4-pin female connector) |
| Digital Inputs | No |
| Console Port | Yes : USB-M12 console (M12 B-coded 5-pin female connector) |
| Serial Ports | No |
| Connections | PoE, M12, Fiber |
| M12 Connector | Yes : M12 A-coded 5-pin female (for ABC-02 USB storage) |
| Access Point : Power Requirement | |
| Input Current | AC input: 110 to 220 VAC, 50 to 60 Hz, 1.1 A (max.), DC input: 110 to 220 VDC, 1.1 A (max.) |
| Connector | M12 A-coded 4-pin male connector |
| Input Voltage | Redundant dual inputs, 110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC) |
| Power Consumption | 85 W (max.) |
| Reverse Polarity Protection | Supported |
| Access Point : Physical Characteristics | |
| Humidity | 5 to 95% (non-condensing) |
| Dimensions Packaged | 324 x 279 x 156 mm (12.76 x 10.98 x 6.142 in) |
| Weight (PACKAGED) | 10,000 g (22.22 lb) |
| Housing | Metal |
| Installation | Wall mounting (standard), DIN-rail mounting (optional) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4, EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio Frequency: FCC, IC, WPC, RED; Radio: MIC; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 60950-1, UL 60950-1, IEC 60950-1; IP68; Telcordia SR332 |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Access Point : General | |
| Management | NMPv1/v2c/v3, DHCP Server/Client, IPv4, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console, Wireless Search Utility |
| LED Indicators | - |
| MTBF | 290,937 hrs |
| Time Management | SNTP |
