Supports EU Frequency Bands
1 x 1000BaseSFP Slot
1 x 10/100/1000BaseT(X) Ports (M12 connector)
Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing).png)
IP protection (IP68)

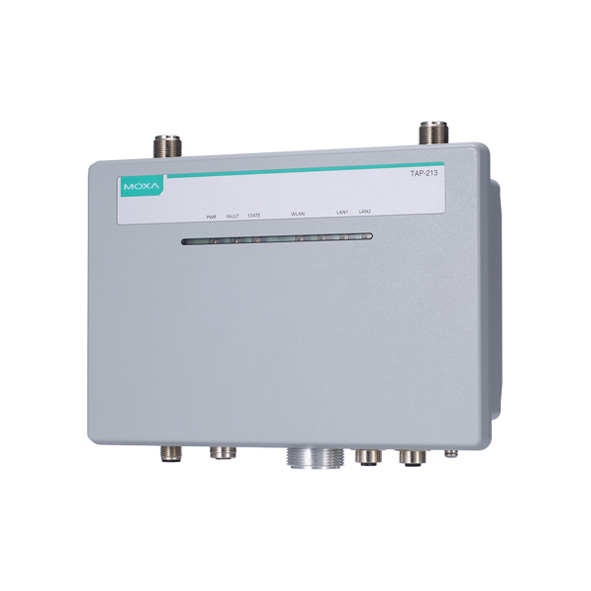

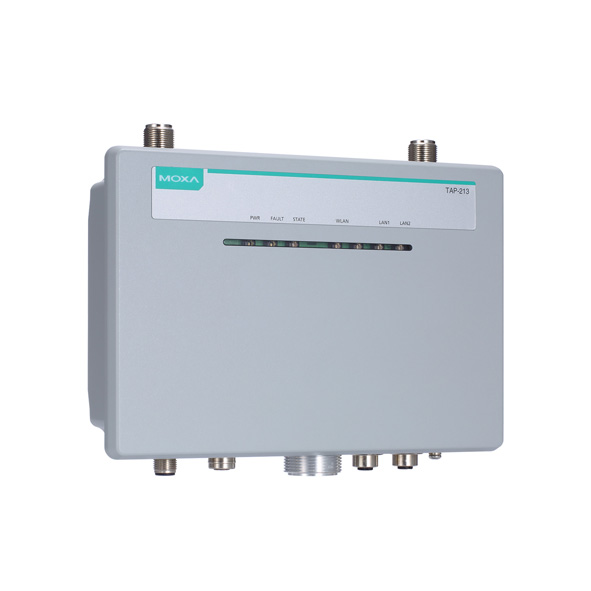

Railway TransportationThe TAP-213 outdoor wireless AP/client is the ideal
ruggedized wireless solution for railway onboard and train-to-ground
applications such as CCTV and CBTC communications. The TAP-213’s dust-tight,
weatherproof design is IP68-rated, allowing you to extend wireless networks to
outdoor locations and critical environments. The two redundant DC power inputs
increase the reliability of the power supply and the device can also be powered
via PoE for easier deployment. The TAP-213 is compliant with the mandatory test
items of the EN 50155 standard to ensure suitability for rolling stock
applications. With many hardened industrial-grade features, the TAP-213 will
provide stable and reliable wireless connectivity, especially for rail onboard
environments.
You can also find the TAP-213-US-CT-T and TAP-213-JP-CT-T models in the Rail Wireless LAN.
Experience the convenient way to purchase the MOXA TAP-213-EU-CT-T Wireless AP/Client in the
Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts
will provide the most helpful information about the price and sale conditions
for a wonderful buying experience.
| Access Point : Interfaces | |
| 10/100/1000BaseT(X) Ports | Yes : 1 Port (M12 X-coded 8-pin female connector) |
| Modulation Type | DSSS, MIMO-OFDM, OFDM |
| Frequency Band | 2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels) |
| PoE Ports | No |
| 100BaseFX Ports | No |
| Wireless Security | WEP encryption (64-bit and 128-bit), WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES), WPA/WPA2-Personal |
| WLAN Antenna Connector | 2 x N-type female |
| Security | HTTPS/SSL, RADIUS, SSH |
| WLAN Operation Mode | Access point, Client, Client-Router, Sniffer |
| WLAN Standards | 802.11a/b/g/n, 802.11i Wireless Security |
| 1000BaseSFP Slots | Yes : 1 Port |
| Transmission Rates | 802.11a/g: 6, 9, 12, 18, 24, 36, 48, 54 Mbps, 802.11b: 1, 2, 5.5, 11 Mbps, 802.11n HT20: 6.5 to 144.4 Mbps (MCS0 to MCS15), 802.11n HT40: 13.5 to 300 Mbps (MCS0 to MCS15) |
| 10/100BaseT(X) Ports | No |
| Digital Inputs | No |
| Console Port | Yes : 1 x USB-M12 console (M12 B-coded 5-pin female connector) |
| Serial Ports | No |
| Connections | PoE, M12, Fiber |
| M12 Connector | Yes : M12 A-coded 5-pin female (for ABC-02 USB storage) |
| Access Point : Power Requirement | |
| Input Current | 0.65 A @ 24 VDC, 0.16 A @ 110 VDC |
| Connector | M12 A-coded 4-pin male connector |
| Input Voltage | 24 to 110 VDC, Redundant dual inputs |
| Power Consumption | 17.6 W (max.) |
| Reverse Polarity Protection | Supported |
| Access Point : Physical Characteristics | |
| Humidity | 5 to 95% (non-condensing) |
| Dimensions Packaged | 220 x 150 x 50.5 mm (8.66 x 5.91 x 1.99 in) |
| Weight (PACKAGED) | 1,500 g (3.31 lb) |
| Housing | Metal |
| Installation | Wall mounting (standard), DIN-rail mounting (optional), Pole mounting (optional) |
| Standards and Certifications | EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 6 kV; Air: 8 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Radio Frequency: EN 300 328, EN 301 489-1/17, EN 301 893, FCC, IC, WPC; Railway: EN 50121-4, EN 50155; Railway Fire Protection: EN 45545-2; Safety: EN 60950-1, UL 60950-1, IEC 60950-1; IP68; Telcordia SR332 |
| Operating Temperature | -40 to 75°C (-40 to 167°F) |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Access Point : General | |
| Management | SNMPv1/v2c/v3, DHCP Server/Client, IPv4, LLDP, SMTP, Syslog, TCP/IP, Telnet, TFTP, UDP, Web Console, Wireless Search Utility |
| LED Indicators | - |
| MTBF | 758,369 hrs |
| Time Management | NTP Client, SNTP |
