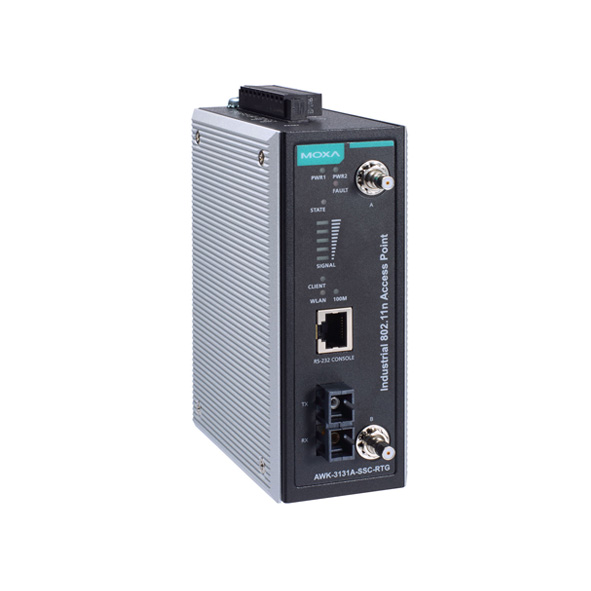

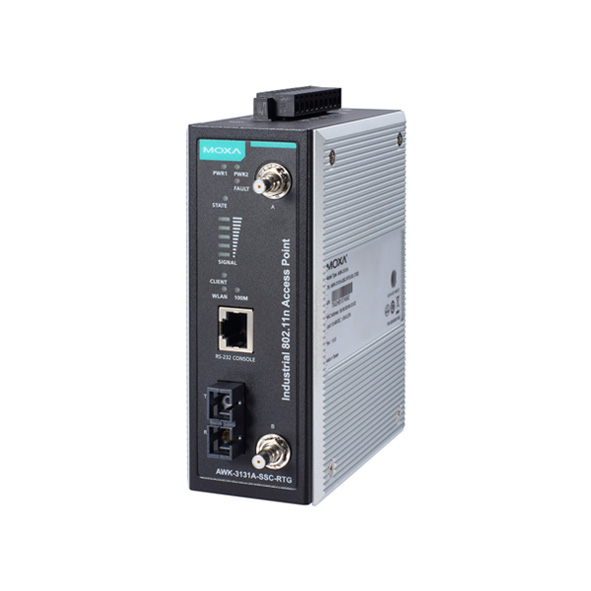

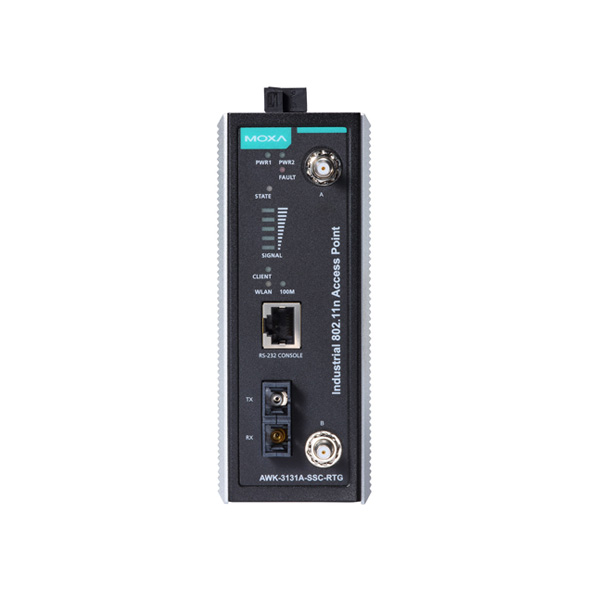

Name: MOXA AWK-3131A-SSC-RTG-EU-T Wireless AP/Client
Brand: MOXA
Availability: InStock

MOXA AWK-3131A-SSC-RTG-EU-T Wireless AP/Client

Supports EU Frequency Bands
1 x 100BaseFX (Single-mode SC connector)
40 KM Typical data transmission distance on fiber
IEEE 802.11a/b/g/n compliant
12 to 48 VDC Redundant dual inputs (48 VDC PoE)
DIN-rail and Wall mounting
IP30-rated Metal body design
-40 to 75°C operating temperature

Brand: MOXA
Model: AWK-3131A-SSC-RTG-EU-T

0 reviews • Write a review

Datasheet

Operating Temperature (-40 to 75°C)
Relative Humidity (5 to 95% non-condensing)
IP protection (IP30)

Railway Transportation

$0.00

Ex Tax: $0.00

Buy Now ENQUIRE NOW

Add to Wish List Compare this Product

From Same Category
Same Brand

Quickview

MOXA AWK-3131A-M12-RCC-EU Wireless AP/Client

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA AWK-3131A-M12-RCC-EU-CT Wireless AP/Client

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA AWK-3131A-M12-RCC-EU-CT-T Wireless AP/Client

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA AWK-3131A-M12-RCC-EU-T Wireless AP/Client

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA AWK-3131A-M12-RCC-JP Wireless AP/Client

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA AWK-3131A-M12-RCC-JP-CT Wireless AP/Client

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA AWK-3131A-M12-RCC-JP-CT-T Wireless AP/Client

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Quickview

MOXA AWK-3131A-M12-RCC-JP-T Wireless AP/Client

$0.00

Ex Tax:$0.00

Add to Wish List Compare this Product

Tags: Industrial Network Infrastructure , Wireless AP/Bridge/Client , Rail Wireless LAN , Wireless Access Points , Access Points , Wireless Communications , Railway Transportation , Railway Transportation Products , MOXA AWK-3131A-RTG Series

The AWK-3131A-RTG 2-in-1 industrial AP/client devices are designed specifically for train-to-ground communication and can perform reliably even when the trains reach a speed of 120 km/h. The AWK-3131A-RTG complies with a portion of EN 50155 specifications, covering operating temperature, power input voltage, surge, ESD, and vibration, making the AWK-3131A-RTG suitable for a variety of industrial applications. Installation is easy, with either DIN-rail mounting or distribution boxes, and the DIN-rail mounting capability, wide operating temperature range, and IP30 housing with LED indicators make the AWK-3131A-RTG a convenient yet reliable solution for any rolling stock application.

You can also find the AWK-3131A-SSC-RTG-EU-CT-T and AWK-3131A-SSC-RTG-JP-T models in the Rail Wireless LAN.

Enjoy the ease of online inquiries for the MOXA AWK-3131A-SSC-RTG-EU-T Wireless AP/Client. You can submit your inquiry on our website and get the friendliest communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

Access Point : Interfaces
10/100/1000BaseT(X) Ports	No
Modulation Type	DSSS, OFDM, 802.11b: CCK @ 11/5.5 Mbps, 802.11b: DQPSK @ 2 Mbps, 802.11b: DBPSK @ 1 Mbps, 802.11a/g: 64QAM @ 54/48 Mbps, 802.11a/g: 16QAM @ 36/24 Mbps, 802.11a/g: QPSK @ 18/12 Mbps, 802.11a/g: BPSK @ 9/6 Mbps, 802.11n: 64QAM @ 300 Mbps to BPSK @ 6.5 Mbps
Frequency Band	2.412 to 2.472 GHz (13 channels), 5.180 to 5.240 GHz (4 channels), 5.260 to 5.320 GHz (4 channels), 5.500 to 5.700 GHz (11 channels)
PoE Ports	No
100BaseFX Ports	Yes : 1 x Port (single-mode SC connector)
Wireless Security	SSID broadcast enable/disable, WEP encryption (64-bit and 128-bit), WPA/WPA2-Personal, WPA/WPA2-Enterprise (IEEE 802.1X/RADIUS, TKIP, AES)
WLAN Antenna Connector	QMA
Security	RADIUS
WLAN Operation Mode	Access point, Client, Client-Router, Sniffer
WLAN Standards	802.11a/b/g/n, 802.11i Wireless Security
1000BaseSFP Slots	No
Transmission Rates	802.11b: 1 to 11 Mbps, 802.11a/g: 6 to 54 Mbps, 802.11n: 6.5 to 300 Mbps
10/100BaseT(X) Ports	No
Digital Inputs	Yes : 2, +13 to +30 V for state 1, +3 to -30 V for state 0, Max. input current: 8 mA
Console Port	Yes : 1 x RS-232 (RJ45-type)
Serial Ports	No
M12 Connector	No
Access Point : Power Requirement
Input Current	1.0 A @ 12 VDC, 0.27 A @ 48 VDC
Connector	1 removable 10-contact terminal block(s)
Input Voltage	12 to 48 VDC, Redundant dual inputs, 48 VDC Power-over-Ethernet
Power Consumption	Maximum 13 W
Reverse Polarity Protection	Supported
Access Point : Physical Characteristics
Humidity	5 to 95% (non-condensing)
Dimensions Packaged	52.9 x 151.9 x 127.4 mm (2.08 x 5.98 x 5.02 in)
Weight (PACKAGED)	850 g (1.87 lb)
Housing	Metal
Installation	DIN-rail mounting, Wall mounting (with optional kit)
Standards and Certifications	EMC: EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 2 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV; Signal: 2 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8; Railway: EN 50155, EN 50121-4; Railway Fire Protection: EN 45545-2; Radio: EN 301 489-1/17, EN 300 328, EN 301 893, MIC, FCC ID SLE-WAPN008, SRRC, NCC, IDA; Safety: UL 60950-1, IEC 60950-1, EN 60950-1 (LVD); IP30; Telcordia SR332
Operating Temperature	-40 to 75°C (-40 to 167°F)
Storage Temperature	-40 to 85°C (-40 to 185°F)
Access Point : General
Management	General: Proxy ARP, DNS, HTTP, HTTPS, IP, ICMP, SNTP, TCP, UDP, RADIUS, SNMP, PPPoE, DHCP, AP-only: ARP, BOOTP, DHCP, STP/RSTP (IEEE 802.1D/w)
LED Indicators	PWR1, PWR2, FAULT, STATE, SIGNAL, CLIENT, WLAN, 100M
MTBF	528,478 hrs
Time Management	-
