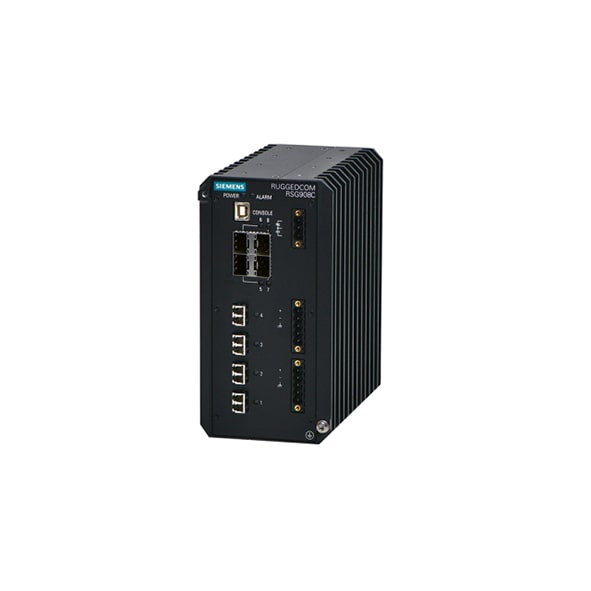

SIEMENS RUGGEDCOM RSG908C Ethernet Switches

The winner of the Red Dot award 2018 for industrial design, RUGGEDCOM RSG908C is a compact IEEE 1588 compatible Ethernet switch with 4 Gigabit SFP ports and 4 Fast Ethernet fiber ports.

The RSG908C features the Rugged Operating System and universal power supply options. It also offers an array of cybersecurity features and is rugged rated for reliability in harsh environments.

With RUGGEDCOM RSG908C, you can combine precision timing information and data communication onto a single network to reduce your total ownership costs.

The IEEE 1588-compliant device possesses an integrated DIN rail mount and front-facing interfaces for easy installation in space-limited areas. To eliminate a single point of failure, it offers redundant power inputs for both DC and high voltage AC/DC applications.

Tested and certified to withstand extreme temperature, vibration, and shock: it offers exceptional reliability for industrial applications that require high bandwidths and accommodate future network expansions.


You can place an order for the SIEMENS RUGGEDCOM RSG908C Ethernet Switches online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.


Products at a glance


switch and hub : Interface
Number of ports8 ports
10/100Mb RJ45 (Megabit) PortsNo
10/100/1000Mb RJ45 (Gigabit) PortsNo
100Mb Fiber optic multi mode (Megabit) PortsYes : 4 LC ports (2 km)
100Mb Fiber optic single mode (Megabit) PortsNo
100Mb SFP Fiber optic (Megabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsYes : 4 slots
10/100Mb (Megabit) POE PortsNo
10/100/1000Mb (Gigabit) POE PortsNo
Other portsNo
switch and hub : Software Features
ManagementCLI, web-based management, MIB support, RMON, port mirroring, CoS
switch and hub : LED Indicators
LED Per PortYes
PowerYes
switch and hub : Power Requirements
Maximum power consumption-
Power Consumption (Output Adapter)10 to 60 VDC, 88 to 300 VDC, 85 to 264 VAC
Power Input Plugin ( Redundant )-
switch and hub : General
Fan / FanlessFanless
MTBF-
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 2
Switch typeManaged
Port AggregationYes
switch and hub : Physical Characteristics
Dimensions90 x 177 x 163mm
HousingCast Aluminum Enclosure
Installation35 mm DIN rail mounting, wall mounting
Operating Temperature-40 to 85° C
Operation Humidity-
Standards and CertificationsCE, EMC, IEC 61850, 3IEEE 1613, safety , CSA, UL
Storage Humidity-
Storage Temperature-40 to 85° C
Weight2.4 kg
switch and hub : Standards and protocols
Protocols and work standardsIEEE 1588 v2 transparent forwarding,
Protocols and management standardsDHCP, STP, RSTP, MSTP, HSR, NTP, SNTP, Telnet, HTTP, HTTPS, TFTP, SFTP, GMRP, LLDP, IGMP, VLAN, GVRP
switch and hub : Package Checklist
Hardware installation guideYes
Power adapter-
Power cable-
