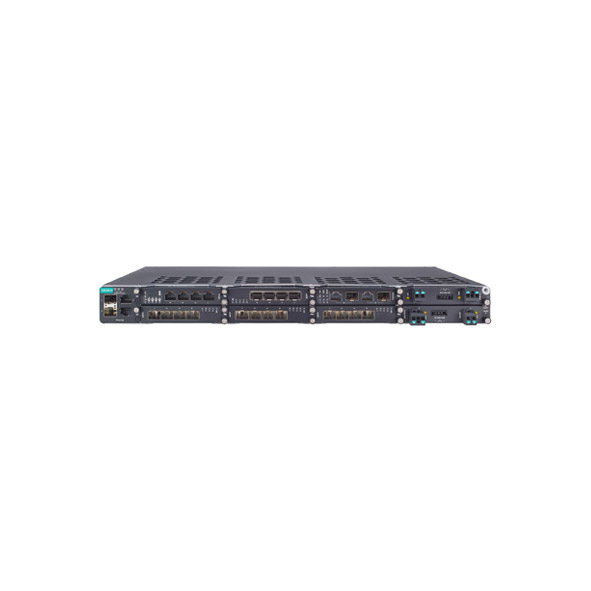

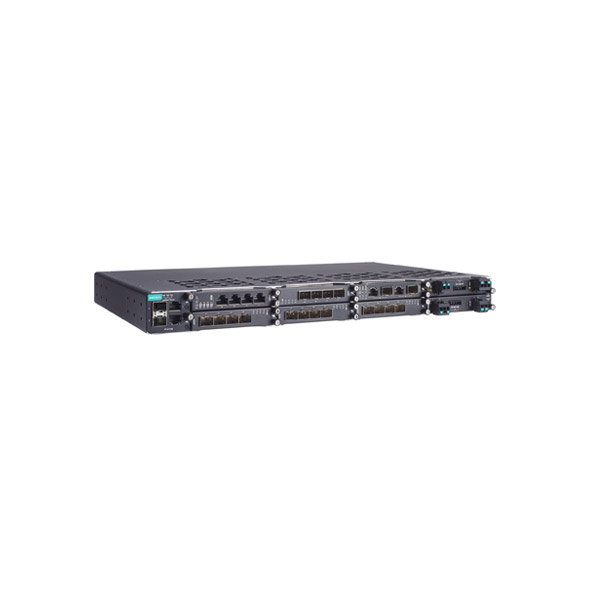

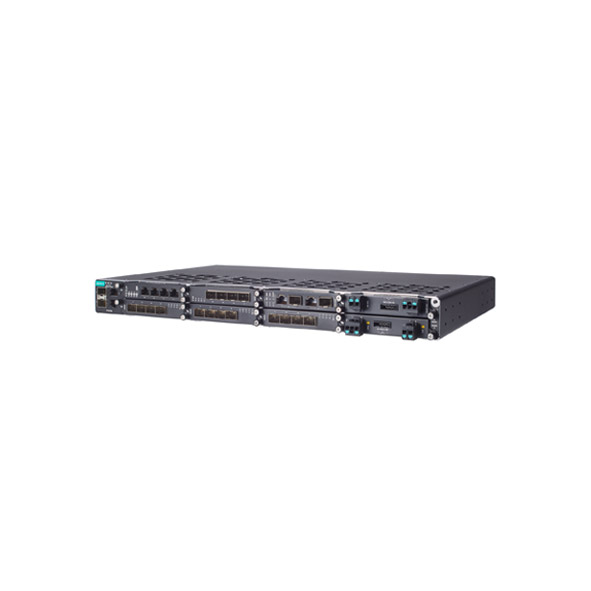

MOXA PT-G7828 Managed Ethernet Switch

MOXA PT-G7828 Managed Ethernet Switch
MOXA PT-G7828 Managed Ethernet Switch
MOXA PT-G7828 Managed Ethernet Switch
MOXA PT-G7828 Managed Ethernet Switch
MOXA PT-G7828 Managed Ethernet Switch
MOXA PT-G7828 Managed Ethernet Switch
MOXA PT-G7828 Managed Ethernet Switch

  • Modular Managed Ethernet Switch
  • Layer 3 switching functionality
  • 2 x 10/100/1000BaseT(X) Ports (RJ45 connector)
  • 2 x 100/1000BaseSFP Ports
  • 6 x 4-Port slots for combination with LM-7000H modules
  • 24 to 48 VDC or 110 to 220 VDC/VAC Input power ranges
  • Rackmount installation design
  • -40 to 85°C operating temperature range

  • Brand: MOXA
  • Model: PT-G7828
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
  • Power Utility
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Managed Switches , Layer 2 Switches , Rackmount Switches , Industrial Data Communications , Industrial Ethernet Switches , Power Utility Products , Railway Transportation Products , PoE Switches , PoE , Rackmount , Switches , MOXA PT-G7828 Series

The PT-G7828 modular switches provide up to 28 Gigabit ports, including 4 fixed ports, 6 interface module slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The PT-G7828 Series is designed to meet evolving network requirements, including a hot-swappable module design that enables you to change or add devices without shutting down your device.

The multiple Ethernet modules (RJ45, SFP, and PoE) and power units (24/48 VDC, 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions. The switches support a full Gigabit platform that provides enough bandwidth to set up an Ethernet backbone. Certifications include IEC 61850 Edition 2 Class 2 to ensure high availability and wide usage.


You can also find the PT-G7728 model in the IEC 61850-3 Ethernet Switches.


Enjoy the ease of online inquiries for the MOXA PT-G7828 Managed Ethernet Switch. You can submit your inquiry on our website and get the most friendly communication with our experts to choose high-quality industrial automation products at a reasonable price from our Middle East branches (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports28 Ports
10/100Mb RJ45 (Megabit) PortsNo
10/100/1000Mb RJ45 (Gigabit) PortsYes : 2 Ports (Up to 26 Ports)
100Mb Fiber optic multi mode (Megabit) PortsNo
100Mb Fiber optic single mode (Megabit) PortsNo
100Mb SFP Fiber optic (Megabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsYes : 2 Slots (Up to 26 Slots)
10/100Mb (Megabit) POE PortsNo
10/100/1000Mb (Gigabit) POE PortsUp to 24 Ports
Other portsYes : 6 x 4-Port slots for combination with LM-7000H modules, 1 x RS-232 Console Port (RJ45 connector), 1 x USB Port (Type A connector)
switch and hub : Features and capabilities
BackupYes : ABC-02
switch and hub : LED Indicators
LED Per PortYes
switch and hub : Power Requirements
Input CurrentWith PWR-HV-P48 installed: PWR input current (switch system), Max. 0.11 A @ 110 VDC, Max. 0.06 A @ 220 VDC, Max. 0.29 A @ 110 VAC, Max. 0.18 A @ 220 VAC, EPS input current (PoE system), Max. 0.53 A @ 48 VDC, (excluding power consumption of PoE devices); With PWR-LV-P48 installed: PWR input current (switch system), Max. 0.53 A @ 24 VDC, Max. 0.28 A @ 48 VDC, EPS input current (PoE system), Max. 0.53 A @ 48 VDC, (excluding power consumption of PoE devices); With PWR-HV-NP installed: PWR input current (switch system), Max. 0.11 A @ 110 VDC, Max. 0.06 A @ 220 VDC, Max. 0.29 A @ 110 VAC, Max. 0.18 A @ 220 VAC; With PWR-LV-NP installed: PWR input current (switch system), Max. 0.53 A @ 24 VDC, Max. 0.28 A @ 48 VDCMax. 0.18 A @ 220 VAC, EPS input current (PoE System), Max. 0.53 A @ 48 VDC (excluding power consumption of PoE devices)
Power Input Plugin ( Redundant )No
Input VoltageWith PWR-HV-P48 installed: 110/220 VDC/VAC for the switch system, 48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices); With PWR-LV-P48 installed: 24/48 VDC for the switch system, 48 VDC for PoE system (53 to 57 VDC is recommended for PoE+ devices); With PWR-HV-NP installed: 110/220 VDC/VAC for the switch system; With PWR-LV-NP installed: 24/48 VDC for the switch system
Operating VoltageWith PWR-HV-P48 installed: 88 to 300 VDC, 90 to 264 VAC for the switch system, 46 to 57 VDC for PoE systems; With PWR-LV-P48 installed: 18 to 72 VDC for the switch system, 46 to 57 VDC for PoE systems; With PWR-HV-NP installed: 88 to 300 VDC, 90 to 264 VAC for the switch system; With PWR-LV-NP installed: 18 to 72 VDC for the switch system
Power Consumption-
switch and hub : General
Fan / FanlessFanless
MTBF449,542 hrs
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 3
Switch typeManaged
Port AggregationYes
switch and hub : Physical Characteristics
Dimensions443 x 44 x 280 mm (17.44 x 1.73 x 11.02 in)
Housing-
Installation19-inch rack mounting
Operating Temperature-40 to 85°C (-40 to 185°F)
Operation Humidity5 to 95% (non-condensing)
Standards and CertificationsEMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Power Substation: IEC 61850-3 Edition 2 Class 2 (EMC), IEEE 1613; Railway: EN 50121-4; Safety: IEC 62368-1, UL 62368-1; IP30; Telcordia (Bellcore), GB
Storage Temperature-40 to 85°C (-40 to 185°F)
Weight3080 g (6.8 lb)
switch and hub : Standards and protocols
Protocols and work standardsLink Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2, V-ON, MRP, EtherNet/IP, Modbus TCP
Protocols and management standardsIPv4/IPv6, SNMP Inform, SNMPv1/v2c/v3, DHCP Server/Client, DHCP Option 66/67/82, BOOTP, TFTP, LLDP, RARP, HTTP, HTTPS, Telnet, Flow control, Back Pressure Flow Control, Port Mirror, Fiber check, Dying Gasp, SMTP, Syslog, IGMP v1/v2/v3, GMRP, GVRP, 802.1Q, QinQ VLAN
switch and hub : Package Checklist
Hardware installation guideYes
Power adapterNo
Power cableNo
