Operating Temperature (-40 to 85°C)
Relative Humidity (5 to 95% non-condensing).png)
IP protection (IP30)

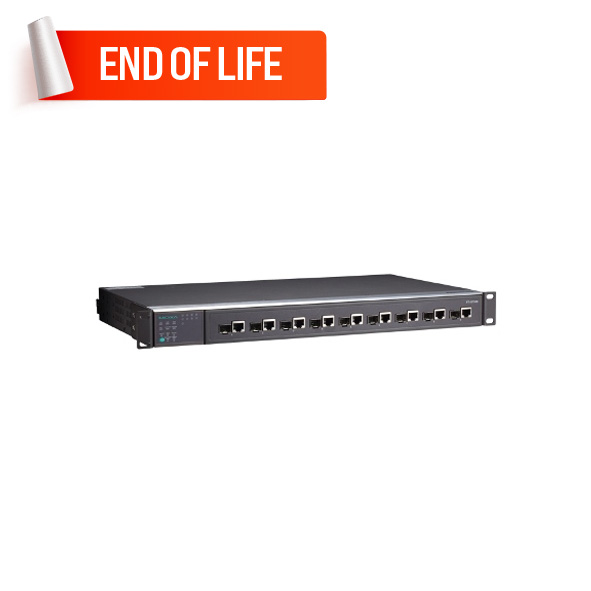

Power UtilityThe PT-G7509 has 9 combo Gigabit Ethernet ports, making it ideal for upgrading an existing network to Gigabit speeds and building a new full Gigabit backbone. The PT-G7509 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613). Gigabit transmission increases bandwidth to provide higher performance and quickly transfer large amounts of video, voice, and data across a network. The redundant Ethernet technologies Turbo Ring, Turbo Chain, and RSTP/STP/MSTP (IEEE 802.1w/D/s) functions increase system reliability and the availability of your network backbone. The choice of either front or rear wiring makes the PT-G7509 suitable for different types of applications.
End of Life Product - No Replacement
Please note that the PT-G7509 Series has been phased out. You can explore the PT-G7728 and PT-G7828 in the Rackmount Ethernet Switches.
Explore our extensive range of industrial automation products such as MOXA PT-G7509-F-24-24 Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Submit your inquiry to enjoy the on-time delivery service. Our sales experts will contact you to fulfill all your industrial automation needs.
| switch and hub : Interface | |
| Number of ports | 9 Ports |
| 10/100Mb RJ45 (Megabit) Ports | No |
| 10/100/1000Mb RJ45 (Gigabit) Ports | No |
| 100Mb Fiber optic multi mode (Megabit) Ports | No |
| 100Mb Fiber optic single mode (Megabit) Ports | No |
| 100Mb SFP Fiber optic (Megabit) Ports | No |
| 1000Mb SFP Fiber optic (Gigabit) Ports | No |
| 10/100Mb (Megabit) POE Ports | No |
| 10/100/1000Mb (Gigabit) POE Ports | No |
| Other ports | Yes : 9 x Combo Ports (10/100/1000BaseT(X) or 100/ 1000BaseSFP+), 1 x RS-232 Console Port (RJ45 connector), 1 x Alarm Contact Channel |
| switch and hub : Features and capabilities | |
| Backup | Yes : ABC-02 |
| switch and hub : LED Indicators | |
| LED Per Port | Yes |
| switch and hub : Power Requirements | |
| Input Current | 1.08 A @ 24 VDC |
| Power Input Plugin ( Redundant ) | Yes |
| Input Voltage | 24 VDC (18 to 36 VDC) |
| Operating Voltage | - |
| Power Consumption | - |
| switch and hub : General | |
| Fan / Fanless | Fanless |
| MTBF | 258,058 hrs |
| switch and hub : Switch specifications | |
| Most forwarding speed | - |
| Network working layers | Layer 2 |
| Switch type | Managed |
| Port Aggregation | Yes |
| switch and hub : Physical Characteristics | |
| Dimensions | 440 x 44 x 254 mm (17.32 x 1.73 x 10.00 in) |
| Housing | Aluminum |
| Installation | 19-inch rack mounting |
| Operating Temperature | -40 to 85°C (-40 to 185°F) |
| Operation Humidity | 5 to 95% (non-condensing) |
| Standards and Certifications | Safety: EN 60950-1, UL 60950-1, CSA C22.2 No. 60950-1; EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; IP30; Telcordia SR332 |
| Storage Temperature | -40 to 85°C (-40 to 185°F) |
| Weight | 3300 g (7.33 lb) |
| switch and hub : Standards and protocols | |
| Protocols and work standards | EtherNet/IP, Modbus TCP, Link Aggregation, MSTP, RSTP, STP, Turbo Chain, Turbo Ring v1/v2 |
| Protocols and management standards | Back Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, 802.1Q, GMRP, GVRP, IGMP v1/v2c, Port-based VLAN, VLAN unaware |
| switch and hub : Package Checklist | |
| Hardware installation guide | Yes |
| Power adapter | No |
| Power cable | No |
