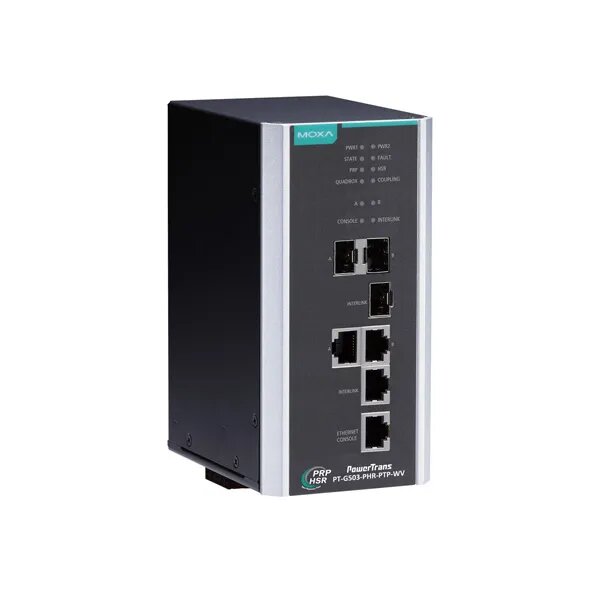

MOXA PT-G503-PHR-PTP-HV Managed Ethernet Switch

MOXA PT-G503-PHR-PTP-HV Managed Ethernet Switch
MOXA PT-G503-PHR-PTP-HV Managed Ethernet Switch
MOXA PT-G503-PHR-PTP-HV Managed Ethernet Switch
MOXA PT-G503-PHR-PTP-HV Managed Ethernet Switch
MOXA PT-G503-PHR-PTP-HV Managed Ethernet Switch

  • 3 x Combo Ports (10/100/1000BaseT(X) or 100/1000BaseSFP+)
  • 1 x 10/100/1000BaseT(X) Ethernet console port
  • IP40-rated Aluminum body design
  • IEEE 1588v2 PTP and IEC 62439-3 Clause 5 (HSR) compliant
  • DIN-rail mounting
  • 1 isolated dual power supply (88 to 300 VDC or 85 to 264 VAC)
  • -40 to 85°C operating temperature

  • Brand: MOXA
  • Model: PT-G503-PHR-PTP-HV
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Power Utility
  • Railway Transportation
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Managed Switches , Layer 2 Switches , DIN-Rail Ethernet Switches , IEC 61850-3 Ethernet Switches , Industrial Data Communications , Industrial Ethernet Switches , Factory Automation Products , Railway Transportation Products , Power Utility Products , Switches , MOXA PT-G503 Series

The PT-G503-PHR-PTP Series redundancy boxes (RedBoxes) are compliant with the latest standardized redundancy protocols for industrial automation networks, IEC 62439-3 Clause 4 (Parallel Redundancy Protocol, PRP) and IEC 62439-3 Clause 5 (High-availability Seamless Redundancy, HSR). PRP/HSR ensures the highest system availability and data integrity for mission-critical applications in electrical substations and/or process automation systems that require zero recovery time redundancy. The redundant protocols Coupling and QuadBox are also supported. With Coupling and QuadBox, HSR rings can be connected to make the redundant network more versatile. The PT-G503-PHR-PTP Series comes with three 10/100/1000BaseT(X) and 100/1000BaseSFP slot combo ports.

One slot (INTERLINK port) is for an internal link to connect with a SAN (Singly Attached Node). The other two ports (LAN A and LAN B ports) are for redundant PRP/HSR protocol communications. With this full Gigabit Ethernet port design, the PT-G503-PHR-PTP Series provides high performance for PRP/HSR systems.

The PT-G503-PHR-PTP Series also provides IEEE 1588v2 PTP in end-to-end one-step transparent clock mode for time-critical applications and power inputs with 24/48 VDC or 110/220 VDC/VAC ranges to increase the reliability of the power supply.



You can also find the PT-G503-PHR-PTP-WV model in the IEC 61850-3 Ethernet Switches.



Easy World Automation offers the easiest way to buy the MOXA PT-G503-PHR-PTP-HV Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports3 Ports
10/100Mb RJ45 (Megabit) PortsNo
10/100/1000Mb RJ45 (Gigabit) PortsNo
100Mb Fiber optic multi mode (Megabit) PortsNo
100Mb Fiber optic single mode (Megabit) PortsNo
100Mb SFP Fiber optic (Megabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsNo
10/100Mb (Megabit) POE PortsNo
10/100/1000Mb (Gigabit) POE PortsNo
Other portsYes : 3 x Combo Ports 10/100/1000BaseT(X) or 100/1000BaseSFP, 1 x 10/100/1000BaseT(X) Ethernet console port, 1 x USB Port (Type A connector), 1 x Serial console port (Type B connector), 1 x Alarm Contact Channel, 1 x Digital Input
switch and hub : Features and capabilities
BackupYes : ABC-02
switch and hub : LED Indicators
LED Per PortYes
switch and hub : Power Requirements
Input Current0.260/0.170 A @ 110/220 VAC, 0.150/0.080 A @ 110/220 VDC
Power Input Plugin ( Redundant )No
Input Voltage110/220 VAC/VDC (85 to 264 VAC, 88 to 300 VDC)
Operating Voltage-
switch and hub : General
Fan / FanlessFanless
MTBF566,844 hrs
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 2
Switch typeManaged
Port AggregationNo
switch and hub : Physical Characteristics
Dimensions80 x 160 x 110 mm (3.15 x 6.30 x 4.33 in)
HousingAluminum
InstallationDIN-rail mounting
Operating Temperature-40 to 85°C (-40 to 185°F)
Operation Humidity5 to 95% (non-condensing)
Standards and CertificationsSafety: UL 508; EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4; IP40; Telcordia (Bellcore) Standard TR/SR
Storage Temperature-40 to 85°C (-40 to 185°F)
Weight1210 g (2.69 lb)
switch and hub : Standards and protocols
Protocols and work standardsHSR, PRP, RSTP grouping, PTP
Protocols and management standardsBack Pressure Flow Control, BOOTP, DHCP Client, Fiber check, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, Static Multicast
switch and hub : Package Checklist
Hardware installation guideYes
Power adapterNo
Power cableNo
