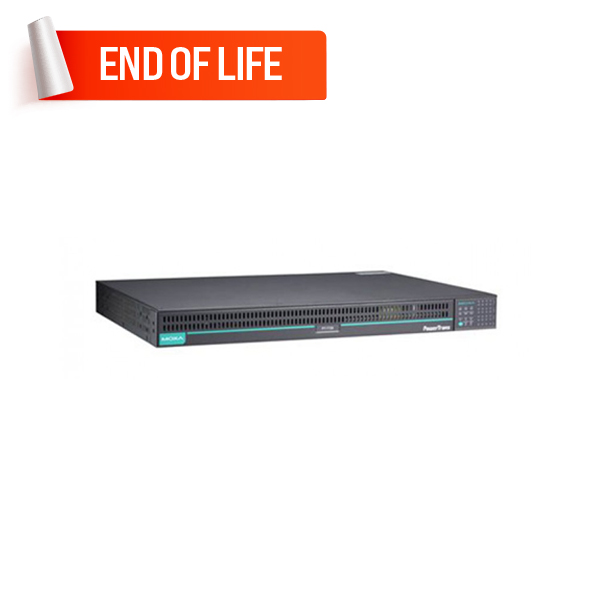

MOXA PT-7728-PTP-R-48-48 Managed Ethernet Switches

MOXA PT-7728-PTP-R-48-48 Managed Ethernet Switches
MOXA PT-7728-PTP-R-48-48 Managed Ethernet Switches
MOXA PT-7728-PTP-R-48-48 Managed Ethernet Switches
MOXA PT-7728-PTP-R-48-48 Managed Ethernet Switches
MOXA PT-7728-PTP-R-48-48 Managed Ethernet Switches
  • Modular Managed Ethernet Switch
  • 4 x Slots for combination with PM-7200 FE/GE modules
  • Cabling Direction: Rear cabling
  • Supports IEEE 1588v2 PTP (Precision Time Protocol)
  • IP30-rated Aluminum body design
  • 48 VDC Redundant dual power inputs
  • Rackmount installation design
  • -40 to 85°C operating temperature
  • Brand: MOXA
  • Model: PT-7728-PTP-R-48-48
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP30)
  • Power Utility
  • Railway Transportation
  • Road Transportation
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Managed Switches , Layer 2 Switches , IEC 61850-3 Ethernet Switches , Rackmount Ethernet Switches , Rackmount Switches , Industrial Data Communications , Industrial Ethernet Switches , Factory Automation Products , Power Utility Products , Railway Transportation Products , Road Transportation Products , Rackmount , Switches , MOXA PT-7728 Series

The PT-7728 is designed to meet the demands of power substation automation systems (IEC 61850-3, IEEE 1613), and railway applications (EN 50121-4), and also features critical packet prioritization (GOOSE and SMVs) and a built-in MMS server. The PT-7728’s Gigabit and Fast Ethernet backbone, redundant ring, and 24 VDC, 48 VDC, or 110/220 VDC/VAC dual isolated redundant power supplies increase the reliability of your communications and save on cabling/wiring costs. The modular design of the PT-7728 also makes network planning easy and allows greater flexibility by letting you install up to 4 Gigabit ports and 24 Fast Ethernet ports. Along with the optional front or rear wiring, these features together make the PT-7728 suitable for a variety of industrial applications.


End of Life Product - Replacement Available

Please note that the PT-7728 Series has been phased out and replaced by the RKS-G4028 Series.


Easy World Automation offers the easiest way to buy the MOXA PT-7728-PTP-R-48-48 Managed Ethernet Switches in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

switch and hub : Interface
Number of ports28 Ports
10/100Mb RJ45 (Megabit) PortsUp to 24 Ports
10/100/1000Mb RJ45 (Gigabit) PortsUp to 4 Ports
100Mb Fiber optic multi mode (Megabit) PortsUp to 24 Ports
100Mb Fiber optic single mode (Megabit) PortsUp to 24 Ports
100Mb SFP Fiber optic (Megabit) PortsUp to 24 Slots
1000Mb SFP Fiber optic (Gigabit) PortsUp to 4 Slots
10/100Mb (Megabit) POE PortsNo
10/100/1000Mb (Gigabit) POE PortsNo
Other portsYes : 1 x RS-232 Console Port (RJ45 connector), 1 x Alarm Contact Channel
switch and hub : Features and capabilities
BackupYes : ABC-01
switch and hub : LED Indicators
LED Per PortYes
switch and hub : Power Requirements
Input Current1.12 A @ 48 VDC
Power Input Plugin ( Redundant )Yes
Input Voltage48 VDC (36 to 72 VDC)
Operating Voltage-
Power Consumption-
switch and hub : General
Fan / FanlessFanless
MTBF393,828 hrs
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 2
Switch typeManaged
Port AggregationYes
switch and hub : Physical Characteristics
Dimensions440 x 44 x 325 mm (17.32 x 1.73 x 12.80 in)
HousingAluminum
Installation19-inch rack mounting
Operating Temperature-40 to 85°C (-40 to 185°F)
Operation Humidity5 to 95% (non-condensing)
Standards and CertificationsSafety: UL 60950-1; EMI: EN 55032 Class A, CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 35 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11 DIPs; Power Substation: IEC 61850-3, IEEE 1613; Railway: EN 50121-4, EN 50155 (complies with a portion of EN 50155 specifications); Traffic Control: NEMA TS2; IP30; Telcordia SR332
Storage Temperature-40 to 85°C (-40 to 185°F)
Weight5.9kg
switch and hub : Standards and protocols
Protocols and work standardsIEEE 1588v2 PTP, EtherNet/IP, Modbus TCP, HSR, PRP
Protocols and management standardsBack Pressure Flow Control, BOOTP, DHCP Option 66/67/82, DHCP Server/Client, Flow control, HTTP, IPv4/IPv6, LLDP, Port Mirror, RARP, RMON, SMTP, SNMP Inform, SNMPv1/v2c/v3, Syslog, Telnet, TFTP, Fiber check, 802.1Q, GMRP, GVRP, IGMP v1/v2c, QinQ VLAN, VLAN unaware
switch and hub : Package Checklist
Hardware installation guideYes
Power adapterNo
Power cableNo
