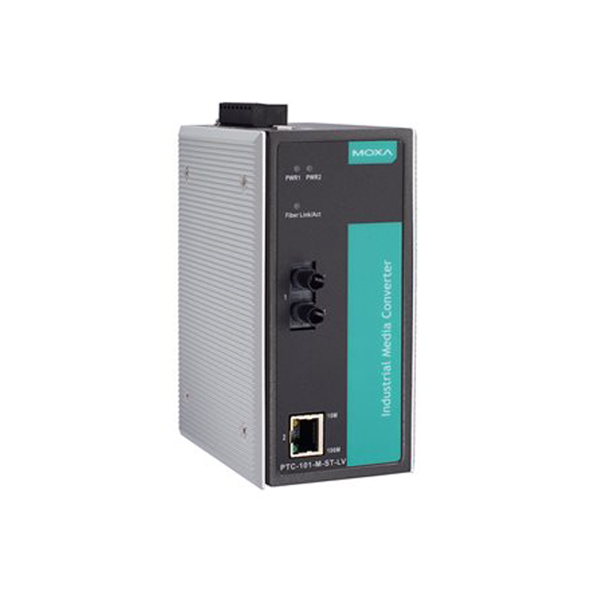

MOXA PTC-101-S-ST-LV Ethernet To Fiber Converter

MOXA PTC-101-S-ST-LV Ethernet To Fiber Converter
MOXA PTC-101-S-ST-LV Ethernet To Fiber Converter
MOXA PTC-101-S-ST-LV Ethernet To Fiber Converter
MOXA PTC-101-S-ST-LV Ethernet To Fiber Converter
MOXA PTC-101-S-ST-LV Ethernet To Fiber Converter

  • 1 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x 100BaseFX Ports (single-mode ST connector)
  • 40 KM Typical data transmission distance on fiber
  • 20 to 72 VDC Redundant dual power inputs
  • Metal body design
  • DIN-rail mounting
  • -40 to 85°C operating temperature

  • Brand: MOXA
  • Model: PTC-101-S-ST-LV
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Vibration (IEC 60068-2-6)
  • Factory Automation
  • Power Utility
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet to Fiber Converters , Media Converters , Industrial Data Communications , Industrial Media Converters , Industrial Converters , Factory Automation Products , Power Utility Products , Converters , MOXA PTC-101 Series

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of IEC 61850-3, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the media converters suitable for a variety of industrial applications.



You can also find the PTC-101-S-ST-HV, PTC-101-S-SC-LV, and PTC-101-S-LC-LV models in the Industrial Media Converters.



Experience the convenient way to purchase the MOXA PTC-101-S-ST-LV Ethernet To Fiber Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Our sales experts will provide the most helpful information about the price and sale conditions for a wonderful buying experience.

eth to fiber : Interface
10/100Mb RJ45 (Megabit) PortsYes : 1 Port
10/100/1000Mb RJ45 (Gigabit) PortsNo
10/100Mb (Megabit) POE PortsNo
100Mb Fiber optic multi mode (Megabit) PortsNo
1000Mb Fiber optic multi mode (Gigabit) PortsNo
100Mb Fiber optic single mode (Megabit) PortsYes : 1 Port (ST connector)
1000Mb Fiber optic single mode (Gigabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsNo
M12 portNo
Alert OutputNo
Magnetic Isolation Protection1.5 kV (built-in)
eth to fiber : Standards and protocols
Protocols and work standardsIEEE 802.3, IEEE 802.3u/x
eth to fiber : General
Maximum cable length for data transfer40 KM
MTBF4,660,534 hrs
eth to fiber : Power Requirements
Input Voltage20 to 72 VDC
Input Current150 mA @ 20 VDC
Overload Current ProtectionSupported
Type of power input-
Power Consumption150 mA @ 20 VDC
eth to fiber : Physical Characteristics
Standards and CertificationsEMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 62368-1, UL 62368-1,, UL 60950-1; Vibration: IEC 60068-2-6; Power Substation: IEC 61850-3; Telcordia SR332
HousingMetal
Dimensions152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
WeightPackaged: 952 g (2.09 lb), Product only: 785 g (1.73 lb)
Operating Temperature-40 to 85°C (-40 to 185°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Operation Humidity5 to 95% (non-condensing)
InstallationDIN-rail mounting
