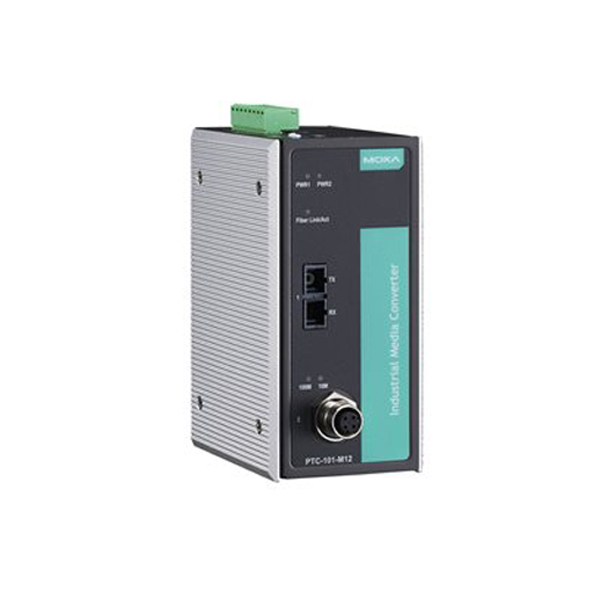

MOXA PTC-101-M12-S-SC-LV-T Ethernet To Fiber Converter

MOXA PTC-101-M12-S-SC-LV-T Ethernet To Fiber Converter
MOXA PTC-101-M12-S-SC-LV-T Ethernet To Fiber Converter
MOXA PTC-101-M12-S-SC-LV-T Ethernet To Fiber Converter
MOXA PTC-101-M12-S-SC-LV-T Ethernet To Fiber Converter
MOXA PTC-101-M12-S-SC-LV-T Ethernet To Fiber Converter
  • 1 x 10/100BaseT(X) Ports (M12 connector)
  • 1 x 100BaseFX Ports (single-mode SC connector)
  • 40 KM Typical data transmission distance on fiber
  • DIN-rail mounting
  • 20 to 72 VDC input power range
  • Metal body design
  • -40 to 85°C operating temperature
  • Brand: MOXA
  • Model: PTC-101-M12-S-SC-LV-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 85°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Vibration (IEC 60068-2-6)
  • Factory Automation
  • Power Utility
  • Railway Transportation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Media Converters , Ethernet to Fiber Converters , Media Converters , Industrial Data Communications , Industrial Serial Connectivity , Serial Media Converters , Industrial Converters , Industrial Media Converters , Factory Automation Products , Power Utility Products , Railway Transportation Products , Converters , MOXA PTC-101-M12 Series

The PTC-101 Ethernet-to-fiber media converters convert from 10/100BaseT(X) to 100BaseFX. Models are available with either SC, ST, or LC connectors. The PTC-101 converters eliminate the need for additional wiring, and support IEEE 802.3 and IEEE 802.3u/x protocols with 10/100M, full/half-duplex, and MDI/MDI-X auto-sensing to provide a total solution for your industrial Ethernet networks. The PTC-101 is compliant with mandatory sections of EN 50155, covering operating temperature, power input voltage, surge, ESD, and vibration, as well as conformal coating and power insulation, making the switches suitable for a variety of industrial applications.


You can also find the PTC-101-M12-S-SC-LV-CT-T, PTC-101-M12-S-ST-LV-CT-T, and PTC-101-M12-S-ST-LV-T models in the Industrial Media Converters.


Easy World Automation offers the easiest way to buy the MOXA PTC-101-M12-S-SC-LV-T Ethernet To Fiber Converter in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

eth to fiber : Interface
10/100Mb RJ45 (Megabit) PortsNo
10/100/1000Mb RJ45 (Gigabit) PortsNo
10/100Mb (Megabit) POE PortsNo
100Mb Fiber optic multi mode (Megabit) PortsNo
1000Mb Fiber optic multi mode (Gigabit) PortsNo
100Mb Fiber optic single mode (Megabit) PortsYes : 1 SC Port
1000Mb Fiber optic single mode (Gigabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsNo
M12 portYes : 1 x 10/100Mb (Megabit) Port
Alert OutputYes
Magnetic Isolation Protection1.5 kV (built-in)
eth to fiber : Standards and protocols
Protocols and work standardsIEEE 802.3 and IEEE 802.3u/x
eth to fiber : General
Maximum cable length for data transfer40 Km on the fiber
MTBF1,211,613 hrs
eth to fiber : Power Requirements
Input Voltage20 to 72 VDC
Input Current150 mA @ 20 to 72 VDC
Overload Current ProtectionSupported
Type of power input-
Power Consumption150 mA @ 20 to 72 VDC
eth to fiber : Physical Characteristics
Standards and CertificationsEMC: EN 55032/24; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 3 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF, IEC 61000-4-11; Environmental Testing: IEC 60068-2-1, IEC 60068-2-14, IEC 60068-2-2, IEC 60068-2-3; Safety: EN 60950-1, UL 60950-1; Vibration: IEC 60068-2-6; MIL-HDBK-217F
HousingMetal
Dimensions152.15 x 126.46 x 66.65 mm (5.99 x 4.86 x 2.62 in)
WeightPackaged: 875 g (1.92 lb), Product only: 690 g (1.52 lb
Operating Temperature-40 to 85°C (-40 to 185°F)
Storage Temperature-40 to 85°C (-40 to 185°F)
Operation Humidity5 to 95% (non-condensing)
InstallationDIN-rail mounting
