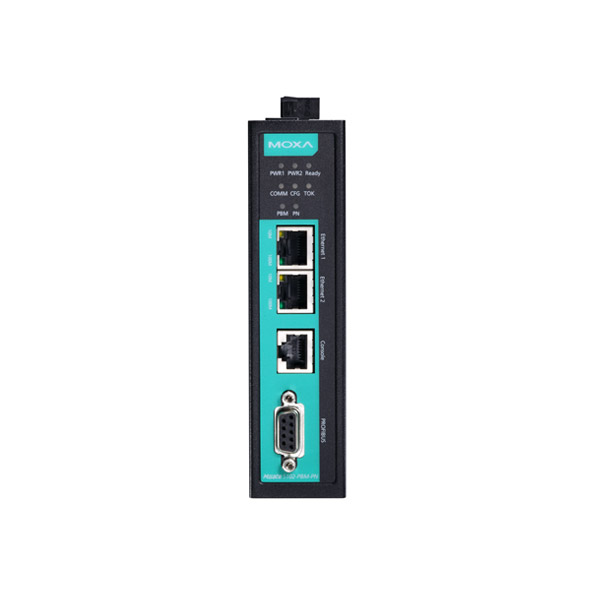

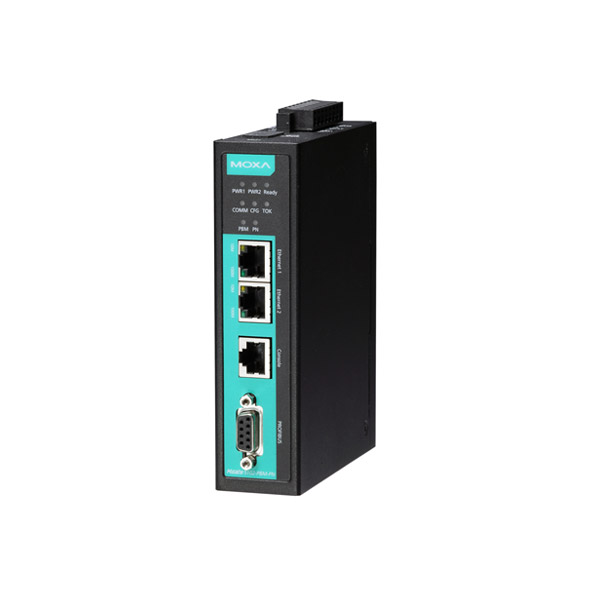

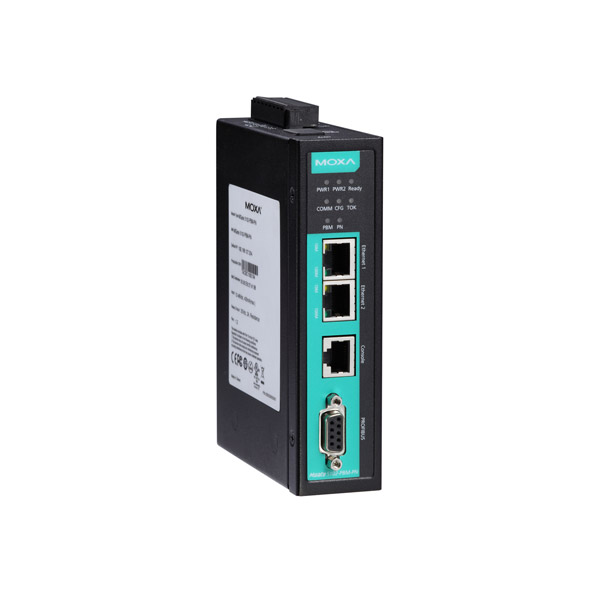

MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway

MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway
MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway

  • Converts PROFIBUS to PROFINET
  • 2 x 10/100BaseT(X) Ports (RJ45 connector)
  • 1 x PROFIBUS port (DB9 female connector)
  • 2 KV Isolation protection for PROFIBUS port
  • 12 to 48 VDC Redundant dual power inputs
  • IP30-rated Metal body design
  • -40 to 75°C operating temperature

  • Brand: MOXA
  • Model: MGate 5102-PBM-PN-T
0 reviews • Write a review
Datasheet User Manual User Guide
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • Shock (IEC 60068-2-27)
  • Freefall (IEC 60068-2-32)
  • Vibration (IEC 60068-2-6, IEC 60068-2-64)
  • IP protection (IP30)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Oil & Gas
  • Power Utility
  • Factory Automation
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Edge Connectivity , Industrial Ethernet Gateways , Industrial Gateways , Ethernet Gateways , Protocol Gateways , PROFINET Gateways , Industrial Data Communications , Factory Automation Products , Oil & Gas Products , Power Utility Products , Gateways , MOXA MGate 5102-PBM-PN Series

The MGate 5102-PBM-PN gateway provides a communication portal between PROFIBUS devices (e.g., PROFIBUS PLC or drive) and the PROFINET host. All models are protected with a rugged metallic casing, DIN-rail mountable, and offer optional built-in optical isolation. The PROFIBUS and Ethernet status LED indicators are provided for easy maintenance. The rugged design is suitable for industrial applications such as oil and gas, power, process automation, and factory automation.


You can also find the MGate 5102-PBM-PN model in the Industrial Ethernet Gateways.


Easy World Automation offers the easiest way to buy the MOXA MGate 5102-PBM-PN-T Industrial Ethernet Gateway in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman) at the lowest price through online inquiring. Our sales experts will contact you to fulfill all your industrial automation needs.

industrial gateway : Interface
10/100Mb RJ45 (Megabit) PortsYes : 2 Ports (Auto MDI/MDI-X connection)
Magnetic Isolation Protection1.5 kV (built-in)
Other portsYes : 1 x PROFIBUS port with 2 KV isolation (DB9 female connector)
ProtocolsEthernet: PROFINET IO Device; Serial: PROFIBUS DP-V1 Master; PROFIBUS: PROFIBUS DP
industrial gateway : Serial port specifications
Number of Ports-
Console PortYes : RS-232 (TxD, RxD, GND), 8-pin RJ45 (115200, n, 8, 1)
Connectors-
Serial Standards-
IsolationNo
industrial gateway : Serial Communication Parameters
Data Bits-
Stop Bits-
Parity-
Flow Control-
Baudrate-
industrial gateway : Serial Signals
RS-232 Signals-
RS-422 Signals-
RS-485-2w Signals-
RS-485-4w Signals-
industrial gateway : General
ManagementARP, DHCP Client, DNS, HTTP, HTTPS, SMTP, SNMP Trap, SNMPv1/v2c/v3, TCP/IP, Telnet, SSH, UDP, NTP Client
MTBF980,417 hrs
Industrial Gateway : Memory
microSD SlotYes : Up to 32 GB (SD 2.0 compatible)
industrial gateway : Power Requirements
Input Current430 mA @ 12 VDC
Input Voltage12 to 48 VDC (Redundant dual power inputs)
Power ConnectorScrew-fastened Euroblock terminal
industrial gateway : Security
SecuritySecurity Protocols: SNMPv3, SNMPv2c Trap, HTTPS (TLS 1.3)
AuthenticationLocal database
EncryptionHTTPS, AES-128, AES-256, SHA-256
industrial gateway : Physical Characteristics
Dimensions36 x 105 x 140 mm (1.42 x 4.14 x 5.51 in)
Standards and CertificationsEMC: EN 55032/35; EMI: CISPR 32, FCC Part 15B Class B; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 10 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 2 kV, IEC 61000-4-5 Surge: Power: 2 kV, IEC 61000-4-6 CS: 150 kHz to 80 MHz: 10 V/m; Signal: 10 V/m, IEC 61000-4-8 PFMF; Safety: IEC 60950-1, EN 62368-1, UL 508; Hazardous Locations: ATEX, Class I Division 2, IECEx; Freefall: IEC 60068-2-32; Shock: IEC 60068-2-27; Vibration: IEC 60068-2-6, IEC 60068-2-64; IP30; Telcordia SR332
HousingMetal
Operating Temperature-40 to 75°C (-40 to 167°F)
Weight500 g (1.10 lb)
Storage Temperature-40 to 85°C (-40 to 185°F)
Ambient Relative Humidity5 to 95% (non-condensing)
InstallationDIN-rail mounting
