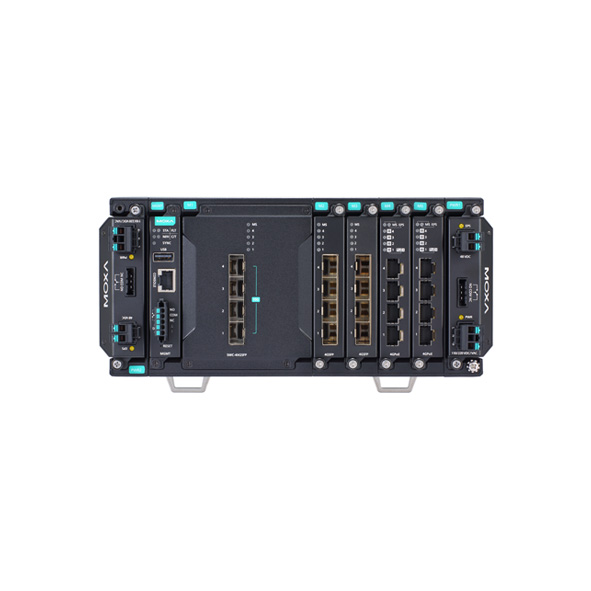

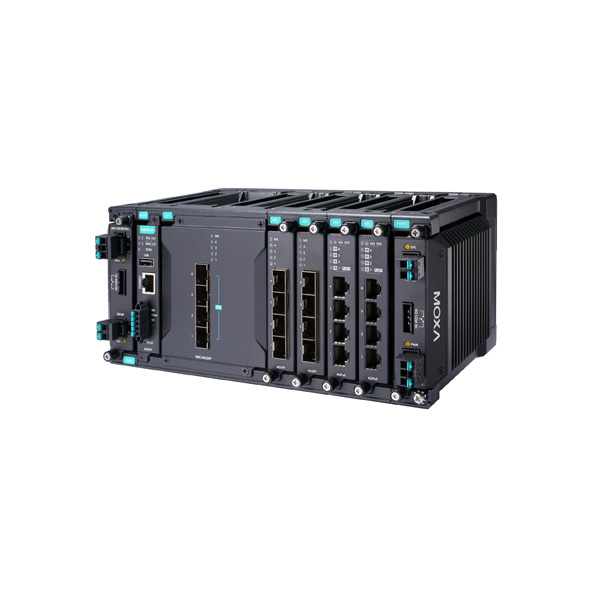

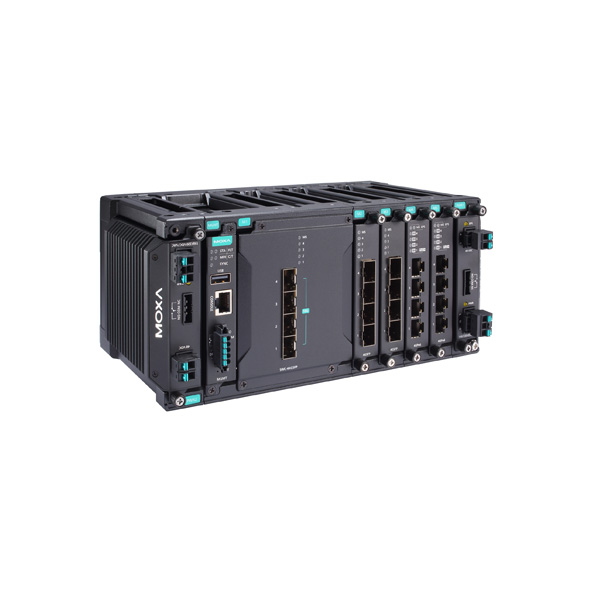

MOXA MDS-G4020-L3-4XGS-T Modular Managed Ethernet Switch

MOXA MDS-G4020-L3-4XGS-T Modular Managed Ethernet Switch
MOXA MDS-G4020-L3-4XGS-T Modular Managed Ethernet Switch
MOXA MDS-G4020-L3-4XGS-T Modular Managed Ethernet Switch
MOXA MDS-G4020-L3-4XGS-T Modular Managed Ethernet Switch
MOXA MDS-G4020-L3-4XGS-T Modular Managed Ethernet Switch
MOXA MDS-G4020-L3-4XGS-T Modular Managed Ethernet Switch
MOXA MDS-G4020-L3-4XGS-T Modular Managed Ethernet Switch

  • Modular Managed Ethernet Switch
  • Layer 3 routing functionality
  • Pre-installed Modules: 4 x Embedded 10 Gigabit ports
  • 4 x Slots for optional 4-port FE/GE modules
  • 24 to 48 VDC or 110 to 220 VDC/VAC Input power ranges
  • IP40-rated Rugged die-cast design
  • DIN-rail, Wall, and Rack mounting
  • -40 to 75°C operating temperature range

  • Brand: MOXA
  • Model: MDS-G4020-L3-4XGS-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Freefall (IEC 60068-2-31)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Railway Transportation
  • Road Transportation
  • Power Utility
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Managed Ethernet Switches , Managed Switches , Layer 2 Managed Switches , Layer 2 Switches , PoE Switches , Industrial Data Communications , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Road Transportation Products , Railway Transportation Products , Power Utility Products , PoE , Switches , MOXA MDS-G4020-L3-4XGS Series

The MDS-G4020-L3-4XGS Series modular switches support 4 10GbE + 16 Gigabit ports, including 4 embedded ports, 4 interface module expansion slots, and 2 power module slots to ensure sufficient flexibility for a variety of applications. The highly compact MDS-G4020-L3-4XGS Series is designed to meet evolving network requirements, ensuring effortless installation and maintenance, and features a hot-swappable module design that enables you to easily change or add modules without shutting down the switch or interrupting network operations.

The multiple Ethernet modules (RJ45 and SFP) and power units (24/48 VDC and 110/220 VAC/VDC) provide even greater flexibility as well as suitability for different operating conditions, delivering an adaptive full Gigabit platform that provides the versatility and bandwidth necessary to serve as an Ethernet aggregation/edge switch. Featuring a compact design that fits in confined spaces, multiple mounting methods, and convenient tool-free module installation, the MDS-G4020-L3-4XGS Series switches enable versatile and effortless deployment without the need for highly skilled engineers. With multiple industry certifications and highly durable housing, the MDS-G4020-L3-4XGS Series can reliably operate in tough and hazardous environments such as power substations, mining sites, ITS, and oil and gas applications. Support for dual LV or HV power modules provides redundancy for high reliability and availability and also offers flexibility to accommodate the power requirements of different applications.



You can also find the MDS-G4012-L3-4XGS-T model in the DIN-Rail Ethernet Switches.



Inquire about the MOXA MDS-G4020-L3-4XGS-T Modular Managed Ethernet Switch, designed for industrial automation solutions. Feel free to get in touch with our sales team to give you the best solutions at the best global price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman).

switch and hub : Interface
Number of ports20 Ports
10/100Mb RJ45 (Megabit) PortsUp to 16 ports
10/100/1000Mb RJ45 (Gigabit) PortsUp to 16 ports
100Mb Fiber optic multi mode (Megabit) PortsNo
100Mb Fiber optic single mode (Megabit) PortsNo
100Mb SFP Fiber optic (Megabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsUp to 16 ports
10/100Mb (Megabit) POE PortsNo
10/100/1000Mb (Gigabit) POE PortsNo
Other portsYes : 4 x 10G SFP+ Slots, 4 x Slots for optional 4-port FE/GE modules, 1 x Console Port, 1 x USB Port (Type A connector), 1 x Digital Input Channel (On MGMT Module), 3 x Alarm Contact Channel (On MGMT, PWR1, PWR2 Module)
switch and hub : Features and capabilities
BackupNo
switch and hub : LED Indicators
LED Per PortYes
switch and hub : Power Requirements
Input CurrentWith PWR-HV-P48-A/PWR-HV-NP installed: Max. 0.38 A @ 110 VDC, Max. 0.20 A @ 220 VDC, Max. 0.75 A @ 110 VAC, Max. 0.48 A @ 220 VAC; With PWR-LV-P48-A/PWR-LV-NP installed: Max. 1.90 A @ 24 VDC, Max. 0.95 A @ 48 VDC; EPS (PoE models only): Max. 8.2 A @ 48 VDC
Power Input Plugin ( Redundant )No
Input VoltageWith PWR-HV-P48–A installed: 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz, PoE: 48 VDC; With PWR-LV-P48–A installed: 24/48 VDC, PoE: 48 VDC; With PWR-HV-NP installed: 110/220 VDC, 110 VAC, 60 HZ, 220 VAC, 50 Hz; With PWR-LV-NP installed: 24/48 VDC
Operating VoltageWith PWR-HV-P48–A installed: 88 to 300 VDC, 90 to 264 VAC, 47 to 63 Hz, PoE: 46 to 57 VDC; With PWR-LV-P48–A installed: 18 to 72 VDC, PoE: 46 to 57 VDC; With PWR-HV-NP installed: 88 to 300 VDC, 90 to 264 VAC, 47 to 63 H: With PWR-LV-NP installed: 18 to 72 VDC
Power ConsumptionWith PWR-HV-P48-A/PWR-HV-NP: Max. 41.8 W @ 110 VDC, Max. 44.2 W @ 220 VDC, Max. 46.6 W @ 110 VAC, Max. 46.5 W @ 220 VAC, With; PWR-LV-P48-A/PWR-LV-NP: Max. 45.8 W @ 24 VDC, Max. 45.8 W @ 48 VDC
switch and hub : General
Fan / FanlessFanless
MTBF794,302 hrs
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 3
Switch typeManaged
Port AggregationYes
switch and hub : Physical Characteristics
Dimensions239 x 115 x 163.25 mm (9.41 x 4.53 x 6.43 in); 254 x 115 x 163.25 mm (10 x 4.53 x 6.43 in) with dual PWR-HV-P48-A/PWR-LV-P48-A power modules installed
HousingRugged die-cast
InstallationDIN-rail mounting, Wall mounting (with optional kit), Rack mounting (with optional kit)
Operating Temperature-40 to 75°C (-40 to 167°F)
Operation Humidity5 to 95% (non-condensing)
Standards and CertificationsEMC: EN 55032/35, EN 61000-6 2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF, IEC 61000-4-11; Safety: EN 62368-1, IEC 62368-1, UL 62368-1, IEC 60950-1, UL 61010-2-201, EN 61010-2-201; Railway: EN 50121-4; Traffic Control: NEMA TS2; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-31; Vibration: IEC 60068-2-6; Power Substation: IEC 61850-3, IEEE 1613; IP40; Telcordia SR332
Storage Temperature-40 to 85°C (-40 to 185°F)
Weight3,400 g (7.50 lb)
switch and hub : Standards and protocols
Protocols and work standardsSTP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MRP, MSTP, Network Loop Protection, IPv4, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, EtherNet/IP, 802.1X, QoS, HTTPS, HTTP, Modbus TCP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Protocols and management standardsIPv4, ARP, Flow control, Back Pressure Flow Control, DHCP Relay Agent (Option 82), Fiber check, RARP, LLDP, Linkup Delay, Port Mirroring (SPAN, RSPAN), SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
switch and hub : Package Checklist
Hardware installation guideYes
Power adapterNo
Power cableNo
