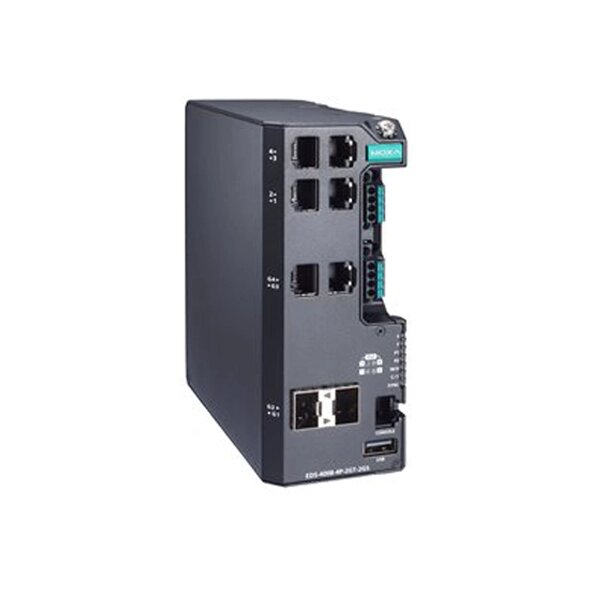

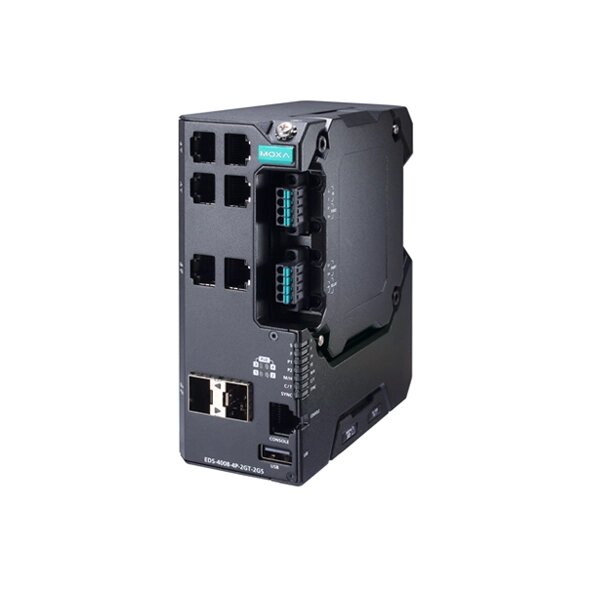

MOXA EDS-4008-4P-2GT-2GS-LVB-T Managed Ethernet Switch

MOXA EDS-4008-4P-2GT-2GS-LVB-T Managed Ethernet Switch
MOXA EDS-4008-4P-2GT-2GS-LVB-T Managed Ethernet Switch
MOXA EDS-4008-4P-2GT-2GS-LVB-T Managed Ethernet Switch
MOXA EDS-4008-4P-2GT-2GS-LVB-T Managed Ethernet Switch
MOXA EDS-4008-4P-2GT-2GS-LVB-T Managed Ethernet Switch

  • 4 x PoE Ports (10/100BaseT(X), RJ45 connector)

  • 2 x

    10/100/1000BaseT(X) Ports (RJ45 connector)

  • 2 x

    100/1000BaseSFP Slots

  • 12/24/48 VDC Redundant dual power inputs

  • Pre-installed PWR-103-LV-VB-I Power Module

  • DIN-rail and wall mounting

  • IP40-rated Metal body design

  • -40 to 75°C operating temperature
  • Brand: MOXA
  • Model: EDS-4008-4P-2GT-2GS-LVB-T
0 reviews • Write a review
Datasheet
  • Operating Temperature (-40 to 75°C)
  • Relative Humidity (5 to 95% non-condensing)
  • IP protection (IP40)
  • Shock (IEC 60068-2-27)
  • Vibration (IEC 60068-2-6)
  • Freefall (IEC 60068-2-32)
  • Hazardous Location (Class 1 Division 2, ATEX, IECEx)
  • Factory Automation
  • Railway Transportation
  • Marine
  • Power Utility
  • Road Transportation
  • Oil & Gas
$0.00
Ex Tax: $0.00
Buy Now ENQUIRE NOW
Add to Wish List Compare this Product
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
Quickview
Beijer BoX2 extreme protocol converter-IoT gateway-edge controller
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7B-SM graphic touch marine HMI
Quickview
Beijer iX T7B-SM graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 12 HP SC Rugged HMI
Quickview
Beijer X2 extreme 12 HP SC Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 15 HP Rugged HMI
Quickview
Beijer X2 extreme 15 HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer X2 extreme 7 SL HP Rugged HMI
Quickview
Beijer X2 extreme 7 SL HP Rugged HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A graphic touch HMI
Quickview
Beijer iX T4A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T4A-SC graphic touch marine HMI
Quickview
Beijer iX T4A-SC graphic touch marine HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Beijer iX T7A graphic touch HMI
Quickview
Beijer iX T7A graphic touch HMI
$0.00
Ex Tax:$0.00
Add to Wish List Compare this Product
Tags: Industrial Network Infrastructure , Ethernet Switches , Layer 2 Managed Switches , PoE Switches , Managed Ethernet Switches , Managed Switches , Switches , Industrial Data Communications , Industrial Ethernet Switches , DIN-Rail Ethernet Switches , Road Transportation Products , Railway Transportation Products , Power Utility Products , Marine Products , Oil & Gas Products , Factory Automation Products , MOXA EDS-4008 Series

The EDS-4008 Series is a range of 8-port managed Fast Ethernet switches with the option for four 1 Gbps uplink ports or two 100M ST/SC fiber-optic ports. This Series also offers models with four 10/100BaseT(X) 802.3af (PoE), 802.3at (PoE+), and 802.3bt-compliant Ethernet PoE port options to connect high-bandwidth PoE devices.

The EDS-4008 Series is compliant with the IEC 62443-4-2 and IEC 62443-4-1 Industrial Cybersecurity certifications, which cover both product security and secure development life-cycle requirements, helping our customers meet the compliance requirements of secure industrial network design.


You can also find the EDS-4008-4P-2GT-2GS-LVB, EDS-4008-HV, and EDS-4008-2MST-HV models in the DIN-Rail Ethernet Switches.


You can Buy the MOXA EDS-4008-4P-2GT-2GS-LVB-T Managed Ethernet Switch via inquiring online at a competitive price in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh) and Oman). Enjoy the cost-effective shipping options at a specific time in your location.

switch and hub : Interface
Number of ports8 Ports
10/100Mb RJ45 (Megabit) PortsNo
10/100/1000Mb RJ45 (Gigabit) PortsYes : 2 Ports
100Mb Fiber optic multi mode (Megabit) PortsNo
100Mb Fiber optic single mode (Megabit) PortsNo
100Mb SFP Fiber optic (Megabit) PortsNo
1000Mb SFP Fiber optic (Gigabit) PortsYes : 2 ports
10/100Mb (Megabit) POE PortsYes : 4 ports
10/100/1000Mb (Gigabit) POE PortsNo
Other portsYes : 1 x RS-232 Console Port (8-pin RJ45 connector), 1 x USB Port (Type A connector), 1 x Alarm Contact Channel, 1 x Digital Input Channel (+13 to +30 V for state 1, -30 to +3 V for state 0, Max. input current: 8 mA)
switch and hub : Features and capabilities
BackupYes : ABC-02 and ABC-03
switch and hub : LED Indicators
LED Per PortYes
switch and hub : Power Requirements
Input Current12/48 VDC, 7.46/4.27 A or 24 VDC, 7.26 A
Power Input Plugin ( Redundant )Yes
Input Voltage12/24/48 VDC
Operating Voltage12 to 57 VDC (> 52 VDC for PoE+ output recommended)
Power ConsumptionWithout PoE: 15.84 W, With PoE: Max. 180 W for total PD power consumption @ 48 VDC input; Max. 150 W for total PD power consumption @ 24 VDC input; Max. 62 W for total PD power consumption @ 12 VDC input
switch and hub : General
Fan / FanlessFanless
MTBF870,865 hours
switch and hub : Switch specifications
Most forwarding speed-
Network working layersLayer 2
Switch typeManaged
Port AggregationYes
switch and hub : Physical Characteristics
Dimensions55 x 140 x 122.5 mm (2.2 x 5.51 x 4.82 in)
HousingMetal
InstallationDIN-rail mounting, Wall mounting (with optional kit)
Operating Temperature-40 to 75°C (-40 to 167°F)
Operation Humidity5% to %95 non-condensing
Standards and CertificationsIndustrial Cybersecurity: IEC 62443-4-1, IEC 62443-4-2; Safety: UL 61010-2-201, EN 62368-1 (LVD); EMC: EN 55032/35, EN 61000-6-2/-6-4; EMI: CISPR 32, FCC Part 15B Class A; EMS: IEC 61000-4-2 ESD: Contact: 8 kV; Air: 15 kV, IEC 61000-4-3 RS: 80 MHz to 1 GHz: 20 V/m, IEC 61000-4-4 EFT: Power: 4 kV; Signal: 4 kV, IEC 61000-4-5 Surge: Power: 4 kV; Signal: 4 kV, IEC 61000-4-6 CS: 10 V, IEC 61000-4-8 PFMF; Maritime: DNV, ABS, NK, LR; Vibration: IEC 60068-2-6; Shock: IEC 60068-2-27; Freefall: IEC 60068-2-32; Railway: EN 50121-4; Traffic Control: NEMA TS2; Power Substation: IEC 61850-3, IEEE 1613 Class 1; Hazardous Locations: ATEX, IECEx, Class I Division 2; IP40; Telcordia SR332
Storage Temperature-40 to 85°C (-40 to 185°F)
Weight840 g (1.85 lb)
switch and hub : Standards and protocols
Protocols and work standardsEtherNet/IP, Modbus TCP, PROFINET IO Device, STP, RSTP, Turbo Ring v2, Turbo Chain, Ring Coupling, Dual-Homing, Link Aggregation, MSTP, MRP, IPv4/IPv6, TCP/IP, UDP, ICMP, ARP, RARP, TFTP, DNS, NTP Client, DHCP Server, DHCP Client, 802.1X, QoS, HTTPS, HTTP, Telnet, SMTP, SNMPv1/v2c/v3, RMON, Syslog
Protocols and management standardsIPv4/IPv6, Flow control, Back Pressure Flow Control, DHCP Server/Client, ARP, RARP, LLDP, Fiber check, Port Mirroring (SPAN, RSPAN), Linkup Delay, SMTP, SNMP Trap, SNMP Inform, SNMPv1/v2c/v3, RMON, TFTP, SFTP, HTTP, HTTPS, Telnet, Syslog, Private MIB, GMRP, GVRP, GARP, 802.1Q VLAN, IGMP Snooping v1/v2/v3, IGMP Querier
switch and hub : Package Checklist
Hardware installation guideYes
Power adapterNo
Power cableNo
