These PIANO series units are extraordinarily compact, industrial-grade power supplies that focus on the essential features needed in today’s industrial applications. The excellent cost/performance ratio presents many new and exciting opportunities without compromising quality or reliability.
The mechanically robust housing is made of a high-grade, reinforced molded material, which permits the units to be used in surrounding temperatures up to 70°C. Since typical industrial applications do not require multiple mains inputs, the reduction to a regional input voltage range (AC 200-240V) simplifies the circuitry and has significant advantages for reliability, efficiency, and cost.
The addition of a DC-OK signal makes the unit suitable for many industrial applications such as process, automation, and many other critical applications where preventive function monitoring can help to avoid long downtimes.

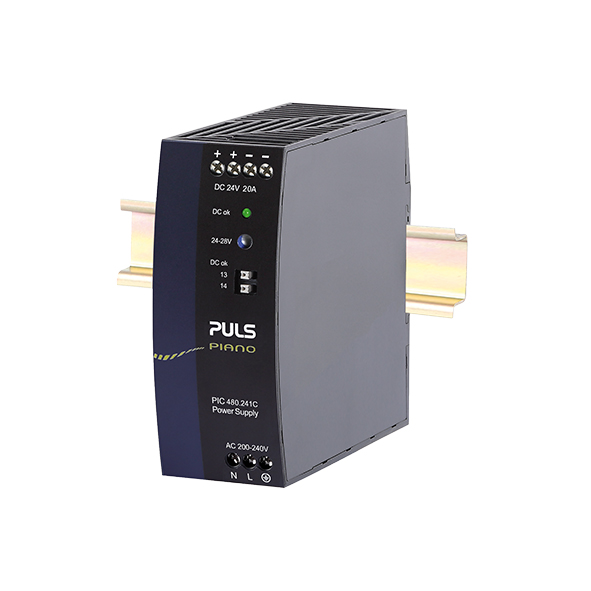

You can place an order for the PULS PIC480.241C DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 200-240V (± 10%) |
| DC-Input Voltage | - |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Power Factor | 0.99 |
| Input Inrush Current Limitation | NTC |
| Peak turn on current | 26A |
| External Input Fuse Recommendation | B - 10A / C - 6A |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 20-17.1A |
| Output Current | 17.1A at 28V, 20A at 24V |
| Output Power | 480W |
| max. Ripple and Noise Voltage | 100mVpp |
| DIN-rail Power supply : General | |
| Derating | 8W/° at >+55°C |
| Efficency, typ. | 95.7% |
| Power Losses, typ. | 21.6W |
| Connection method | Screw terminals |
| DC-OK Signal | yes |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 49mm x 124mm x 124mm |
| Weight | 620g |
| Operating Temperature | -25°C ... +70°C |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
