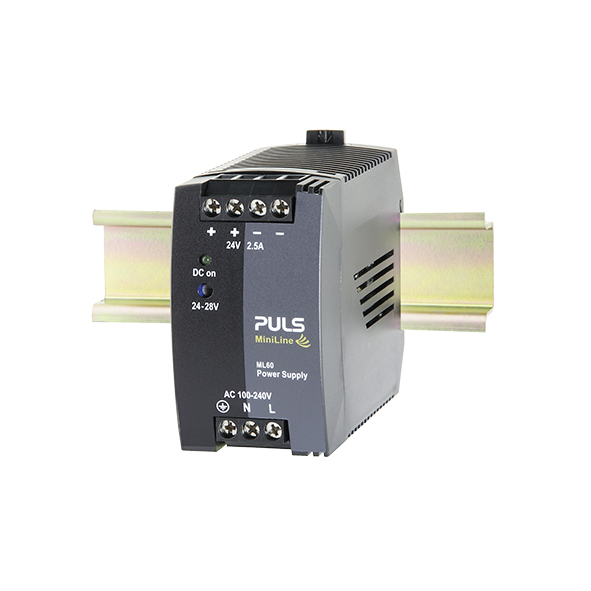

A compact size, light weight, simple mounting onto the DIN-rail and the utilization of only quality components are what makes the MiniLine power supplies so easy to use and install within seconds. A rugged electrical and mechanical design as well as a high immunity against electrical disturbances on the mains provides reliable output power. This offers superior protection for equipment which is connected to the public mains network or is exposed to a critical industrial environment.
The MiniLine series offers output voltages from 5 to 56Vdc and a power rating from 15W to 120W. The specialty of the ML60.122 is the electronic inrush current limitation and the suitability for very low ambient temperatures. The unit is fully specified down to -40°C. The supplementary MiniLine decoupling diode module MLY10.241 allows building of redundant systems or to protect against back-feeding voltages.
You can place an order for the PULS ML60.122 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 100-240V (-15%/+10%) |
| DC-Input Voltage | DC 110V-300V (-20%/+25%) |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Power Factor | 0.44 |
| Input Inrush Current Limitation | active |
| Peak turn on current | 6A/6A |
| External Input Fuse Recommendation | min. B-6A / C-3A |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 12Vdc |
| Adjustment Range | 12-15V |
| Output Current Range | 4.5-3.6A |
| Output Current | 3.6A at 15V, 4.5A at 12V |
| Output Power | 54W |
| max. Ripple and Noise Voltage | 50mVpp |
| DIN-rail Power supply : General | |
| Derating | 1.4W/° at >+60°C |
| Efficency, typ. | 87.6% |
| Power Losses, typ. | 7.6W |
| Connection method | Screw terminals |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 45mm x 75mm x 91mm |
| Weight | 250g |
| Operating Temperature | -40°C ... +70°C |
| MTBF | 1.571.000h |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
