The Dimension CP-Series are cost-optimized power supplies without compromising quality, reliability, and performance. The CP-Series is part of the DIMENSION power supply family.
The CP5.241 power supplies come with three connection terminal options: screw, spring-clamp, or push-in terminals, which are optimized for automated wiring.
The CP5.241-C1 is equipped with conformal coated PC boards preferred for use in harsh environments and the CP4.242 features an enhanced DC input voltage range.
The most outstanding features of these units are small size, high efficiency, the electronic inrush current limitation, active PFC, and the wide operating temperature range. The devices have a power reserve of 20% included, which may even be used continuously at temperatures up to +45°C. Additionally, they can deliver 3 times the nominal output current for 12ms which helps to trip fuses on faulty output branches. High immunity to transients and power surges as well as low electromagnetic emission, a DC-OK signal contact for remote monitoring, and a large international approval package for a variety of applications makes this unit suitable for nearly every situation.

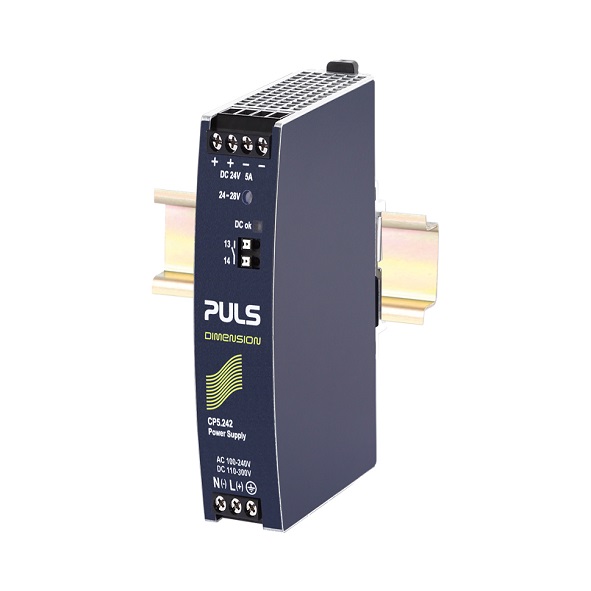

You can place an order for the PULS CP5.242 DIN-rail Power supply online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DIN-rail Power supply : Input Data | |
| AC-Input Voltage | AC 100-240V (-15%/+10%) |
| DC-Input Voltage | DC 110V-300V (± 20%) |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Harmonic Correction | active |
| Power Factor | 0.91 |
| Input Inrush Current Limitation | active |
| Peak turn on current | 5A/6A (B1) |
| External Input Fuse Recommendation | min. B - 6A / C - 6A |
| DIN-rail Power supply : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24-28V |
| Output Current Range | 5-4.3A |
| Output Current | 4.3A at 28V, 5A at 24V |
| Output Power | 120W |
| Power Reserves | 20% Power Boost |
| max. Ripple and Noise Voltage | 50mVpp |
| DIN-rail Power supply : General | |
| Derating | 3W/°C at >60°C |
| Efficency, typ. | 94.3% |
| Power Losses, typ. | 7.3W |
| Connection method | Screw terminals |
| DC-OK Signal | Yes |
| E Classification | eClass 5.1 27049002, eClass 6.x 27049002, eClass 7.x 27049002, eClass 8.0 27049002, eClass 9.0 27040701, ETIM 4.0 EC000599, ETIM 5.0 EC002540, HS Code HS 85044082 |
| DIN-rail Power supply : Physical Characteristics | |
| Mounting | DIN-Rail |
| Dimension | 32mm x 124mm x 102mm |
| Weight | 440g |
| Operating Temperature | -25°C ... +70°C |
| MTBF | 867 000h |
| DIN-rail Power supply : Package Checklist | |
| Packaging Unit | 1pc |
