The Dimension CD-Series offer DIN-rail DC/DC converters in the 92-120W output power range in a very compact housing. These DC/DC converters are allowed to run with a battery or similar sources or can also be used to refresh and stabilize the 24Vdc on the end of long cable runs. The basic units include all the essential basic functions while the -S1 version is equipped with quickconnect spring clamp terminals, a DC-OK-contact which monitors the output and an input-low-relay-contact.
The –L1 version additionally fulfills the NEC Class 2 requirements. All devices except the CD5.241-L1 have a Power Boost of 20% incorporated. This extra power can even be used continuously up to +45°C.

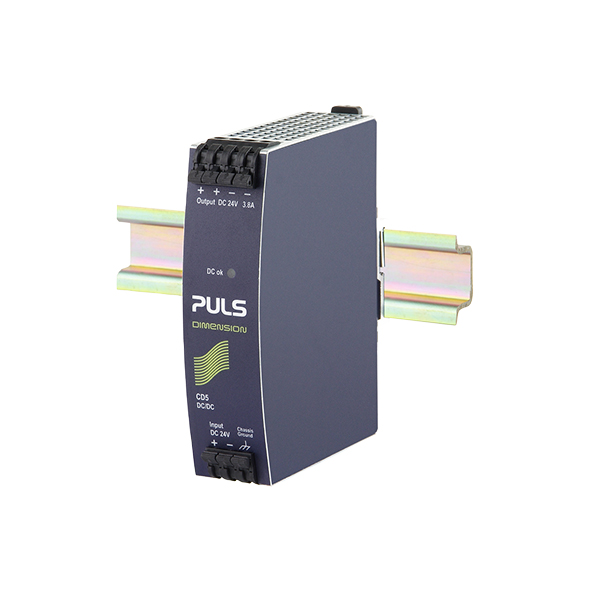

You can place an order for the PULS CD5.241-L1 DC/DC converter online via one of our Middle East branches (Dubai/ Oman/Saudi Arabia) and get it delivered at a low cost at a specific time.
| DC/DC converter : Input Data | |
| DC-Input Voltage | DC 24V (-40%/+35%) |
| EN61000-3-2(PFC-Norm) | fulfilled |
| Input Inrush Current Limitation | active |
| DC/DC converter : Output Data | |
| nominal Voltage | 24Vdc |
| Adjustment Range | 24 |
| Output Current Range | 3.8A |
| Output Current | 3.8A at 24V |
| Output Power | 92W |
| max. Ripple and Noise Voltage | 50mVpp |
| DC/DC converter : Physical Characteristics | |
| Dimension | 32mm x 124mm x 102mm |
| Weight | 425g |
| Mounting | DIN-Rail |
| Operating Temperature | -25°C ... +70°C |
| DC/DC converter : General | |
| Derating | >+60W/° |
| Efficency, typ. | 90.5% |
| Power Losses, typ. | 9.7W |
| MTBF | 1.178.000h |
| Connection method | Spring-clamp terminals |
| E Classification | eClass 5.1 27242213, eClass 6.x 27049005, eClass 7.x 27049005, eClass 8.0 27210901, eClass 9.0 27210901, ETIM 4.0 EC002542, ETIM 5.0 EC002046, HS Code HS 85043121 |
| DC/DC converter : Package Checklist | |
| Packaging Unit | 1pc |
