Operating Temperature (-40 to 80°C)
Relative Humidity (5 to 95% non-condensing).png)

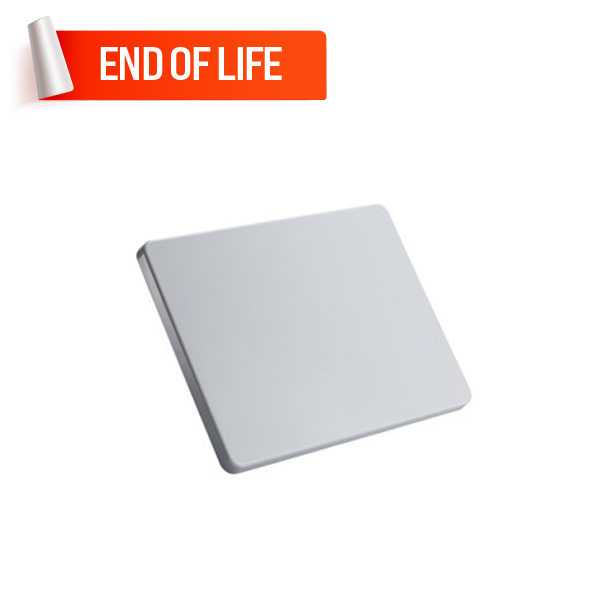

IP protection (IP65)The ANT-WSB-PNF-18 is a lightweight compact dual-band high-gain directional panel antenna with a waterproof N-type connector. The antenna provides a gain of 18 dB at 2.4 GHz. The IP65-rated housing, pole-mounting support, and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.
End of Life Product - Replacement Available
Please note that the ANT-WSB-PNF-18 Series has been phased
out, and replaced by the ANT-WSB-PNF-12-02 Series.
You can Buy the MOXA ANT-WSB-PNF-18 WLAN Antenna via inquiring online at competitive prices in the Middle East (UAE (Dubai), KSA (Al Khobar, Riyadh), and Oman). Enjoy the cost-effective shipping options at a specific time in your location.
| Antenna : Antenna Characteristics | |
| Frequency | 2.4 to 2.5 GHz |
| Antenna Type | Directional, Panel |
| Antenna Gain | 18 dBi |
| Connector | N-type (female) |
| Impedance | 50 ohms |
| HPBW/Horizontal | 30° |
| HPBW/Vertical | 20° |
| Polarization | Linear |
| Power Handling | 15 W (max.) |
| V.S.W.R. | 1:1.5 max. |
| Antenna : Physical Characteristics | |
| Dimensions | 270 x 205 x 15 mm (10.63 x 8.07 x 0.59 in) |
| Operating Temperature | -40 to 80°C (-40 to 176°F) |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Length | - |
| Cable Length | - |
| Weight | 310 g (0.68 lb) |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| Housing | PC and ABS |
| Installation | Pole mount |
| IP Rating | IP65 |
