Operating Temperature (-40 to 80°C)
Relative Humidity (5 to 95% non-condensing).png)

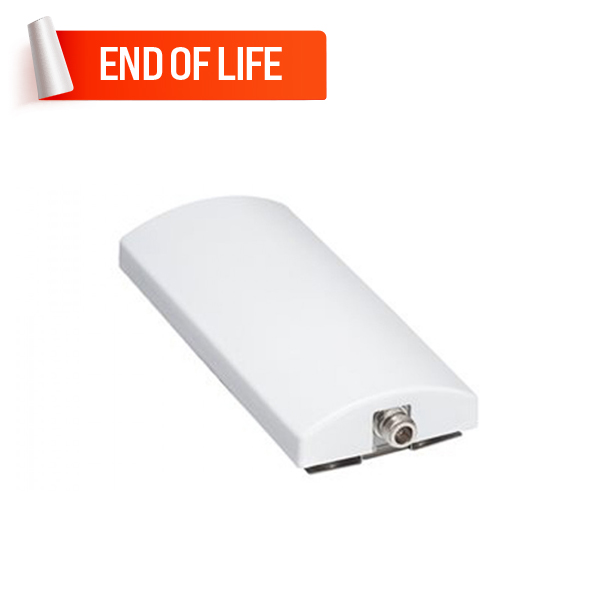

IP protection (IP65)The ANT-WSB-PNF-12 is a lightweight compact dual-band high-gain directional panel antenna with a waterproof N-type connector. The antenna provides a gain of 12 dB at 2.4 GHz. The IP65-rated housing, pole-mounting support, and a wide operating temperature range of -40 to 80°C make it suitable for outdoor use.
End of Life Product - Replacement Available
Please note that the ANT-WSB-PNF-12 Series has been phased
out, and replaced by the ANT-WSB-PNF-12-02 Series.
You
can explore our wide range of products and enquire about the MOXA ANT-WSB-PNF-12 WLAN Antenna for your
industrial automation needs. Our sales experts will pave the way to buy at the
lowest price in Dubai, UAE, Saudi
Arabia, Oman, and the Middle East.
| Antenna : Antenna Characteristics | |
| Frequency | 2.4 to 2.5 GHz |
| Antenna Type | Directional, Panel |
| Antenna Gain | 12 dBi |
| Connector | N-type (female) |
| Impedance | 50 ohms |
| HPBW/Horizontal | 50° |
| HPBW/Vertical | 30° |
| Polarization | Linear |
| Power Handling | 10 W (max.) |
| V.S.W.R. | 1:1.5 max. |
| Antenna : Physical Characteristics | |
| Dimensions | 214 x 94 x 30 mm (8.43 x 3.7 x 1.18 in) |
| Operating Temperature | -40 to 80°C (-40 to 176°F) |
| Storage Temperature | -40 to 80°C (-40 to 176°F) |
| Length | - |
| Cable Length | - |
| Weight | 560 g (1.23 lb), including antenna holder |
| Ambient Relative Humidity | 5 to 95% (30°C, non-condensing) |
| Housing | PVC |
| Installation | Pole mount |
| IP Rating | IP65 |
